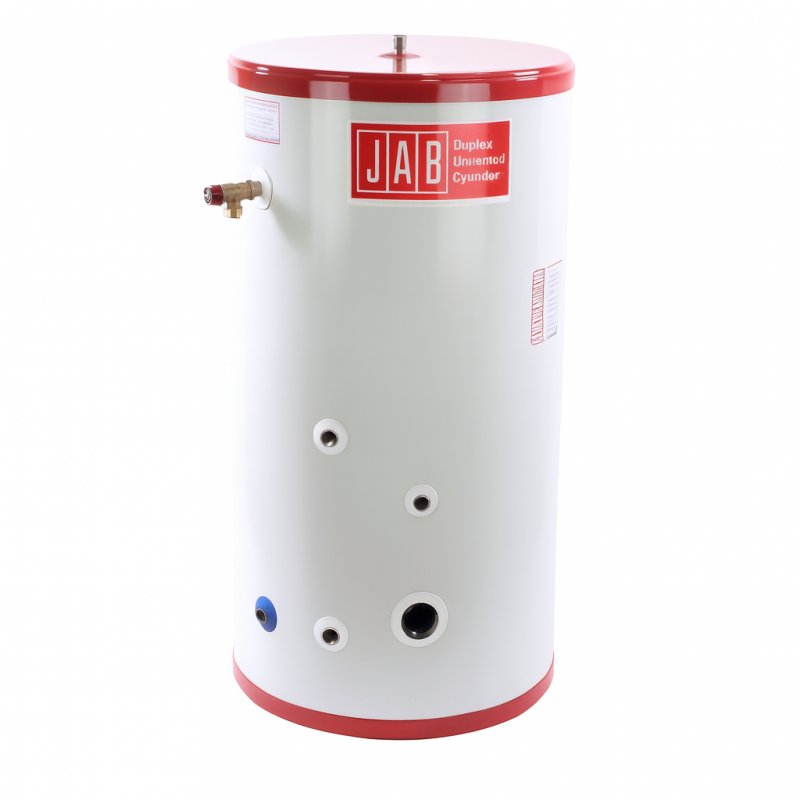

JAB DUC 2 170L Direct Unvented S/S Cylinder
The JAB DUC 2 170L Direct Unvented Cylinder is a reliable and efficient hot water storage solution designed for households that want the benefits of mains-pressure hot water without relying on a boiler.
With a 170-Litre capacity, it's ideal for small to medium-sized homes, providing a consistent supply of powerful hot water for taps, showers, and appliances.
Designed with installation in mind, allowing most existing airing cupboards to be used. The ideal choice for the replacement of standard copper cylinders.
Applications
- Suitable for family homes with average hot water usage
- Typical Use: 3–4 people, 1–2 bathrooms.
- Apartments or flats where space is limited but mains-pressure hot water is needed
- Properties without a central heating system (all electric homes)
- Backup or supplementary hot water storage alongside other systems.
- Renovations and upgrades where a mains-pressure hot water solution is required
Key Features & Benefits
- 170-Litre Capacity - Suited for family homes with average hot water usage
- Direct Heating - Fitted with an immersion heater to heat the stored water directly, making it independent of a boiler
- Unvented System - Provides mains-pressure hot water for improved flow rates and taps, and showers
- Compact Design - Space-saving cylinder ideal for cupboards, lofts, or utility rooms
- Durable Build - Manufactured from high-quality, corrosion-resistant materials for long-lasting performance.
- Efficient Insulation - factory-applied foam insulation reduces heat loss and energy use
- Safe and Reliable - Built-in safety controls, thermostatic regulation, and pressure relief for peace of mind
- Simple Installation - Straightforward to set up with minimal maintenance requirements.
- 25-Year Warranty - Including One Year On-Site Warranty
- U.K. Manufactured
How it works
Being a direct cylinder, the JAB DUC 2 170L uses an immersion heater to heat the water stored inside. Connected to the mains supply, it delivers pressurised hot water directly to taps and showers without the need for a cold water tank. This makes it an excellent choice for properties without a central heating boiler or where additional hot water storage is required.
The unvented design means water is supplied at mains pressure, offering a more powerful flow compared to traditional vented cylinders.
Specifications
| Product Code | JD2170D |
| Nominal Capacity (L) | 170 |
| Height (mm) | 1200 |
| Diameter Ø (mm) | 510 |
| Empty Weight (kg) | 40 |
| Full Weight (kg) | 208 |
| Standing Heat Loss (kWh/24h) | 1.97 |
| Reheat Time from 10°C to 60°C (based on 2 3kW immersion heaters) | 99 |
| Actual Capacity (L) | 168 |
| Standing Loss (W) | 82 |
| Energy Efficiency Class of Model | C |
| Operating Pressure (bar) | 3 |
| Immersion Heater Rating | 2 x 3kW 240v |
| max Incoming Supply Pressure (bar) | 12 |
All direct units are supplied with:
- 2 x 3kw 240v s/p Immersion Heaters
- 1- Expansion Vessel
- 1 x T & P Relief Valve
- 1 x 3 bar Inlet Chain
Specifications
| Product Ref | HWS |
|---|---|
| Volume (litres) | 170 |
| Diameter (mm) | 510 |
| Height (mm) | 1,200 |
| Lead time (working days) | 7 |
