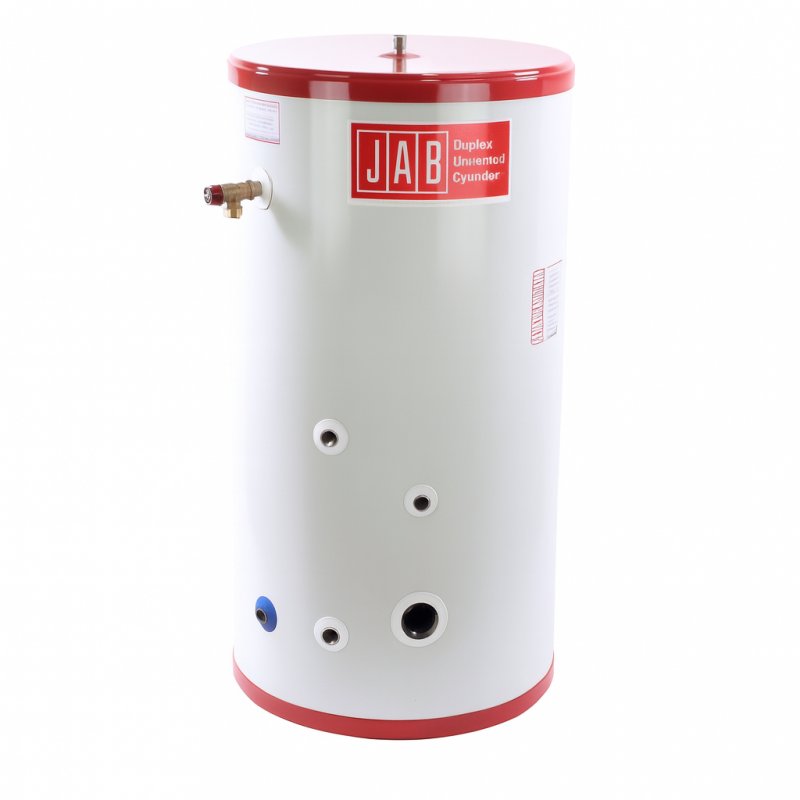

JAB DUC 2 125L Direct Slim Unvented Cylinder
The JAB DUC 2 125L Direct Slim Unvented Cylinder is a space-saving hot water storage solution designed for modern living. Compact in design yet generous in capacity, it's the perfect choice for homes and flats that need reliable mains-pressure hot water but have limited installation space.
With direct electric heating and robust construction, it delivers performance, efficiency, and convenience in a single, compact package.
Designed with installation in mind, allowing most existing airing cupboards to be used. The ideal choice for the replacement of standard copper cylinders.
Applications
- Small homes or apartments needing a bit more capacity
- Typical Use: 2-3 people, 1 bathroom + occasional extra use (kitchen/utility)
- Apartments or flats where space is limited but mains-pressure hot water is needed
- Properties without a central heating system (all electric homes)
- Backup or supplementary hot water storage alongside other systems.
Key Features & Benefits
- 125-Litre Capacity - Suited to small to medium homes with moderate hot water demand
- Slimline Design - Narrow profile makes it ideal for installation in tight spaces such as cupboards or utility areas.
- Direct Heating - Fitted with an immersion heater to heat the stored water directly, making it independent of a boiler
- Unvented System - Provides mains-pressure hot water for improved flow rates at taps and showers
- High-quality construction - Made from corrosion-resistant materials for durability and long service life.
- Efficient Insulation - factory-applied foam insulation reduces heat loss and energy use
- Safe and Reliable - Built-in safety controls, thermostatic regulation, and pressure relief for peace of mind
- Low maintenance - Simple design with minimal upkeep requirements
How it works
Being a direct cylinder, the JAB DUC 2 125L uses an immersion heater to heat the water stored inside. Connected to the mains supply, it delivers pressurised hot water directly to taps and showers without the need for a cold water tank. This makes it an excellent choice for properties without central heating boiler or where additional hot water storage is required.
The unvented design means water is supplied at mains pressure, offering a more powerful flow compared to traditional vented cylinders.
Specifications
| Product Code | JD2125DSLIM |
| Nominal Capacity (L) | 125 |
| Height (mm) | 1050 |
| Diameter Ø (mm) | 470 |
| Reheat From Cold (mins) | 72 |
| Reheat from 70% Draw-off (mins) | 37 |
| ERP band | C |
| Immersions Rating (kW) | 2 x 3 |
| Standing Heat Loss (kWh/24hrs) | 1.48 |
All direct units are supplied with:
- 2 x 3kw 240v s/p Immersion Heaters
- 1- Expansion Vessel
- 1 x T & P Relief Valve
- 1 x 3 bar Inlet Chain
* Please note, the image is for visual purposes only and may be slightly different
Specifications
| Product Ref | HWS |
|---|---|
| Volume (litres) | 125 |
| Diameter (mm) | 470 |
| Height (mm) | 1,050 |
