Fuel Tank Fill Point Cabinet

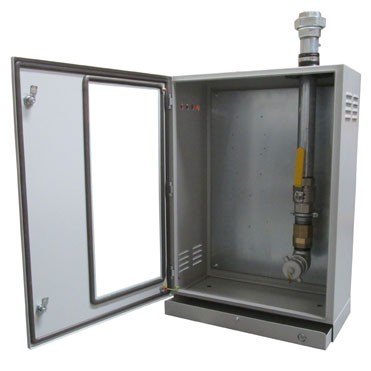

The Fuel Tank Fill Point Cabinet is designed to securely lock away a storage tank's fill point from tampering and theft without making it difficult to view tank level readings. The unit comes complete with top entry 2” fill point, level ball valve for isolation and filler cap to prevent dripping, as well as a removable drip tray with sight glass and easy grip handle, which can be opened even when the cabinet is locked to allow convenient emptying/cleaning at all times.

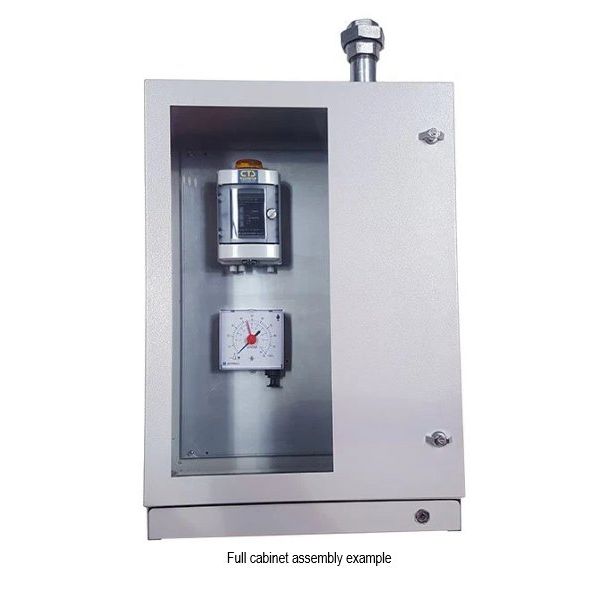

The benefit of the diesel fill point cabinet over alternatives on the market is its partial glass front. If an installed gauge is showing a low fuel level, anyone at the tank can identify that a fuel delivery is required even when the cabinet is closed. On other models with a full metal door this would go undetected until the cabinet was next opened, which could result in unexpectedly running out. As the glass front is only partial, the tank fill point is still secured out of sight and reach behind the lockable cabinet door. It is positioned so that if the glass is broken, no syphoning fitting can be attached.
Please note: Alarms and gauges are to be purchased separately to allow for bespoke configurations. The cabinet back plate has pre-threaded mounting holes for the simple installation of multiple types of alarms and gauges.
Features of the Lockable Fill Point Cabinet:
- Lockable painted sturdy steel cabinet
- Partial glass front to allow viewing of alarms/gauges
- Fill point is secured behind door out of sight & reach
- Top entry 2” fill point & filler cap
- Lever ball valve, check valve & union
- Pre-threaded mounting holes for alarms/gauges
- Removable drip tray with sight glass
- Top & bottom vents to prevent vapour build up
- 4 cable gland cut outs for fixing power cables
- Wall brackets for easy tank mounting
Dimensions: Length 860mm x Width 600mm x Height 300mm
Specifications
| Product Ref | CT |
|---|---|
| Lead time (working days) | 3 |
Delivery Terms
Approx 5-7 Days
The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page. Standard tank deliveries are "kerbside", which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.
Tanks over 2,500L — articulated lorry, customer offload
These tanks are delivered on an articulated vehicle (approximately 16.5m long × 2.6m wide × 3m high) which has no offloading on board. It is the customer's responsibility to offload the tank, which may require a telehandler or forklift.
Curtain-sided vehicles are also used, so please note that if there are obstacles or overhanging branches on the road to the delivery site, the driver may refuse to drive to the location due to the risk of damaging the vehicle. Please let us know about any obstructions before delivery so we can arrange alternative transport.
18-tonne tail-lift HGV
This vehicle is roughly the size of the largest bin lorries — approximately 8.2m long × 2.6m wide × 4m high, and often curtain-sided. If there are overhanging branches, these vehicles will not attempt the route, so a smaller vehicle should be requested.
Tanks are lowered to the ground but not positioned, as this is a kerbside delivery. If a smaller vehicle is required, email sales@fueltankshop.co.uk quoting your order number and name.
HIAB delivery
HIAB delivery is available but must be requested, and carries an additional cost. Email sales@fueltankshop.co.uk quoting your order number and name, and we'll come back to you with a price.
Accessories
Most accessories are delivered within 1–3 working days. Certain products and postcodes may take longer — check the product page for current information. If you need them sooner we can sometimes offer a next-day service; please contact us to discuss. If an item is out of stock we'll advise the expected lead time, and you're free to cancel for a full refund.
Returns Information
Customers may return items within 14 calendar days, as set out in section 7 of our Terms & Conditions.
All items must be returned unused. Refunds cannot be issued for used or previously installed items.
Please be aware that returning a tank can be complicated and expensive, so do check you're ordering the correct item — we strongly suggest checking the dimensions carefully before you buy.
How to return an item
- Complete the form on our returns page with details of your order.
- Once your request is approved, we'll issue a Returns Authorisation Number (RAN) along with instructions on how and where to return your order, and any costs involved.
- Please do not return any goods without this authorisation. Goods cannot be accepted without a valid RAN.
- Returns are not accepted at our Minehead office. Please wait until we contact you before returning anything.
Downloadable Documents
- No documents available for this product.
