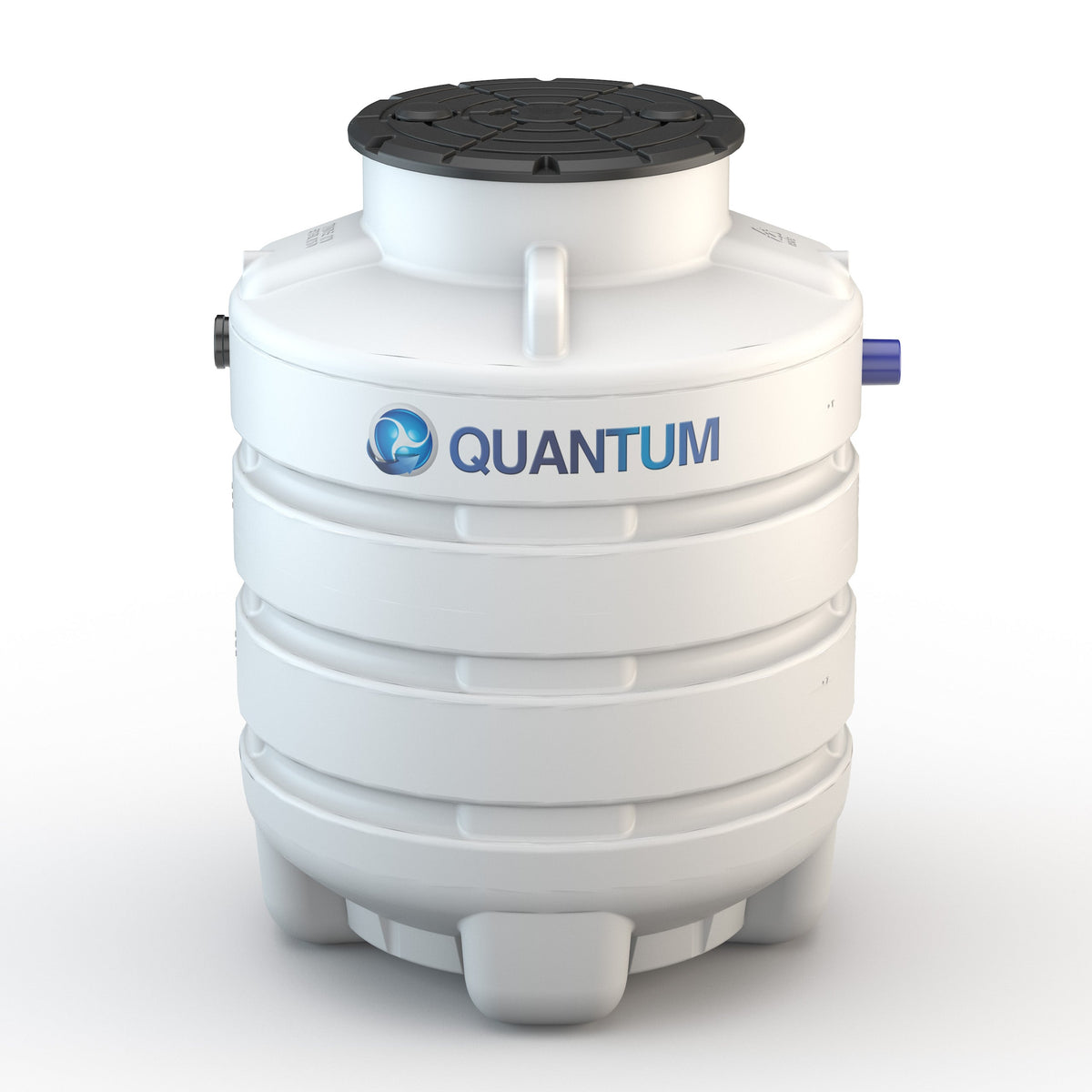

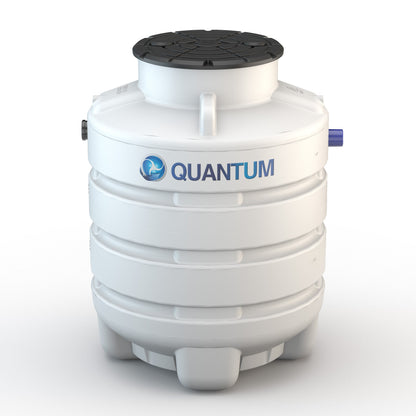

WTE QUANTUM 8-Person Sewage Treatment Plant
The QUANTUM 8 is a compact sewage treatment solution designed for domestic properties with a design population of up to 8 people. It provides additional treatment capacity over the QUANTUM 6 while retaining the space-conscious design that characterises the range.
With a tank diameter of approximately 1,500 mm, the QUANTUM 8 offers a practical balance between treatment capacity and installation footprint. This makes it suitable for larger family homes and other domestic properties where a compact treatment plant is required without moving to a significantly larger tank design.
The plant has a standard installation depth of around 2 metres, with an optional extension turret available where site conditions require a deeper inlet level. This allows the unit to be adapted to suit a wider range of existing drainage configurations.

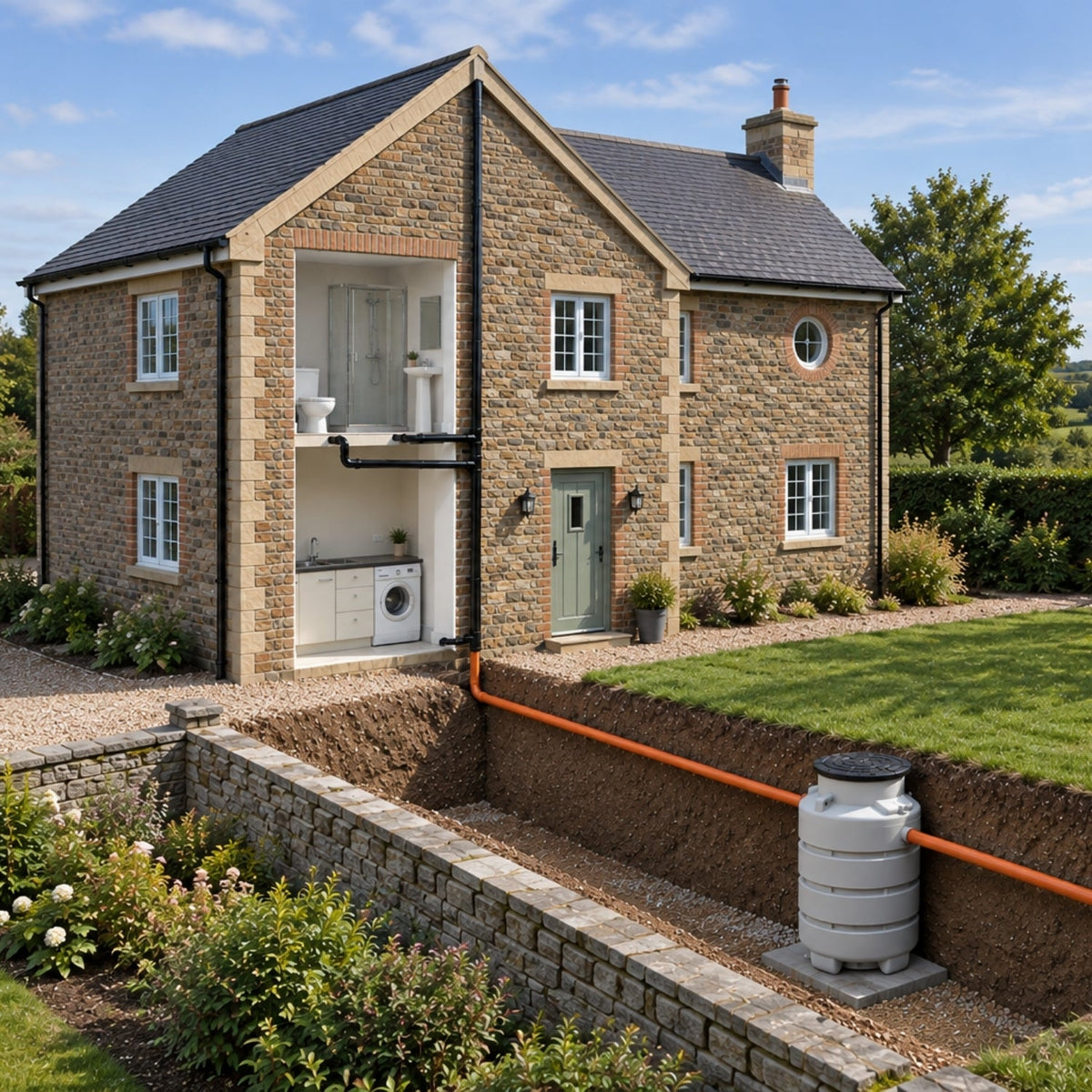

The QUANTUM 8 is an excellent choice for larger family homes, properties with multiple bathrooms, and domestic applications requiring greater treatment capacity.
Key Benefits
- Ultra-Compact tank design - designed for up to 8 people
- Advanced Activated Sludge Process (ASP)
- Suitable for many domestic off-mains applications

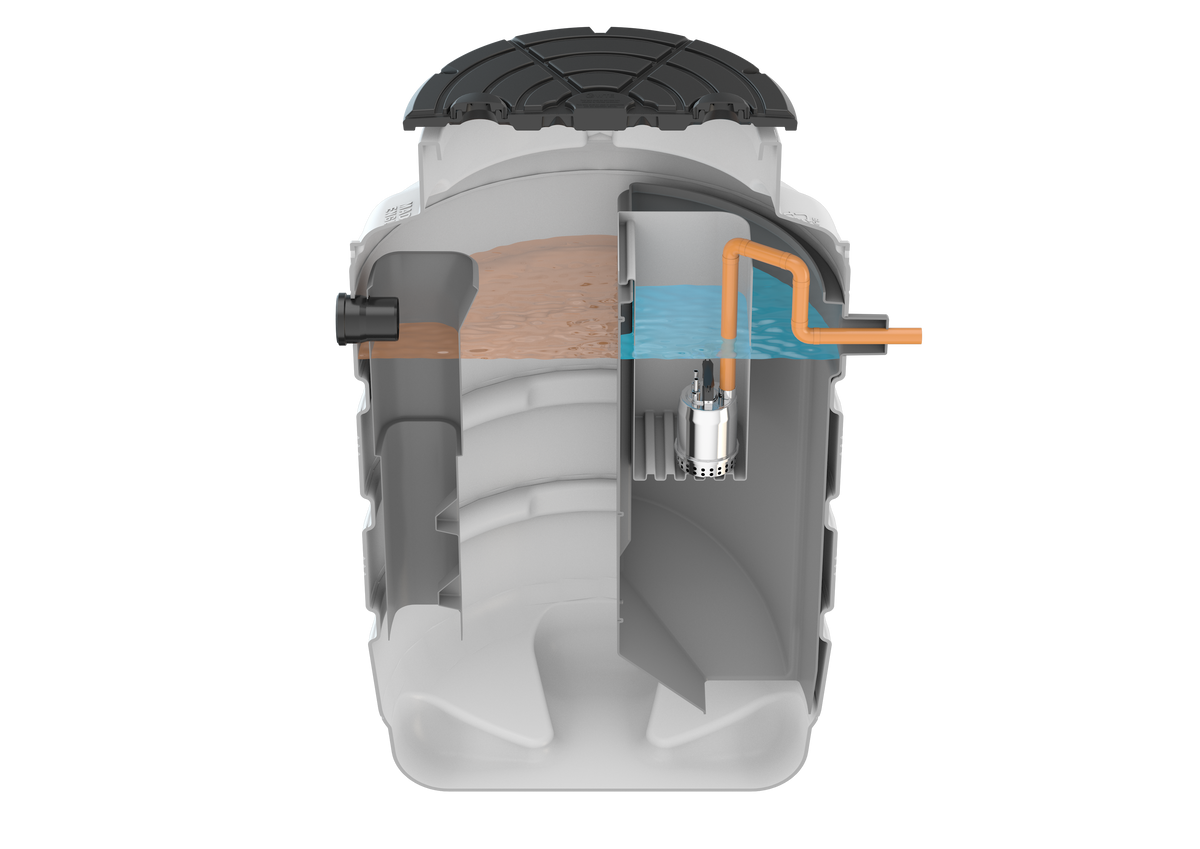

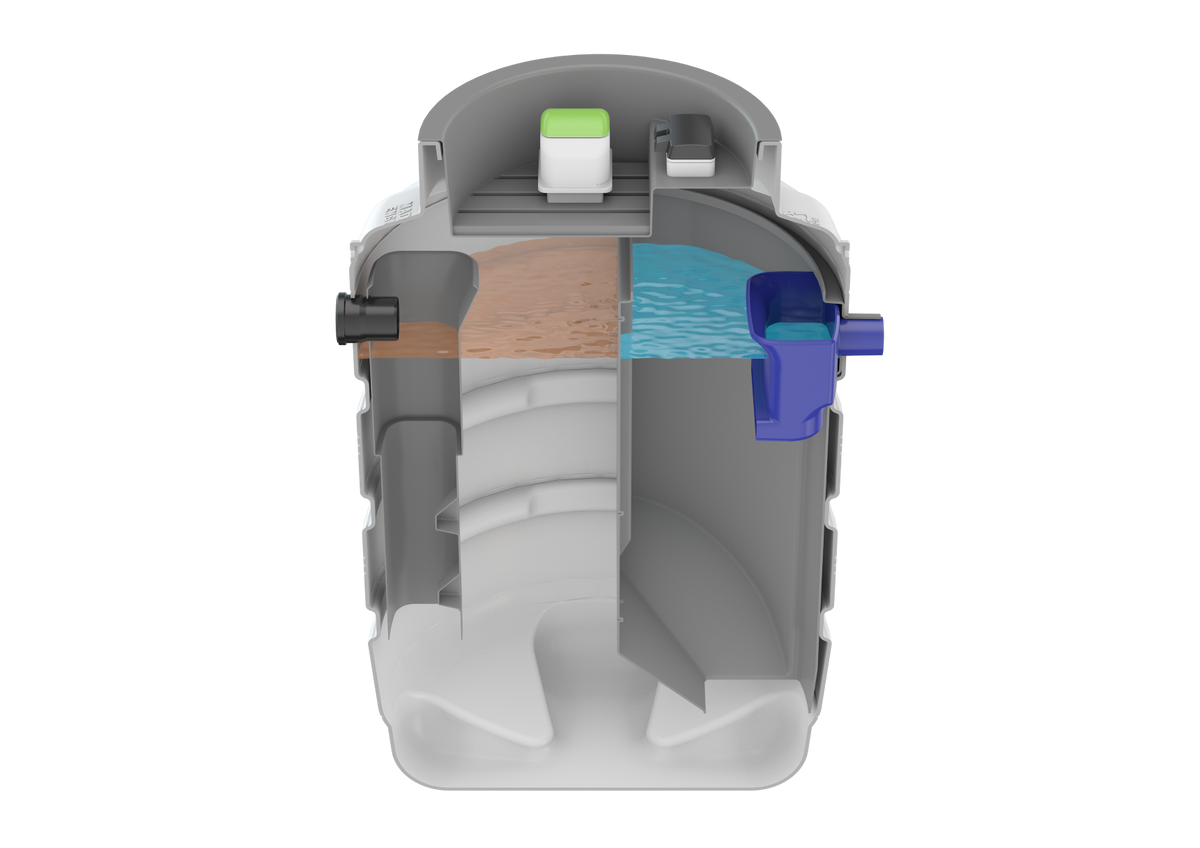

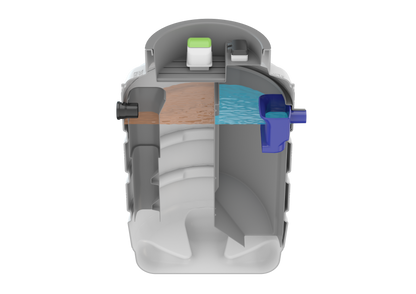

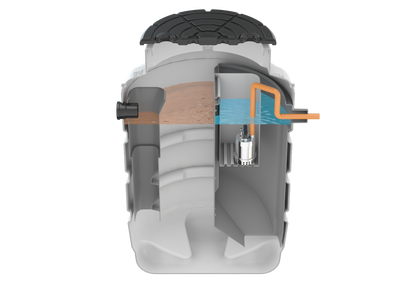

- Gravity or pumped outlet options
- Automatic Floating Sludge Return (FSR)
- No primary settlement tank
- Low electrical consumption
- Quiet operation
- Designed to minimise odour
- One-piece moulded HDPE tank construction
- No internal mechanical equipment
- Adjustable treatment process
- Optional extension turret for deeper inlet levels
- 20-year tank warranty
- Tested and certified to BS EN 12566-3
- Manufactured in the UK
|
Specification |
QUANTUM 8 |
| Design Population | 8 persons |
| Max. Bedrooms | 6 |
| Flow (l) | 1,200 litres/day |
| Organic Load | 480g BOD5/day |
| Ammonium-Nitrogen NH4-N | 64g /day |
| Diameter | 1,500 mm |
| Standard Installation Depth | 2,000 mm |
| Maximum Installation Depth with extension | 2,450 mm |

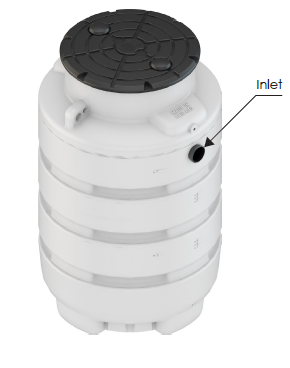

| Standard Inlet Depth | 600 mm |
| Maximum inlet invert with extension | 1,000 mm |

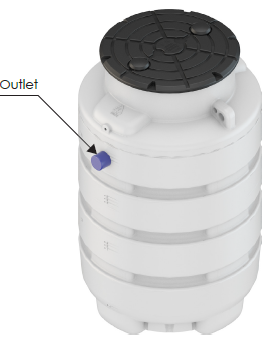

| Standard outlet invert | 600 mm |
| Maximum outlet invert with extension | 1,050 mm |
| Tank material | HDPE |
| Weight | 121 |
| Outlet options | Gravity / Pumped |
| Warranty | 20 Years |
| Standard gravity blower | Approx. 40W |
Specifications
| Product Ref | WTE |
|---|---|
| Diameter (mm) | 1,500 |
| Height (mm) | 2,000 |
| Weight (kg) | 121 |
| Lead time (working days) | 5 |
