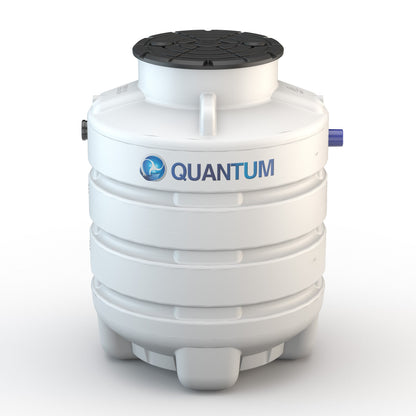

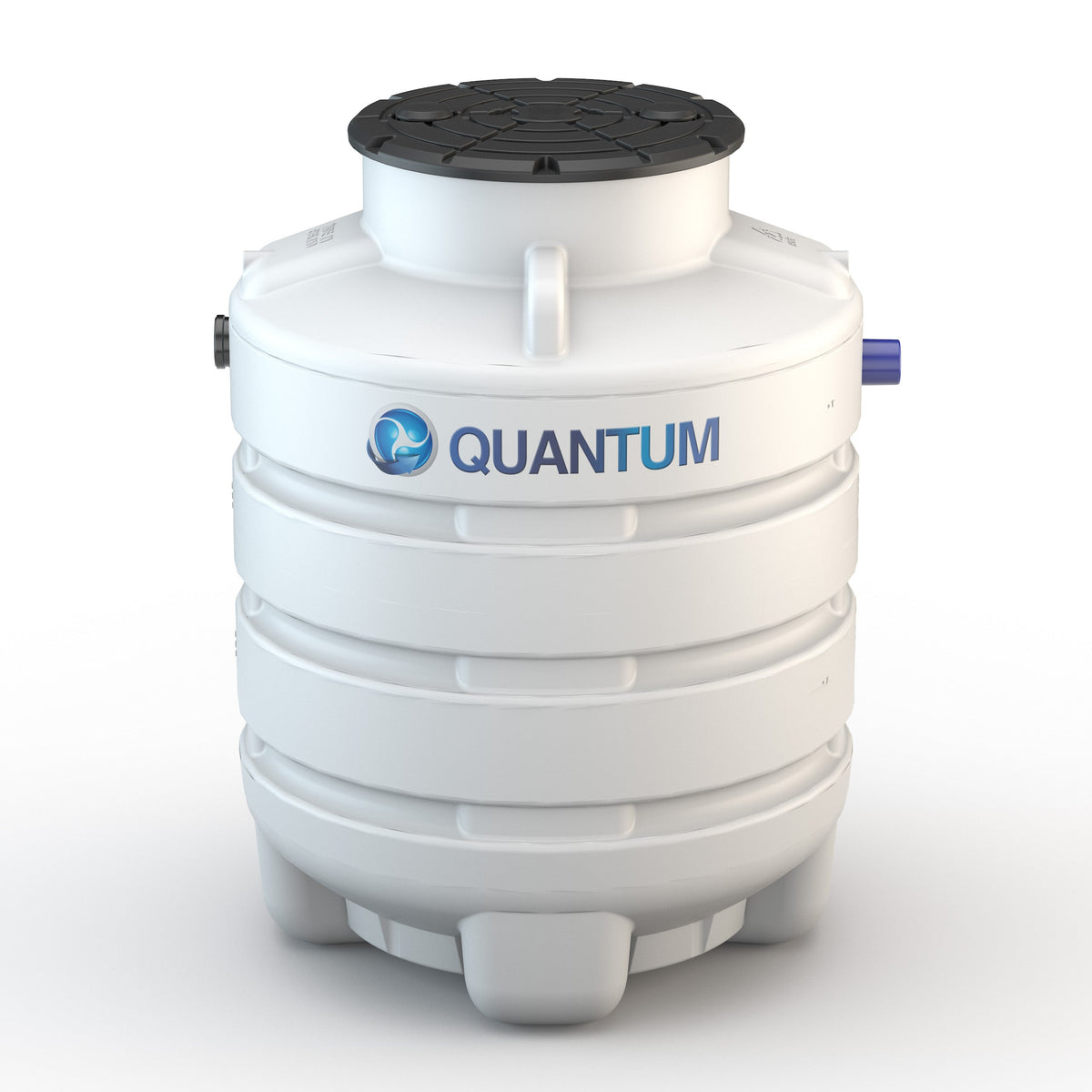

WTE QUANTUM 10-Person Sewage Treatment Plant
The QUANTUM 10 is the highest-capacity model in the standard QUANTUM domestic range, providing sewage treatment for properties with a design population of up to 10 people.
Despite its increased capacity, the QUANTUM 10 retains a relatively compact 1500mm diameter tank, helping to keep the installation footprint manageable. It is therefore well suited to larger households and domestic projects where wastewater treatment capacity is important but available ground space remains a consideration.

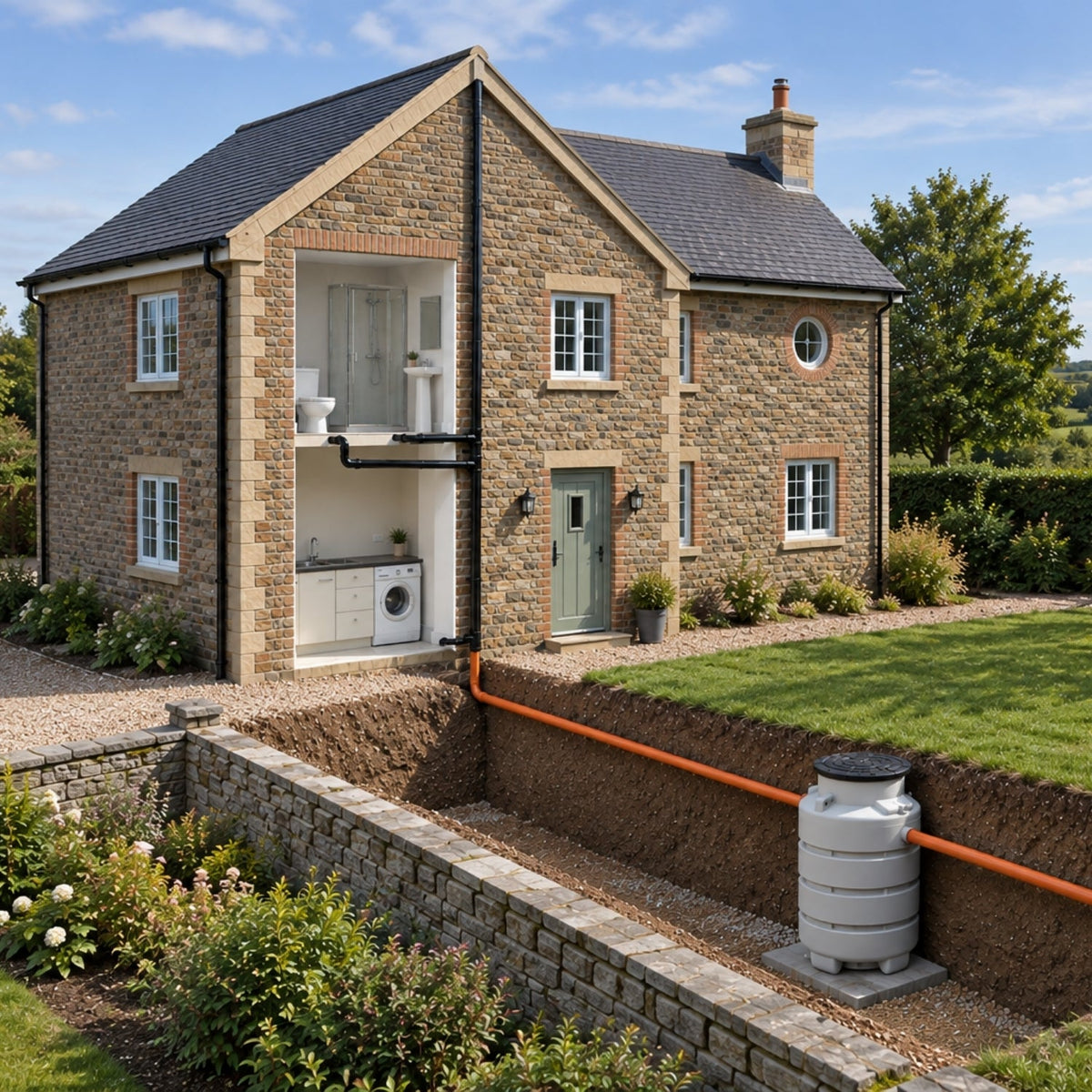

The standard tank installation is approximately 2 metres deep. Where incoming drainage is positioned below the standard inlet level, an optional extension turret can provide additional installation depth and help accommodate the site's existing drainage levels.
Key Benefits
- Ultra-Compact tank design - designed for up to 10 people

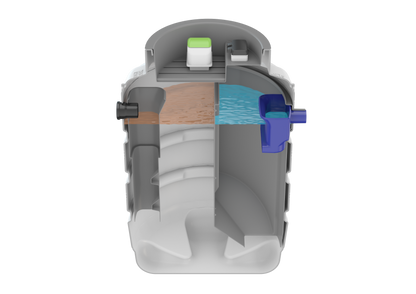

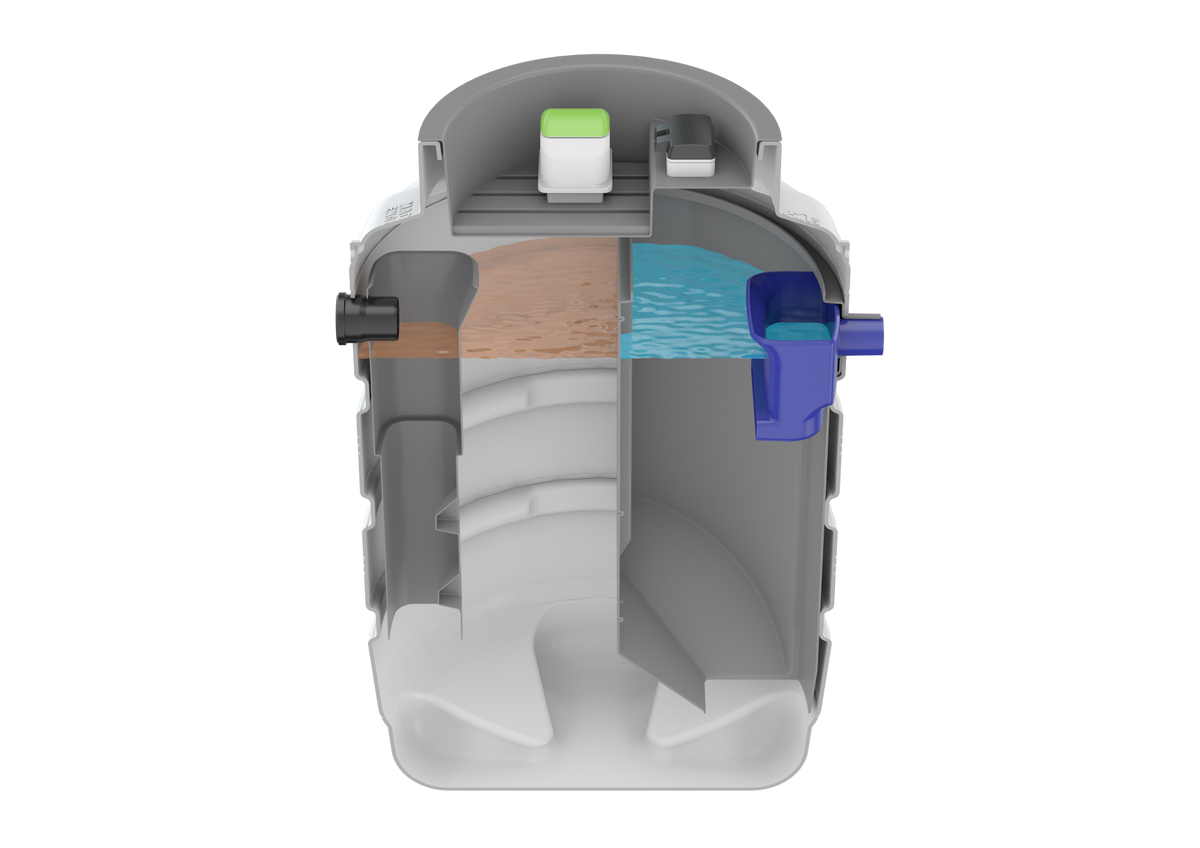

- Advanced Activated Sludge Process (ASP)
- Suitable for many domestic off-mains applications

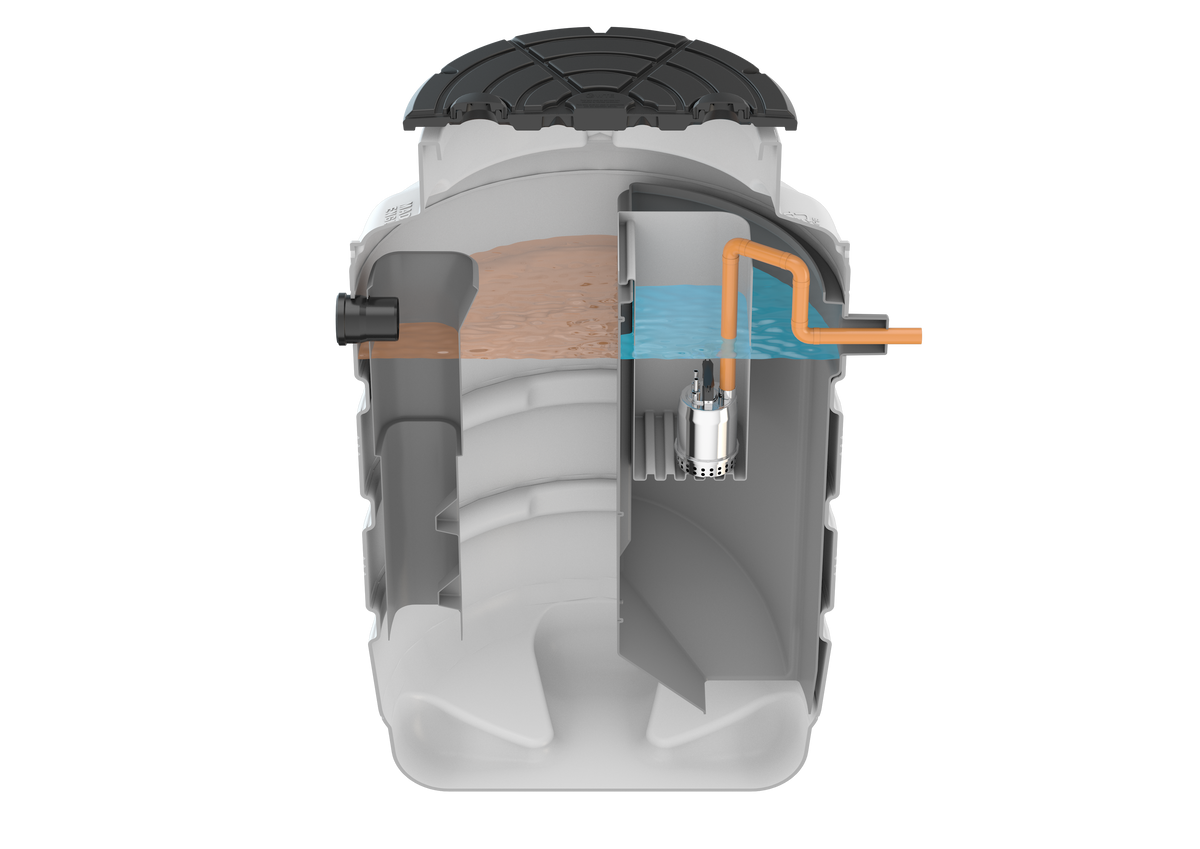

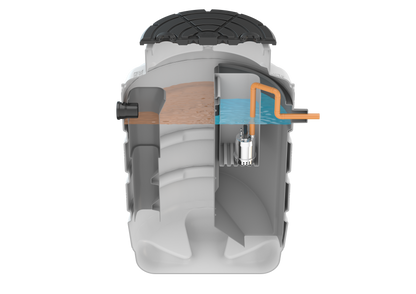

- Gravity or pumped outlet options
- Automatic Floating Sludge Return (FSR)
- No primary settlement tank
- Low electrical consumption
- Quiet operation
- Designed to minimise odour
- One-piece moulded HDPE tank construction
- No internal mechanical equipment
- Adjustable treatment process
- Optional extension turret for deeper inlet levels
- 20-year tank warranty
- Tested and certified to BS EN 12566-3
- Manufactured in the UK
|
Specification |
QUANTUM 10 |
| Design Population | 10 persons |
| Max. Bedroom | 8 |
| Flow (l) | 1,500 litres/day |
| Organic Load | 600g BOD5/day |
| Ammonium-Nitrogen NH4-N | 80g /day |
| Diameter | 1,500 mm |
| Standard Installation Depth | 2,000 mm |
| Maximum Installation Depth with extension | 2,450 mm |

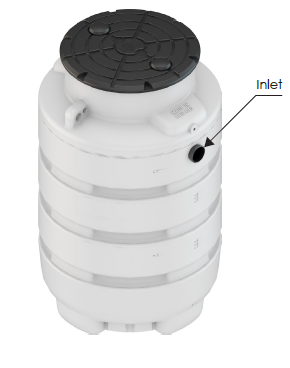

| Standard Inlet Depth | 550 mm |
| Maximum inlet invert with extension | 1,000 mm |

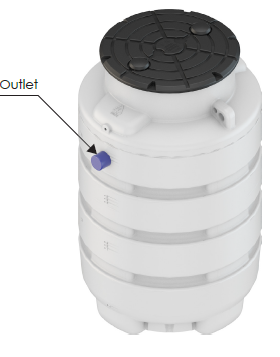

| Standard outlet invert | 600 mm |
| Maximum outlet invert with extension | 1,050 mm |
| Tank material | HDPE |
| Weight | 121 kg |
| Outlet options | Gravity / Pumped |
| Warranty | 20 Years |
| Standard gravity blower | Approx. 40W |
Specifications
| Product Ref | WTE |
|---|---|
| Diameter (mm) | 1,500 |
| Height (mm) | 2,000 |
| Weight (kg) | 121 |
| Lead time (working days) | 5 |
