PRODUCT REF · 50TCG

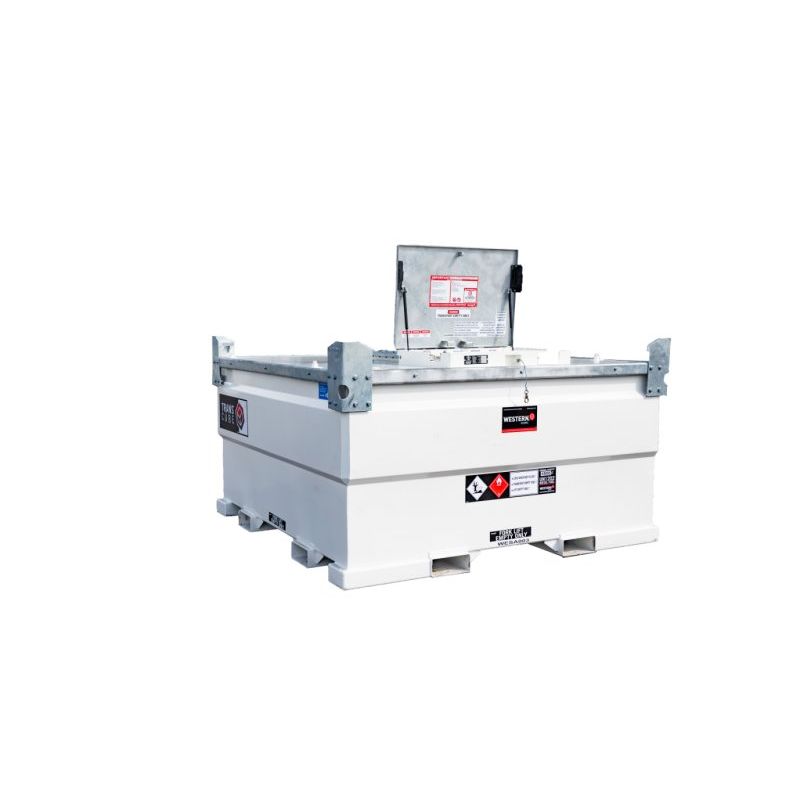

Western Transcube Global Standby 4330 Litre Diesel Tank
Western Transcube Global Standby 4330 Litre Diesel Tank
- Diesel
- Gas Oil
- HVO
- Steel
- Bunded
- 3 Year Guarantee
Estimate delivery costs
Your postcode lets us show accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it isn't stored or shared.
Couldn't load pickup availability
Western Transcube Standby 4330 Litre Static Diesel Tank
The Western Transcube Standby 4330 Litre is fully bunded in steel to ensure environmental compliance with Pollution Prevention Guidelines (PPG2).
All of the flexibility and features of the TransCube Global, but in a larger capacity. The TransCube Standby range is for stationary use only and is ideal for static auxiliary applications
Transcube Standby also has 3 sets of ports meaning you can run 3 generators and pump diesel all at the same time. Access manhole allows easy maintenance and inspection of the inner tank
We have a range of pump options for the Western Transcubes including:
- 12v pump kit including 4m delivery hose and manual nozzle
- K2 hand pump kit with 4m delivery hose and manual nozzle
- 5m feed & return hose assemblies for connecting to a generator and available in 3/4", 1/2" and 3/8" Q/R couplers
- There are are also other options available, including 24v pumps, 240v pumps, 110v pumps, digital flow meters and filters. Please enquire for details.
Key Benefits of Western Transcube Standby:
- Easily stacked 2 high full or 3 high empty to reduce storage space requirements.
- Access manhole for maintenance and inspection of inner tank.
- Full load lifting eyes and forklift pockets
- Lockable equipment cabinet. Equipment and ports are secure and spills are contained. Secure hose access enables fuelling while cabinet is locked
- Ability to supply fuel for up to 3 generators and refuel plant machinery all at the same time.
- Sized to stack inside shipping containers and across truck beds providing economical transportation.
- Protective galvanized framework preventing damage to tank, paintwork and decals.
- Removable inner tank for cleaning, maintenance and inspection
Features
- 3” Fill Point
- 2” Fill Point
- Gauge
- Pressure Vacuum Vent
- Breather Vent :
- 1 x ¾” Pump Feed
- 1 x ½” Generator Feed & Return
- 4 x 1½” Sockets
- Inspection Manhole
- Pump Bracket
Applications and Uses
Onsite Fuel Supply
Easily refuel machinery on site when needed and cut back on fuel delivery waiting times.
Generator and Auxiliary Equipment
With the ability to quickly and efficiently connect to 3 diesel powered pieces of equipment and refuel equipment via pump at the same time.
| Model | 50TCG |
| Capacity - Nominal | 4558 Litres |
| Capacity - Safe Fill (95%) | 4330 Litres |
| Dimensions (L x W x H) | 2300mm x 2300mm x 1320mm |
| Weight - Empty | 1680 kg |
| Weight - Full | 6600 kg |
| Design Approvals | UL142, CAN/ULC-S601, BS799-5 |
Pumps Explained
12V Pump
Electric fuel pump for dispensing diesel.
- 12v Pump, 4 m cable c/w battery clips
- Heavy duty 3/4'' 4 m delvery hose
- 1.2 m suction hose
- Bypass
- Mechanical flow meter
- 3/4'' Automatic shut off trigger nozzle
- 45 lpm flow rate
- 30 m duty run-time
Hand Pump
- Manual operation
- Semi Rotary fuel pump
- Suction Hose
- Heavy Duty 3/4'' 4 m Delivery hose
- Manual Operating trigger nozzle
- Continuous duty cycle
Do you need a versatile telemetry system for remote tank monitoring?
Check out the WAPex system, perfect for any size tank and any tank which is transportable, so you can monitor the levels anywhere the tank is located.
Suitable for Agricultural, haulage & logistics, facilities management and FOD.
Click here for more information - WAPex
Specifications
| Product Ref | WT |
|---|---|
| Volume (litres) | 4,330 |
| Length (mm) | 2,300 |
| Width (mm) | 2,300 |
| Height (mm) | 1,320 |
| Weight (kg) | 1,680 |
| Footprint (L+W) | 2300mm + 2300mm |
| Lead time (working days) | 14 |
Delivery Terms
The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page. Standard tank deliveries are "kerbside", which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.
Tanks over 2,500L — articulated lorry, customer offload
These tanks are delivered on an articulated vehicle (approximately 16.5m long × 2.6m wide × 3m high) which has no offloading on board. It is the customer's responsibility to offload the tank, which may require a telehandler or forklift.
Curtain-sided vehicles are also used, so please note that if there are obstacles or overhanging branches on the road to the delivery site, the driver may refuse to drive to the location due to the risk of damaging the vehicle. Please let us know about any obstructions before delivery so we can arrange alternative transport.
18-tonne tail-lift HGV
This vehicle is roughly the size of the largest bin lorries — approximately 8.2m long × 2.6m wide × 4m high, and often curtain-sided. If there are overhanging branches, these vehicles will not attempt the route, so a smaller vehicle should be requested.
Tanks are lowered to the ground but not positioned, as this is a kerbside delivery. If a smaller vehicle is required, email sales@fueltankshop.co.uk quoting your order number and name.
HIAB delivery
HIAB delivery is available but must be requested, and carries an additional cost. Email sales@fueltankshop.co.uk quoting your order number and name, and we'll come back to you with a price.
Accessories
Most accessories are delivered within 1–3 working days. Certain products and postcodes may take longer — check the product page for current information. If you need them sooner we can sometimes offer a next-day service; please contact us to discuss. If an item is out of stock we'll advise the expected lead time, and you're free to cancel for a full refund.
Returns Information
Customers may return items within 14 calendar days, as set out in section 7 of our Terms & Conditions.
All items must be returned unused. Refunds cannot be issued for used or previously installed items.
Please be aware that returning a tank can be complicated and expensive, so do check you're ordering the correct item — we strongly suggest checking the dimensions carefully before you buy.
How to return an item
- Complete the form on our returns page with details of your order.
- Once your request is approved, we'll issue a Returns Authorisation Number (RAN) along with instructions on how and where to return your order, and any costs involved.
- Please do not return any goods without this authorisation. Goods cannot be accepted without a valid RAN.
- Returns are not accepted at our Minehead office. Please wait until we contact you before returning anything.
