Western Transcube Global 10TCG

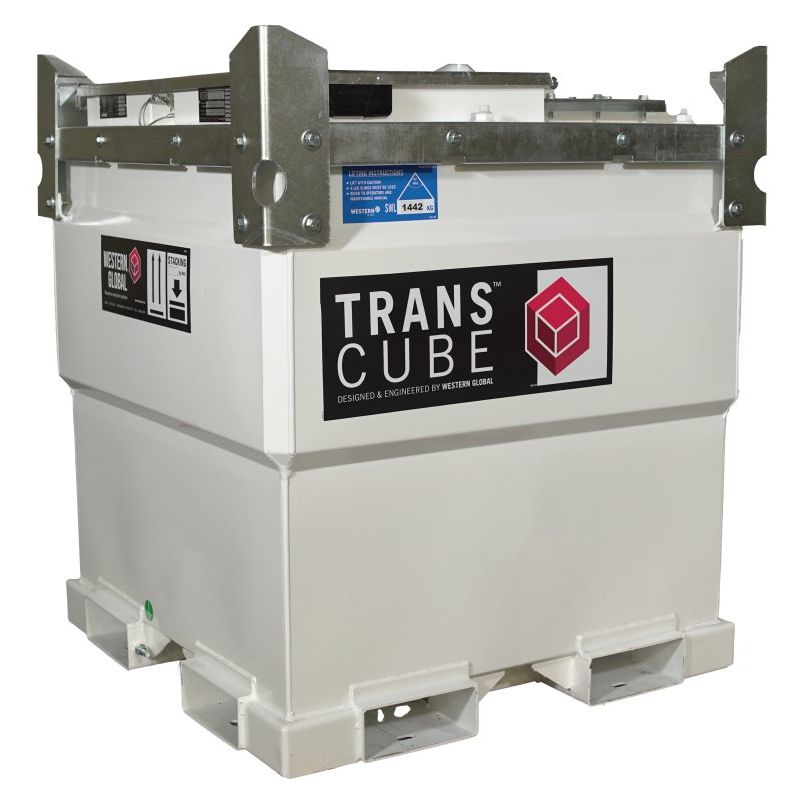

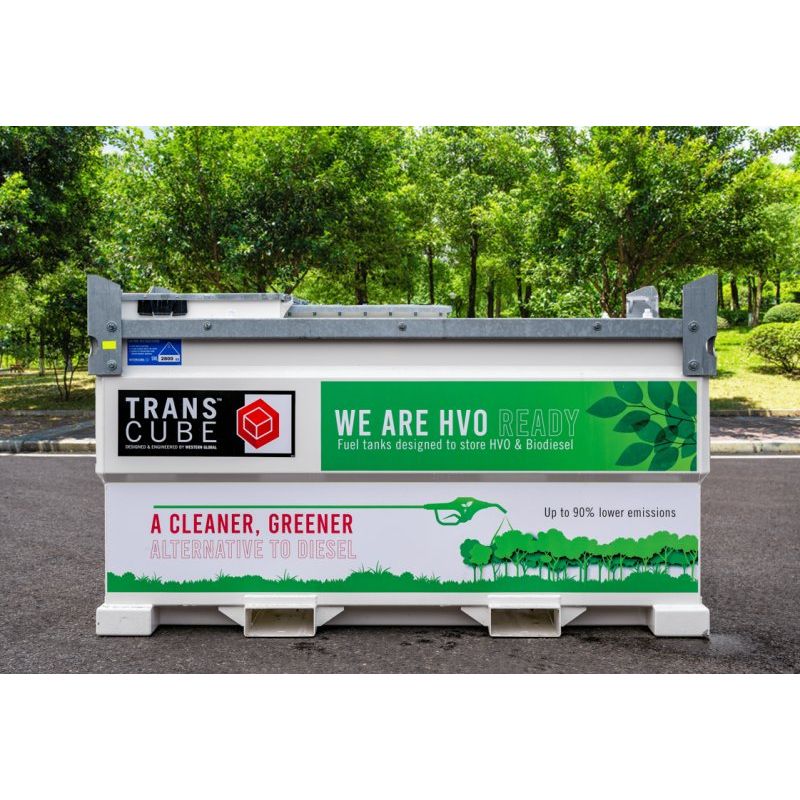

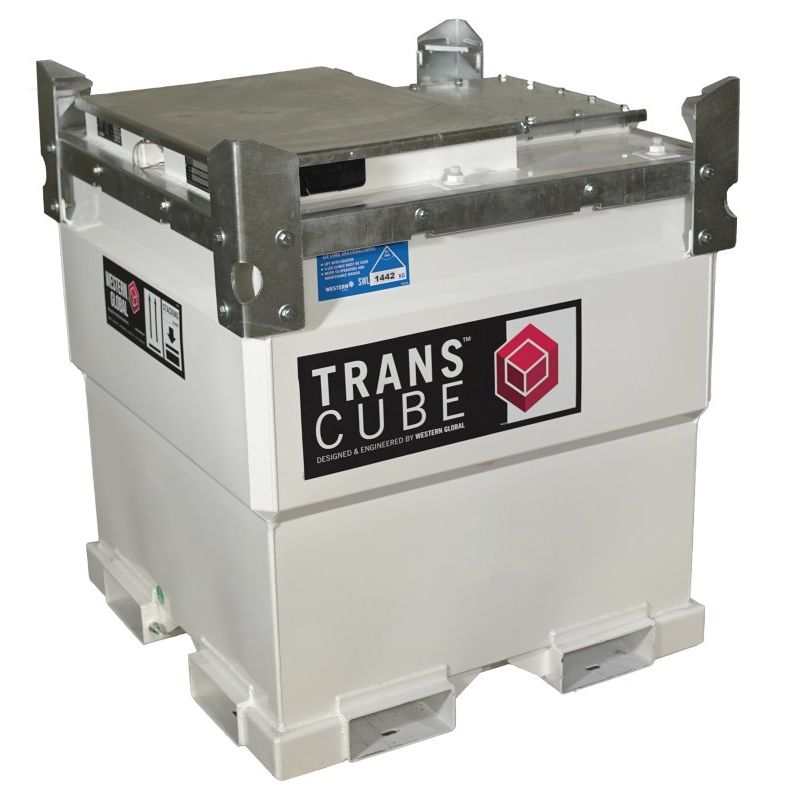

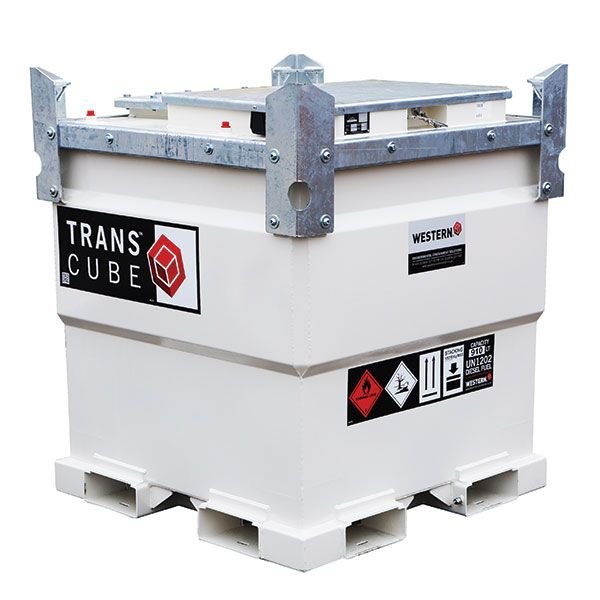

The Western Transcube Global 910 Litre is a fully transportable diesel tank which is approved for transport of diesel fuel under the ADR Regulations. The Transcube Global is fully bunded in steel to ensure environmental compliance with Pollution Prevention Guidelines (PPG2). Transcube Global tanks have a larger cabinet than the Contract versions which provides additional storage for larger pumps. Transcube Globals also have 3 sets of ports meaning you can run 3 generators and pump diesel all at the same time. Access manhole allows easy maintenance and inspection of the inner tank which is rerquired for the ADR certification renewel.
We have a range of pump options for the Western Transcubes including:
- 12v pump kit including 4m delivery hose and manual nozzle
- K2 hand pump kit with 4m delivery hose and manual nozzle
- 5m feed & return hose assemblies for connecting to a generator and available in 3/4", 1/2" and 3/8" Q/R couplers
- There are are also other options available, including 24v pumps, 240v pumps, 110v pumps, digital flow meters and filters. Please enquire for details.
Key Benefits of Western Transcube Global
- 910 litre model can be transported full of diesel without the need for ADR driver training
- Easily stacked 2 high full or 3 high empty to reduce storage space requirements.
- Access manhole for maintenance and inspection of inner tank.
- Full load lifting eyes, forklift pockets and internal baffles designed to allow handling of the TransCube Global full of fuel.

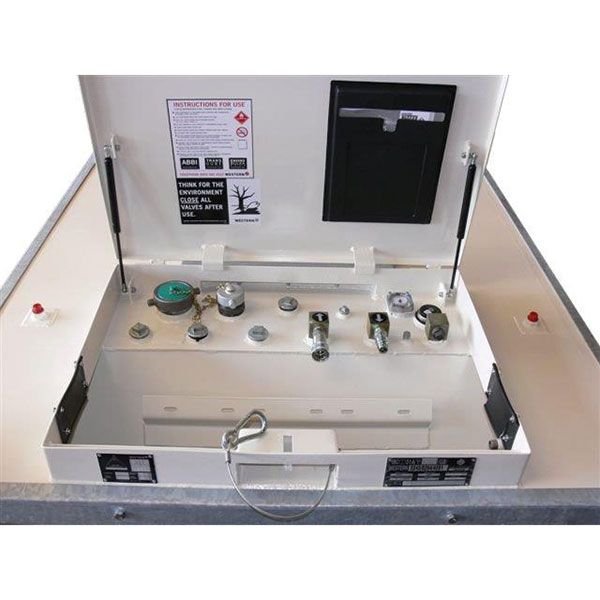

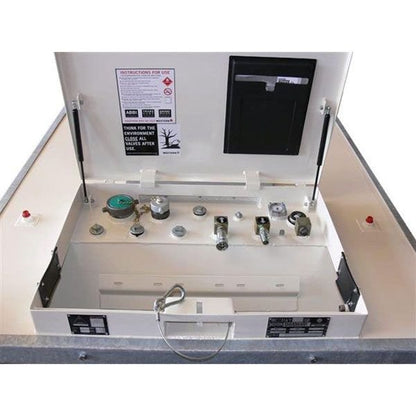

- Secure lockable access hatch to house pumps (electric and hand), and feed and return connections for up to 3 generators.
- Ability to supply fuel for up to 3 generators and refuel plant machinery all at the same time.
- Sized to stack inside shipping containers and across truck beds providing economical transportation.
- Protective galvanised framework preventing damage to tank, paintwork and decals.
- Removable inner tank for cleaning, maintenance and inspection
Features
- 3” Fill Point
- 2” Fill Point
- Gauge
- Pressure Vacuum Vent
- Breather Vent :
- 1 x ¾” Pump Feed
- 1 x ½” Generator Feed & Return
- 4 x 1½” Sockets
- Inspection Manhole
- Pump Bracket
Applications and Uses
Onsite Fuel Supply
Easily refuel machinery on site when needed and cut back on fuel delivery waiting times.
Fuel Transport
Meeting multiple worldwide transport regulations, the TransCube can transport fuel safety anywhere you need it.
Generator and Auxiliary Equipment
With the ability to quickly and efficiently connect to 3 diesel powered pieces of equipment and refuel equipment via pump at the same time.
| Model | 10TCG |
| Capacity - Nominal | 949 Litres |
| Capacity - Safe Fill (95%) | 902 Litres |
| Dimensions (L x W x H) | 1151 x 1151 x 1324 mm |
| Weight - Empty | 540 kg |
| Weight - Full | 1442 kg |
| Design Approvals | UL142, CAN/ULC-S601, UN-IBC, AS-1692 2006, ADG, VLAREM, KIWA |
Pumps Explained
12V Pump
Electric fuel pump for dispensing diesel.
- 12v Pump, 4 m cable c/w battery clips
- Heavy duty 3/4'' 4 m delvery hose
- 1.2 m suction hose
- Bypass
- Mechanical flow meter
- 3/4'' Automatic shut off trigger nozzle
- 45 lpm flow rate
- 30 m duty run-time
Hand Pump
- Manual operation
- Semi Rotary fuel pump
- Suction Hose
- Heavy Duty 3/4'' 4 m Delivery hose
- Manual Operating trigger nozzle
- Continuous duty cycle
Do you need a versatile telemetry system for remote tank monitoring?
Check out the WAPex system, perfect for any size tank and any tank which is transportable, so you can monitor the levels anywhere the tank is located.
Suitable for Agricultural, haulage & logistics, facilities management and FOD.
Click here for more information - WAPex
Specifications
| Product Ref | WT |
|---|---|
| Volume (litres) | 910 |
| Length (mm) | 1,550 |
| Width (mm) | 1,550 |
| Height (mm) | 1,324 |
| Weight (kg) | 514 |
| Footprint (L+W) | 1550mm + 1550mm |
| Lead time (working days) | 14 |
