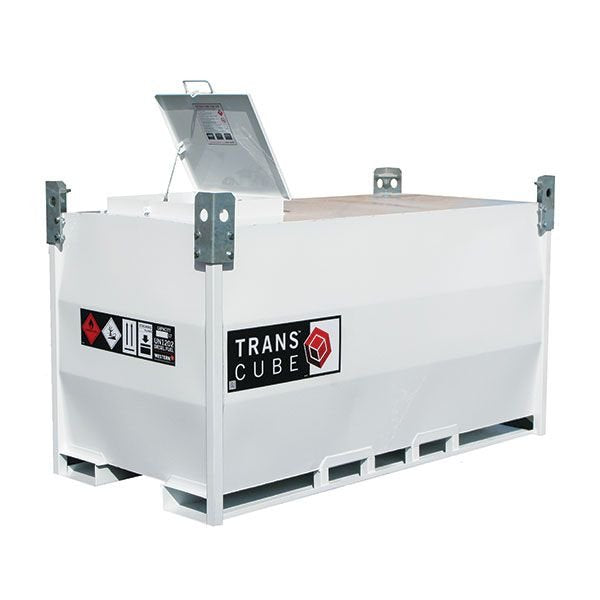

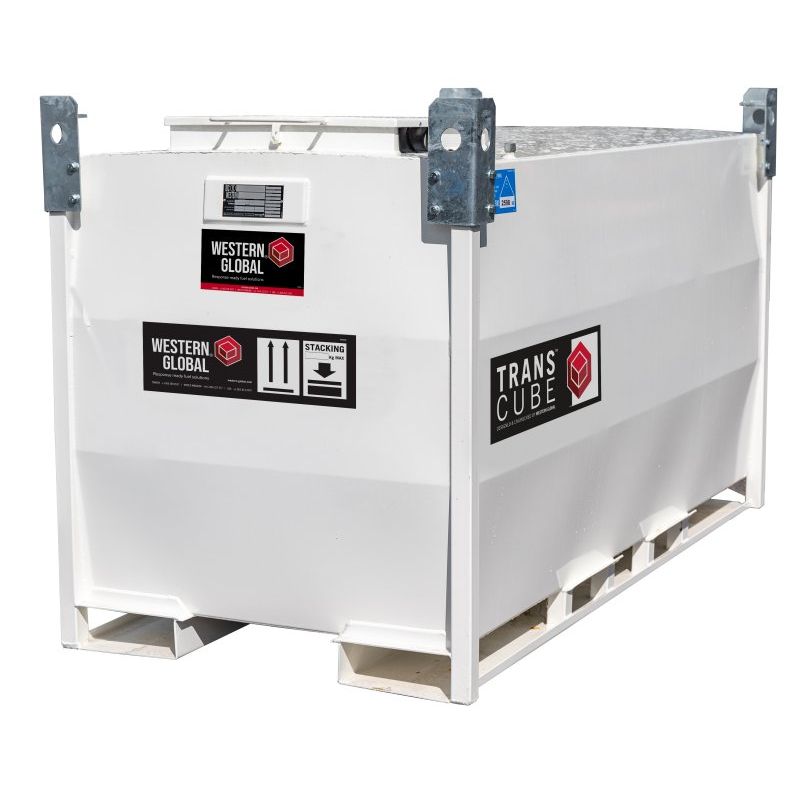

Western Transcube Contract 20TCC
The Western Transcube Contract 2000 Litre is a fully transportable diesel tank which is approved for transport of diesel fuel under the ADR Regulations. The Transcube Contract is fully bunded steel in steel to ensure environmental compliance with Pollution Prevention Guidelines (PPG2).
We have a range of pump options for the Western Transcubes including:
- 12v pump kit including 4m delivery hose and manual nozzle

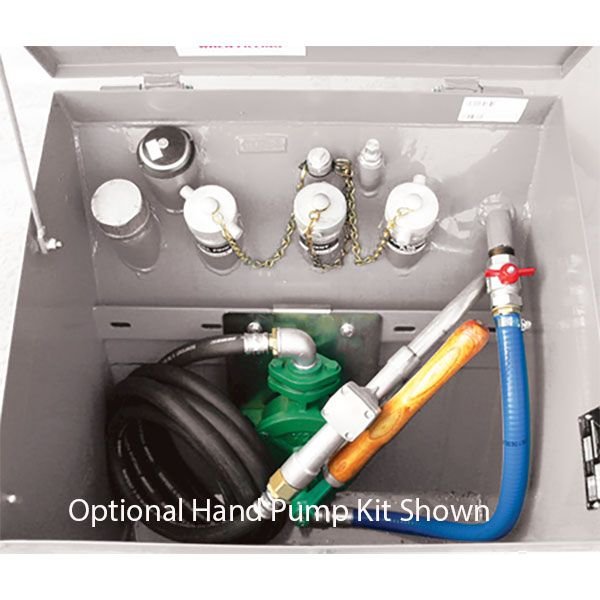

- K2 hand pump kit with 4m delivery hose and manual nozzle
- There are are also other options available, including 24v pumps, 240v pumps, 110v pumps, digital flow meters and filters. Please enquire for details.
Key Benefits of Western Transcubes
- Easily stacked to reduce storage space requirements 2 high full, 3 high empty
- Full load lifting eyes, forklift pockets and internal baffles designed to allow handling of the TransCube Contract full of fuel
- Secure lockable access hatch to house pumps (electric or hand), and feed and return connections for up to 1 generator
- Size to stack inside shipping containers and across truck beds providing econmical transportation
- Protective galvanised stack/lifting corner plates preventing damage to tank paintwork and decals
- 110% bunded - built-in, weather proof secondary containment.
Features
- 1 x 3” Fill Point
- 1 x 2” Vent Fill
- Dipstick Tank Gauge
- Pressure / Vacuum Vent
- Breather Vent
- 1 x 1” Pump & Auxiliary Feed
- 1 x ½” Return
- Pump Bracket
Applications and Uses
Onsite Fuel Supply
Easily refuel machinery on site when needed and cut back on fuel delivery waiting times.
Limited-Access Work Sites
The TransCube can be sagely lifted by crane or forklift and positioned precisely and quickly in sites where they are logistically challenging to get to.
Fuel Transport
Meeting multiple worldwide transport regulations, the TransCube can transport fuel safety anywhere you need it.
| Model | 20TCC |
| Capacity - Nominal | 2000 Litres |
| Capacity - Site Fill (95%) | 1900 Litres |
| Dimensions (L x W x H) | 2300 x 1120 x 1025 mm |
| Weight - Empty | 698 kg |
| Weight - Full | 2598 kg |
| Desgn Approvals | ADR - UN IBC |
Pumps Explained
12V Pump
Electric fuel pump for dispensing diesel.
- 12v Pump, 4 m cable c/w battery clips
- Heavy duty 3/4'' 4 m delvery hose
- 1.2 m suction hose
- Bypass
- Mechanical flow meter
- 3/4'' Automatic shut off trigger nozzle
- 45 lpm flow rate
- 30 m duty run-time
Hand Pump
- Manual operation
- Semi Rotary fuel pump
- Suction Hose
- Heavy Duty 3/4'' 4 m Delivery hose
- Manual Operating trigger nozzle
- Continuous duty cycle
Do you need a versatile telemetry system for remote tank monitoring?
Check out the WAPex system, perfect for any size tank and any tank which is transportable, so you can monitor the levels anywhere the tank is located.
Suitable for Agricultural, haulage & logistics, facilities management and FOD.
Click here for more information - WAPex
Specifications
| Product Ref | WT |
|---|---|
| Volume (litres) | 2,000 |
| Length (mm) | 2,300 |
| Width (mm) | 1,120 |
| Height (mm) | 1,025 |
| Weight (kg) | 698 |
| Lead time (working days) | 14 |
