PRODUCT REF · EBD1200
Western Envirobulka Deluxe 5000 Litre Diesel Dispenser
Western Envirobulka Deluxe 5000 Litre Diesel Dispenser
- Diesel
- Gas Oil
- HVO
- Steel
- Bunded
- 8 Year Warranty
Estimate delivery costs
Your postcode lets us show accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it isn't stored or shared.
Couldn't load pickup availability

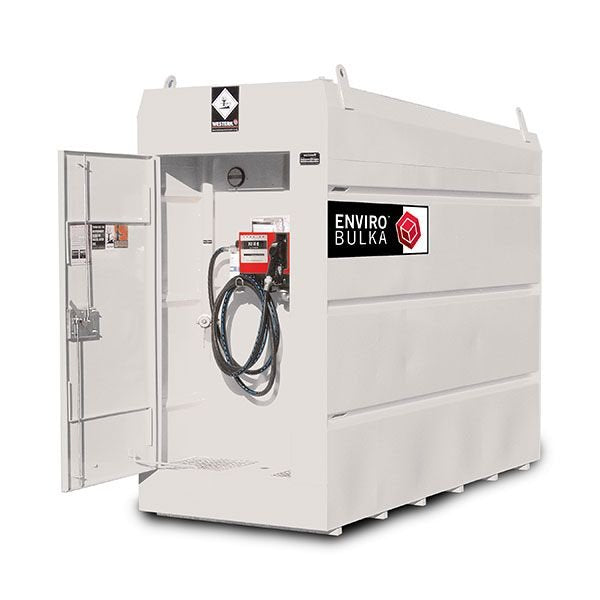

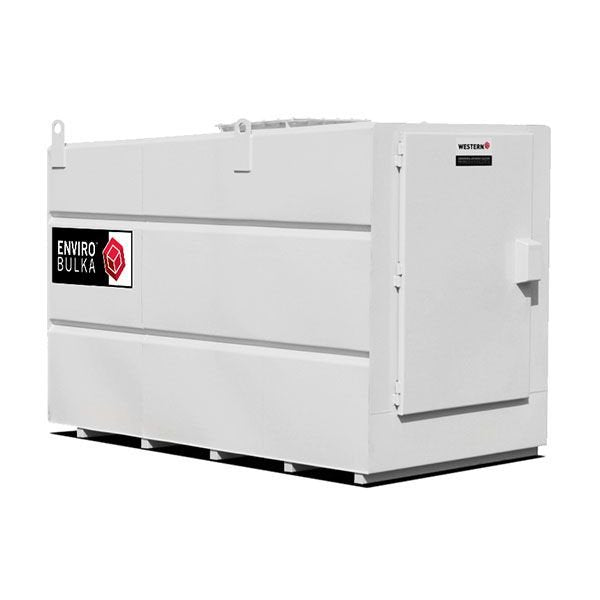

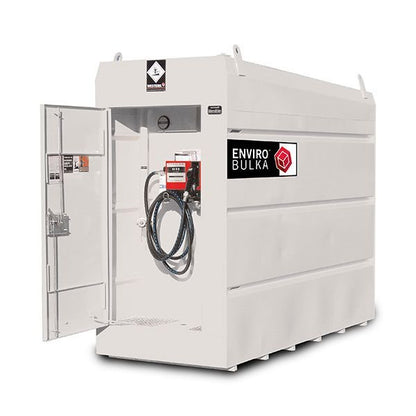

Western Envirobulka Deluxe Static 5000 Litre Diesel Dispenser

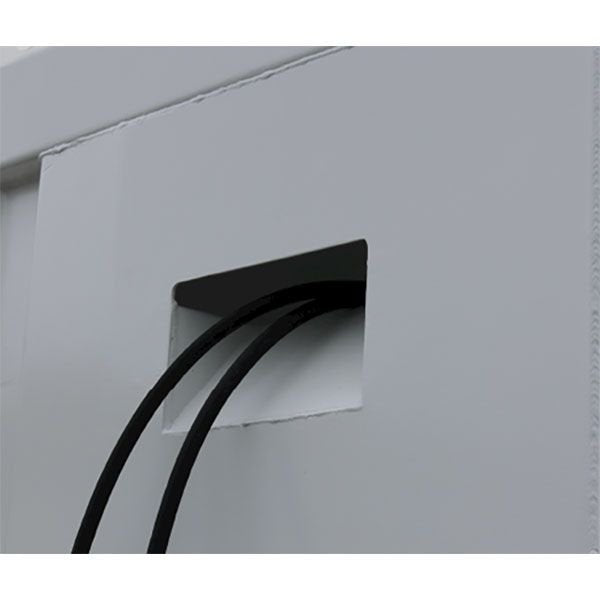

110% bunded fuel storage tank to comply with PPG2 ({Pollution Prevention Guidelines) Regulations. Manufactured to BS799 Part 5- Specification for Oil Storage Tanks. Steel tank enclosed in steel, weatherproof outer bund- robust, durable product providing secure storage. Fitted with lifting eyes and forkliftable base for ease of handling and relocation of tank (empty only). Pump, nozzle, hoses and generator feed & return connections are all housed within a secure lockable bund compartment. Feed & return hoses can be fed through openings enabling generator to be run whilst connections are kept secure in compartment – helps to prevent theft and vandalism. Inspection cover providing access to inner tank for maintenance and inspection. Fitted with lifting eyes and forklift access for ease of handling while empty and relocation of tank. All outlets are top mounted above fuel level helping prevent weep age of fuel. Suction pipe to help remove any fluid in the bund. Optional anti-siphon valve available for extra environmental protection (Part No. V090). 3-Point locking mechanism for additional security. Cabinet drip tray approx. 200 litre capacity with galvanised H/D tread mesh. Bund sensor to detect fluid in bund.
We have a range of pump options for the Western Envirobulkas including:
- 240V pump kit with hose and auto shut off nozzle with options for filters and flow meters
- 110V pump kit with hose and auto shut off nozzle with options for filters and flow meters
- 12v pump kit including 4m delivery hose and manual nozzle with options for filters and flow meters
- K2 hand pump kit with 4m delivery hose and manual nozzle
- There are also other options available, including 24v pumps, 240v pumps, 110v pumps, digital flow meters and filters. Please enquire for details.
Features
- 2” Fill Point
- 2” Vent
- Sight Glass Contents Gauge
- 1” Pump Feed
- Extra 2” Fill Point
- 2x ½” Generator Feed & Return Ports
- 2x Spare 1¼” Ports for additional equipment
- Bund Drain Pipe
- Bund Alarm
- Access Hatch for easy access to inner tank for routine maintenance and cleaning.
- Lifting Eyes and Forklift Pockets for Easy Tank Handling and Relocation when Empty.
- Supplied with Bearers for easy placing in position and moving if required (when empty)
- Removable mesh flooring - to clean the sump from any spills or drips
- High security locking system
- Top mounted fittings to prevent leakage of fuel
- Additional storage - apart from hoses, pumps, reels etc it can also store oil cans and other fuelling equipment.

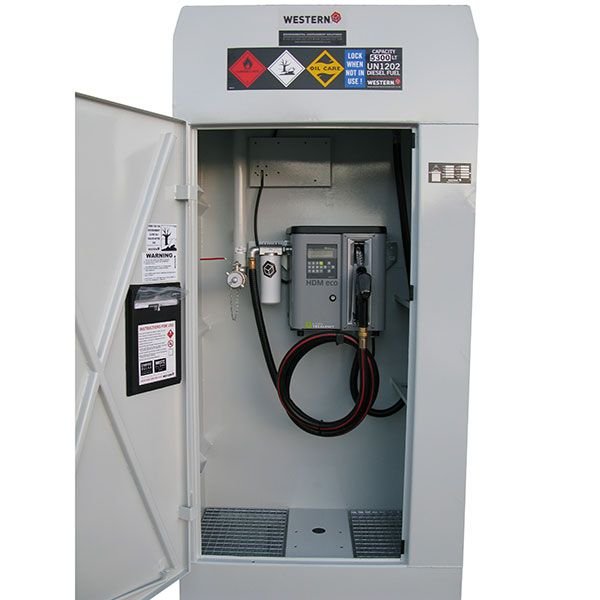

Please note that image showing inside the cabinet has the Tecalemit fuel management system for illustration. This is not included as standard
Uses and Applications
Standby Power Application
The EnviroBulka Deluxe tanks are an ideal solution for large projects that require generator power installations, or other standby applications.
Bulk Fuel Storage
EnviroBulka Deluxe static tanks can be used to refuel vehicles, construction machinery and agricultural equipment efficiently. Ideal for large equipment fleets that require constant fuel storage on site - allowing significant cost savings with purchasing of fuel.
| Model | EBD1200 |
| Capacity - Nominal | 5331 Litres |
| Capacity - Safe Fill (95%) | 5065 Litres |
| Dimensions (L x W x H) | 3044 x 1150 x 2548 mm |
| Cabinet DImensions (L x W x H) | 1134 x 580 x 2144 mm |
| Weight - Empty | 1517 kg |
| Weight - Full | 6582 kg |
| Design Approvals | BS799 Part 5 & to Comply with PPG2 Regulations |
Pumps Explained
12V Pump
Electric fuel pump for dispensing diesel.
- 12v Pump, 4 m cable c/w battery clips
- Heavy duty 3/4'' 4 m deilvery hose
- 1.2 m suction hose
- Bypass
- Mechanical flow meter
- 3/4'' Automatic shut off trigger nozzle
- 45 lpm flow rate
- 30 m duty run-time
Hand Pump
- Manual operation
- Semi Rotary fuel pump
- Suction Hose
- Heavy Duty 3/4'' 4 m Delivery hose
- Manual Operating trigger nozzle
- Continuous duty cycle
240v Pump
Electric fuel pump for dispensing diesel
- 240v pump, 4 m cable c/w battery clips
- Heavy duty 1'' 4 m delivery hose
- 1.2 m suction hose
- Bypass
- 1'' Automatic shut off trigger nozzle
- 80 lpm flow rate
- 30 m duty run-time
110 v Pump
Electric fuel pump for dispensing diesel
- 240v pump, 4 m cable c/w battery clips
- Heavy duty 1'' 4 m delivery hose
- Mechanical Flow Meter
- 1.2 m suction hose
- Bypass
- 1'' Automatic shut off trigger nozzle
- 80 lpm flow rate
- 30 m duty run-time
Specifications
| Product Ref | WT |
|---|---|
| Volume (litres) | 5,000 |
| Length (mm) | 3,044 |
| Width (mm) | 1,150 |
| Height (mm) | 2,548 |
| Weight (kg) | 1,517 |
| Lead time (working days) | 3 |
Delivery Terms
The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page. Standard tank deliveries are "kerbside", which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.
Tanks over 2,500L — articulated lorry, customer offload
These tanks are delivered on an articulated vehicle (approximately 16.5m long × 2.6m wide × 3m high) which has no offloading on board. It is the customer's responsibility to offload the tank, which may require a telehandler or forklift.
Curtain-sided vehicles are also used, so please note that if there are obstacles or overhanging branches on the road to the delivery site, the driver may refuse to drive to the location due to the risk of damaging the vehicle. Please let us know about any obstructions before delivery so we can arrange alternative transport.
18-tonne tail-lift HGV
This vehicle is roughly the size of the largest bin lorries — approximately 8.2m long × 2.6m wide × 4m high, and often curtain-sided. If there are overhanging branches, these vehicles will not attempt the route, so a smaller vehicle should be requested.
Tanks are lowered to the ground but not positioned, as this is a kerbside delivery. If a smaller vehicle is required, email sales@fueltankshop.co.uk quoting your order number and name.
HIAB delivery
HIAB delivery is available but must be requested, and carries an additional cost. Email sales@fueltankshop.co.uk quoting your order number and name, and we'll come back to you with a price.
Accessories
Most accessories are delivered within 1–3 working days. Certain products and postcodes may take longer — check the product page for current information. If you need them sooner we can sometimes offer a next-day service; please contact us to discuss. If an item is out of stock we'll advise the expected lead time, and you're free to cancel for a full refund.
Returns Information
Customers may return items within 14 calendar days, as set out in section 7 of our Terms & Conditions.
All items must be returned unused. Refunds cannot be issued for used or previously installed items.
Please be aware that returning a tank can be complicated and expensive, so do check you're ordering the correct item — we strongly suggest checking the dimensions carefully before you buy.
How to return an item
- Complete the form on our returns page with details of your order.
- Once your request is approved, we'll issue a Returns Authorisation Number (RAN) along with instructions on how and where to return your order, and any costs involved.
- Please do not return any goods without this authorisation. Goods cannot be accepted without a valid RAN.
- Returns are not accepted at our Minehead office. Please wait until we contact you before returning anything.
Downloadable Documents
Talk to a specialist.
Sizing, regulations, installation. Our team has been answering these questions since 2011.
