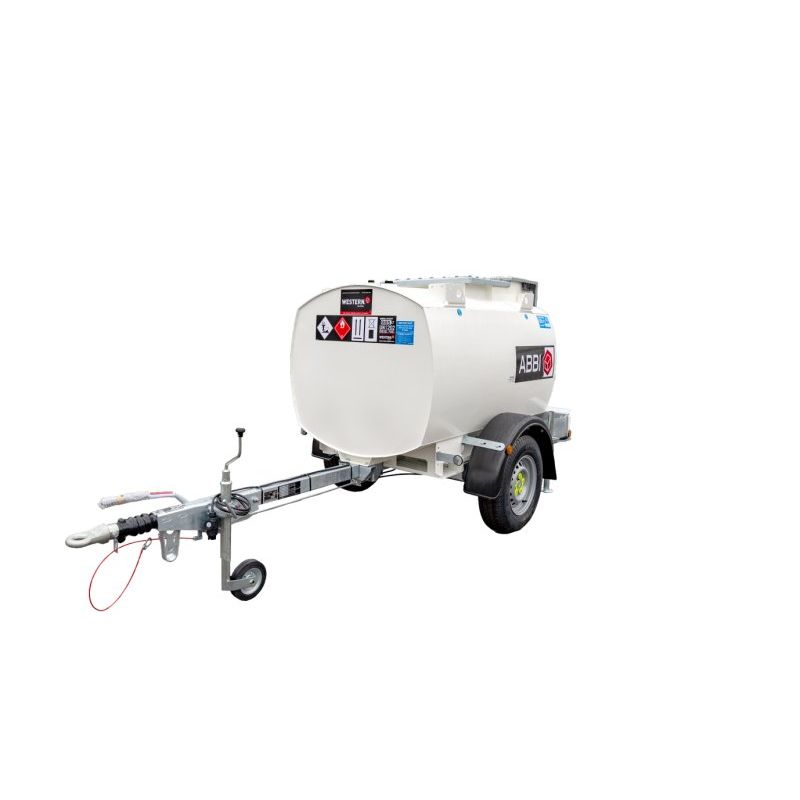

Western ABBI 985 Litre Single Axle Steel Highway Tow Diesel Bowser
Western ABBI 985 Litre Single Axle Steel Highway Tow Diesel Bowser
- Diesel
- Gas Oil
- HVO
- Steel
- Bunded
- 8 Year Warranty
Estimate delivery costs
Your postcode lets us show accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it isn't stored or shared.
Couldn't load pickup availability
Western ABBI H10ART 985 Litre Single Axle Steel Bunded Highway Tow Diesel Bowser
The Abbi highway is a safe and reliable fuel storage solution for any location that requires quick refuelling of any type of construction or auxiliary equipment. Abbi tanks can easily transport fuel to any given location,offering ultimate convenience to on-road transportation.
The Abbi highway tow is mounted on a type approved highway trailer fitted with European specified lighting and under- gear. This towable unit offers fuel transport convenience, allowing you to travel at ease between work sites and depots
Due to its highway approved design, this range is ideal for road work and work sites that require fuel transportation across highways. Abbi highway tanks can be towed and quickly moved to machinery, vehicles, generators and any other equipment
We have a range of pump options for the Western ABBI's including:
- 12v pump kit including 4 m delivery hose and manual nozzle
- K2 hand pump kit with 4 m delivery hose and manual nozzle
- There are other options available, including 24v pumps, 240v pumps, 110v pumps, digital flow meters and filters. Please enquire for details.
Key Benefits of Western ABBI
- 985 litre model can be transported full of diesel without the need for ADR Driver Training.
- Full load lifting eyes and internal baffles designed to allow handling of the ABBI full of fuel
- Four way forklift pockets, so the ABBI can be lifted with ease from any side
- Secure lockable access hatch to house pumps (electric or hand), and feed and return connections for up to 1 generator
- Internally baffled to maximise stability and safety when bowser moved when full
- Braked axle and road legal with lighting
ABBI H10ART Specification
- 1 x 3” Fill Cap
- 1 x 2” Fill Cap
- Contents Gauge
- 1” Pump Feed
- Pressure / Vacuum Vent
- Optional Generator Feed & Return Ports
- Pump Bracket
- Tank Inspection Plate
Applications and Uses
Fast Mobile Refuelling
A safe and reliable fuel storage solution for any location that requires quick refuelling of construction or auxiliary equipment.
Limited-Access Work Sites
Due to its mobile design, the ABBI tank can transport fuel to any site - reaching even the most difficult locations. The ABBI can be safely lifted but crane or forklift precisely and quickly.
Small and Short-Term Fuel Requirement
An ideal solution for short term, on site fuel storage. The ABBI can be used as a standby tank or a mobile refueller - offering both applications as one unit.
| Model | H10ART |
| Capacity (Nominal) | 985 Litres |
| Capacity (safe fill 95%) | 936 Litres |
| Dimensions (L x W x H) | 3390 x 1600 x 1700mm |
| Weight - Empty | 655 kg |
| Weight - Full | 1541 kg |
| Design Approvals | UN-IBC |
Pumps Explained
12V Pump
Electric fuel pump for dispensing diesel.
- 12v Pump, 4m cable c/w battery clips
- Heavy duty 3/4'' 4 m delivery hose
- 1.2 m suction hose
- Bypass
- Mechanical flow meter
- 3/4'' Automatic shut off trigger nozzle
- 45 LPM flow rate
- 30 m duty run-time
Hand Pump
- Manual operation
- Semi Rotary fuel pump
- Suction Hose
- Heavy Duty 3/4'' 4 m Delivery hose
- Manual Operating trigger nozzle
- Continuous duty cycle
Specifications
| Product Ref | WT |
|---|---|
| Volume (litres) | 985 |
| Length (mm) | 3,390 |
| Width (mm) | 1,600 |
| Height (mm) | 1,700 |
| Weight (kg) | 655 |
| Footprint (L+W) | 3390mm + 1600mm |
| Lead time (working days) | 3 |
