PRODUCT REF · 20ART

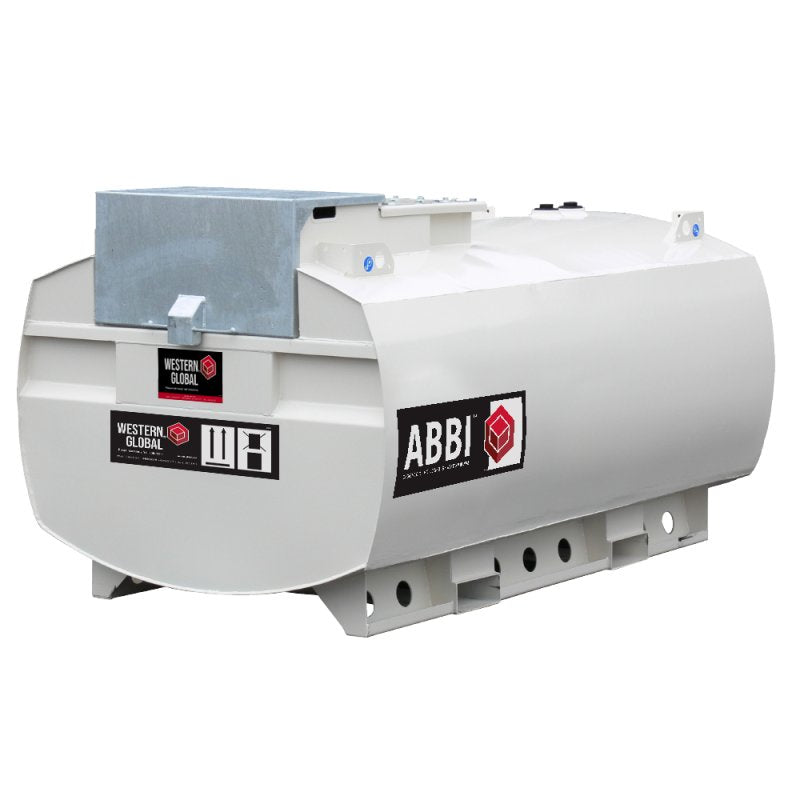

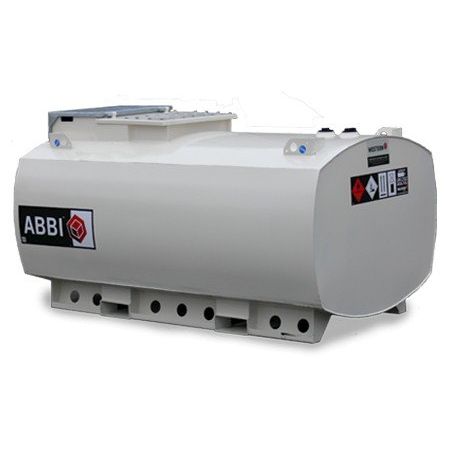

Western ABBI 1940 Litre Diesel Skid Bowser
Western ABBI 1940 Litre Diesel Skid Bowser
- Diesel
- Gas Oil
- HVO
- Steel
- Bunded
- 8 Year Warranty
Estimate delivery costs
Your postcode lets us show accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it isn't stored or shared.
Couldn't load pickup availability
Western ABBI 20ART Skid Bowser
The Western ABBI 1940 Litre skid bowser is a fully transportable diesel tank which is approved for transport of diesel fuel under the ADR Regulations. The Western ABBI is fully bunded steel in steel to ensure environmental compliance with Pollution Prevention Guidelines (PPG2). The ABBI Skid Bowsers have larger cabinets than the Transcubes enabling you to store larger pumps and hose reels as necessary. The ABBI bowsers have easy floor access, meaning the users do not need to climb on the bowser to use pumping equipment. Also, as standard, is the manhole access for inner tank inspection and maintenance.
We have a range of pump options for the Western ABBI's including:
- 12v pump kit including 4 m delivery hose and manual nozzle
- K2 hand pump kit with 4 m delivery hose and manual nozzle
- There are other options available, including 24v pumps, 240v pumps, 110v pumps, digital flow meters and filters. Please enquire for details.
Key Benefits of Western ABBI DELUXE
- Full load lifting eyes and internal baffles designed to allow handling of the ABBI full of fuel
- 2 way forklift pockets for easy manoeuvring
- Secure lockable access hatch to house pumps (electric or hand), and feed and return connections for up to 1 generator
ABBI 20ART Specification
- 1 x 3” Fill Cap
- 1 x 2” Fill Cap
- Contents Gauge
- 1” Pump Feed
- Pressure / Vacuum Vent
- Optional Generator Feed & Return Ports
- Pump Bracket
- Tank Inspection Plate
Applications and Uses
Fast Mobile Refuelling
A safe and reliable fuel storage solution for any location that requires quick refuelling of construction or auxiliary equipment.
Limited-Access Work Sites
Due to its mobile design, the ABBI tank can transport fuel to any site - reaching even the most difficult locations. The ABBI can be safely lifted but crane or forklift precisely and quickly.
Small and Short-Term Fuel Requirement
An ideal solution for short term, on site fuel storage. The ABBI can be used as a standby tank or a mobile refueller - offering both applications as one unit.
| Model | 20ART |
| Capacity (Nominal) | 1940 Litres |
| Capacity (safe fill 95%) | 1843 Litres |
| Dimensions (L x W x H) | 2300 x 1410 x 1280 mm |
| Weight - Empty | 705 kg |
| Weight - Full | 2450 kg |
| Design Approvals | UN-IBC |
Pumps Explained
12V Pump
Electric fuel pump for dispensing diesel.
- 12v Pump, 4 m cable c/w battery clips
- Heavy duty 3/4'' 4 m delivery hose
- 1.2 m suction hose
- Bypass
- Mechanical flow meter
- 3/4'' Automatic shut off trigger nozzle
- 45 LPM flow rate
- 30 m duty run-time
Hand Pump
- Manual operation
- Semi Rotary fuel pump
- Suction Hose
- Heavy Duty 3/4'' 4 m Delivery hose
- Manual Operating trigger nozzle
- Continuous duty cycle
Specifications
| Product Ref | WT |
|---|---|
| Volume (litres) | 1,940 |
| Length (mm) | 2,300 |
| Width (mm) | 1,410 |
| Height (mm) | 1,280 |
| Weight (kg) | 705 |
| Footprint (L+W) | 2300mm + 1410mm |
| Lead time (working days) | 3 |
Delivery Terms
The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page. Standard tank deliveries are "kerbside", which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.
Tanks over 2,500L — articulated lorry, customer offload
These tanks are delivered on an articulated vehicle (approximately 16.5m long × 2.6m wide × 3m high) which has no offloading on board. It is the customer's responsibility to offload the tank, which may require a telehandler or forklift.
Curtain-sided vehicles are also used, so please note that if there are obstacles or overhanging branches on the road to the delivery site, the driver may refuse to drive to the location due to the risk of damaging the vehicle. Please let us know about any obstructions before delivery so we can arrange alternative transport.
18-tonne tail-lift HGV
This vehicle is roughly the size of the largest bin lorries — approximately 8.2m long × 2.6m wide × 4m high, and often curtain-sided. If there are overhanging branches, these vehicles will not attempt the route, so a smaller vehicle should be requested.
Tanks are lowered to the ground but not positioned, as this is a kerbside delivery. If a smaller vehicle is required, email sales@fueltankshop.co.uk quoting your order number and name.
HIAB delivery
HIAB delivery is available but must be requested, and carries an additional cost. Email sales@fueltankshop.co.uk quoting your order number and name, and we'll come back to you with a price.
Accessories
Most accessories are delivered within 1–3 working days. Certain products and postcodes may take longer — check the product page for current information. If you need them sooner we can sometimes offer a next-day service; please contact us to discuss. If an item is out of stock we'll advise the expected lead time, and you're free to cancel for a full refund.
Returns Information
Customers may return items within 14 calendar days, as set out in section 7 of our Terms & Conditions.
All items must be returned unused. Refunds cannot be issued for used or previously installed items.
Please be aware that returning a tank can be complicated and expensive, so do check you're ordering the correct item — we strongly suggest checking the dimensions carefully before you buy.
How to return an item
- Complete the form on our returns page with details of your order.
- Once your request is approved, we'll issue a Returns Authorisation Number (RAN) along with instructions on how and where to return your order, and any costs involved.
- Please do not return any goods without this authorisation. Goods cannot be accepted without a valid RAN.
- Returns are not accepted at our Minehead office. Please wait until we contact you before returning anything.
