PRODUCT REF · 6000VBFS-009-T

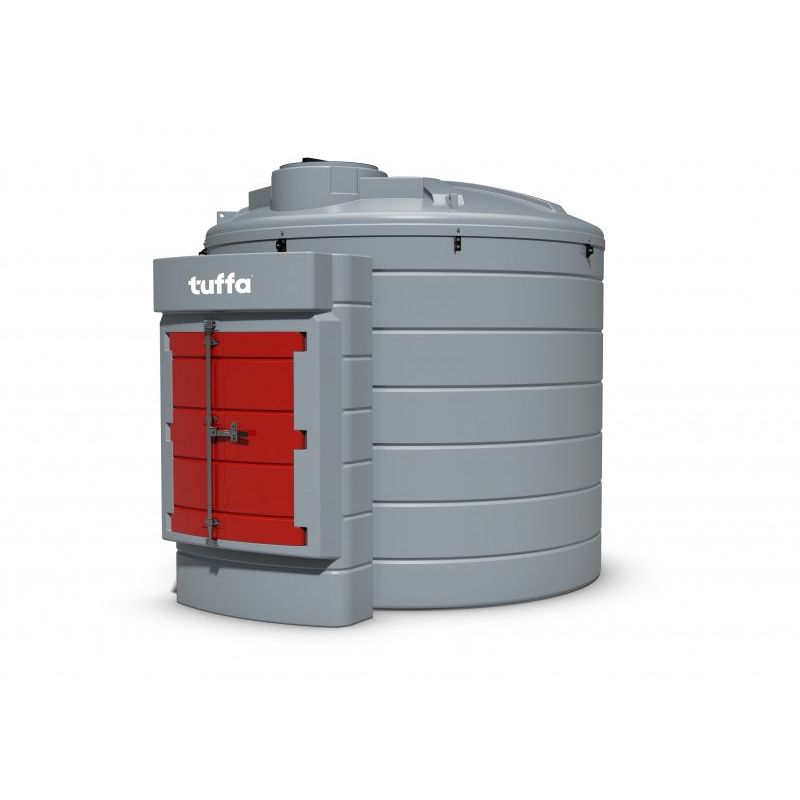

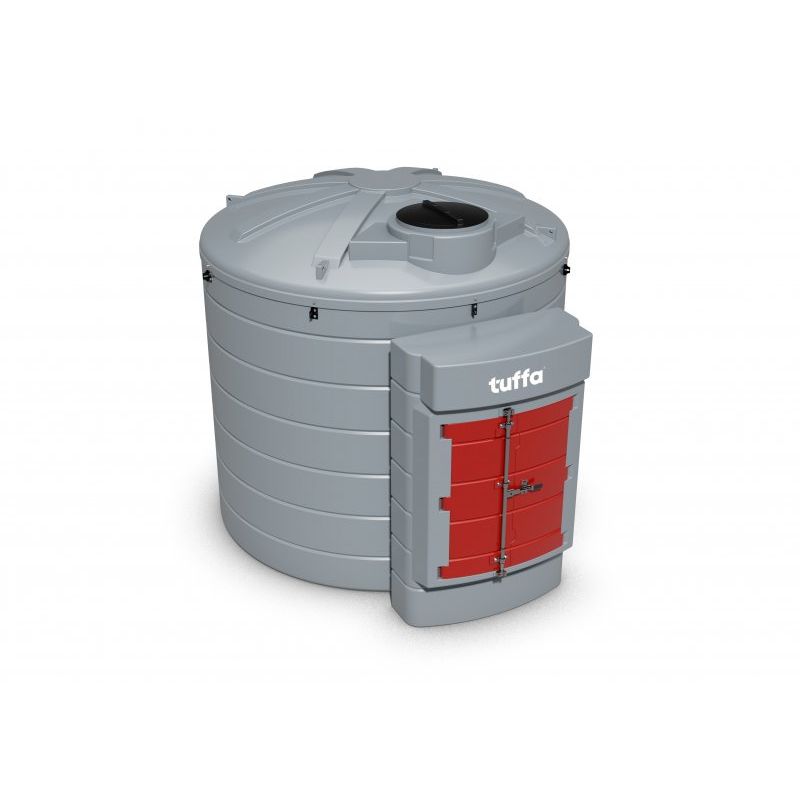

Tuffa 6000 Litre Plastic Bunded Diesel Tank c/w Tecalemit Horn HDA Fuel Management
Tuffa 6000 Litre Plastic Bunded Diesel Tank c/w Tecalemit Horn HDA Fuel Management
- Diesel
- Gas Oil
- HVO
- Plastic
- Vertical
- 10 Year Warranty
Estimate delivery costs
Your postcode lets us show accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it isn't stored or shared.
Couldn't load pickup availability
The Tuffa 6000 litre plastic bunded diesel tank (1320 gallon) is rotomoulded with a highly durable, corrosion-resistant and UV stabilized polyethylene plastic. This gives you a life expectancy of at least 20 years when properly installed, maintained, and used. Tuffa are so sure of the quality of their tanks that they offer a 10 year warranty on all bunded tanks when registered. This tank is suitable for a range of industries and contains a secondary containment system (bund) capable of storing a minimum of 110% of the primary tank’s contents. This is a requirement for all oil storage regulations for this capacity tank in the UK and reduces the risk of oil spills or leaks. Our diesel tanks are compatible with red or white diesel and HVO100 or HVO diesel blends
As standard this tank is powered by mains electricity (230v) with the added security of a Tecalemit Horn HDA fuel management system which allows authorized people to dispense fuel and the ability to monitor fuel usage
Tank Specification:
- 230v 56lpm pump
- Tecalemit Horn HDA Fuel Management System
- 230v FMS Contents Gauge And Alarm
- Control Panel
- 6m 3/4" delivery hose
- Automatic shut off nozzle
- Nozzle holster
- K600/3 Pulse Meter
- 2″ BSP fill connection with cap and chain
- Overfill prevention valve
- Vent
- FMS gauge and alarm (230v)
- 10 micron water and particulate filter
- Lockable cabinet
Optional Extras:
- Hose reel - a self-retracting hose reel with 10m delivery hose (only with standard pump)
- Pump options – High flow pump (72lpm)
- Watchman Sonic – an electronic oil level sensor which remotely monitors the level of fuel in the tank
- HIAB offloading
Specifications
| Product Ref | TF |
|---|---|
| Volume (litres) | 6,000 |
| Diameter (mm) | 2,550 |
| Height (mm) | 2,585 |
| Weight (kg) | 430 |
| Footprint (L+W) | 3150mm + 2550mm |
| Lead time (working days) | 25 |
Delivery Terms
The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page. Standard tank deliveries are "kerbside", which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.
Tanks over 2,500L — articulated lorry, customer offload
These tanks are delivered on an articulated vehicle (approximately 16.5m long × 2.6m wide × 3m high) which has no offloading on board. It is the customer's responsibility to offload the tank, which may require a telehandler or forklift.
Curtain-sided vehicles are also used, so please note that if there are obstacles or overhanging branches on the road to the delivery site, the driver may refuse to drive to the location due to the risk of damaging the vehicle. Please let us know about any obstructions before delivery so we can arrange alternative transport.
18-tonne tail-lift HGV
This vehicle is roughly the size of the largest bin lorries — approximately 8.2m long × 2.6m wide × 4m high, and often curtain-sided. If there are overhanging branches, these vehicles will not attempt the route, so a smaller vehicle should be requested.
Tanks are lowered to the ground but not positioned, as this is a kerbside delivery. If a smaller vehicle is required, email sales@fueltankshop.co.uk quoting your order number and name.
HIAB delivery
HIAB delivery is available but must be requested, and carries an additional cost. Email sales@fueltankshop.co.uk quoting your order number and name, and we'll come back to you with a price.
Accessories
Most accessories are delivered within 1–3 working days. Certain products and postcodes may take longer — check the product page for current information. If you need them sooner we can sometimes offer a next-day service; please contact us to discuss. If an item is out of stock we'll advise the expected lead time, and you're free to cancel for a full refund.
Returns Information
Customers may return items within 14 calendar days, as set out in section 7 of our Terms & Conditions.
All items must be returned unused. Refunds cannot be issued for used or previously installed items.
Please be aware that returning a tank can be complicated and expensive, so do check you're ordering the correct item — we strongly suggest checking the dimensions carefully before you buy.
How to return an item
- Complete the form on our returns page with details of your order.
- Once your request is approved, we'll issue a Returns Authorisation Number (RAN) along with instructions on how and where to return your order, and any costs involved.
- Please do not return any goods without this authorisation. Goods cannot be accepted without a valid RAN.
- Returns are not accepted at our Minehead office. Please wait until we contact you before returning anything.
Downloadable Documents
- No documents available for this product.
