Tuffa 30000L Plastic Bunded Diesel Dispensing Tank
Tuffa 30000L Plastic Bunded Diesel Dispensing Tank
- Diesel
- Gas Oil
- HVO
- Plastic
- Bunded
- Vertical
Estimate delivery costs
Your postcode lets us show accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it isn't stored or shared.
Couldn't load pickup availability
30000L Bunded Steel Diesel Dispensing Tank

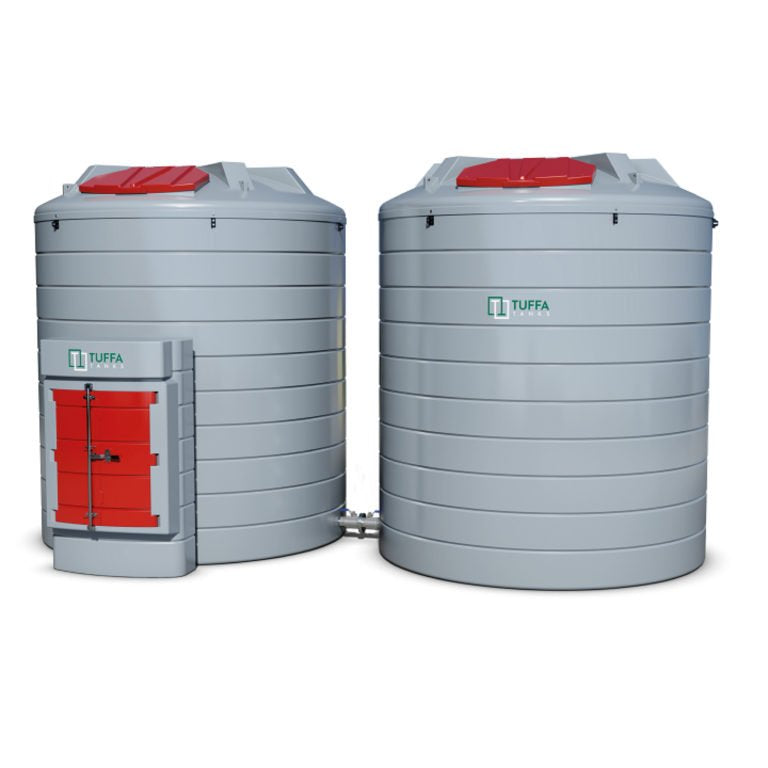

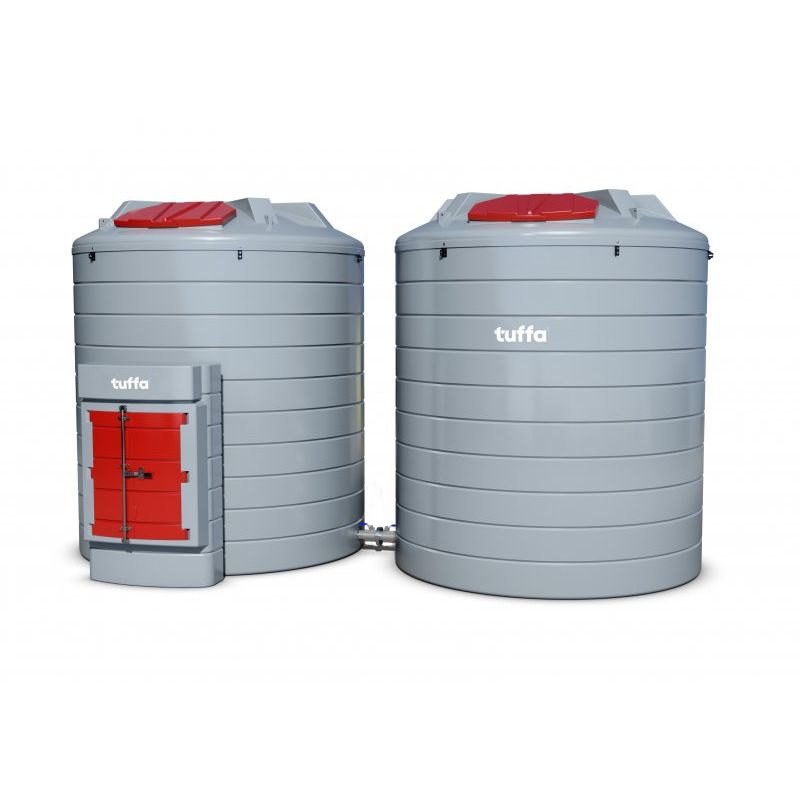

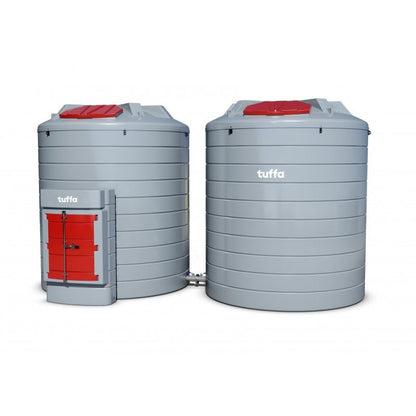

Tuffa 30000 litre plastic bunded diesel tank consists of two plastic bunded 15000 litre tanks interlinked to give an effective capacity of 30,000 litres (6820 gallons). This is our largest plastic storage solution and provides a great affordable alternative to our steel tanks of a similar capacity. For this reason, the 30000 litre plastic bunded diesel tank is our most cost-effective tank allowing you to benefit from forecourt style dispensing and huge savings from bulk buying diesel with a comparatively small initial outlay. Both interlinked tanks contain a plastic primary tank holding the fuel and plastic bund (outer tank) protecting against leaks and spills while complying with UK oil storage regulations. The main tank is fitted with a lockable cabinet housing the ancillary equipment. This includes a dispensing pump, flowmeter, hose with automatic shut off nozzle, and an FMS contents gauge and tank alarm. Optional extras are also available. The second tank is a simple bunded holding tank interlinked with the main tank. This system is capable of storing and dispensing red or white diesel and HVO100 or HVO diesel blends
This tank is ideal for domestic and non-domestic purposes.
- External pump 230v
- 6m of delivery hose
- Automatic shut off nozzle
- K33 mechanical flow meter
- Nozzle holster
- Control panel with key switch 230v
- 2″ BSP fill connection with cap and chain
- Overfill prevention valve
- Vent
- FMS gauge and alarm 230V
- 10 micron water and particulate filtration
- Lockable cabinet
- HVO Compatible
Available with optional upgrades:
- Fuel management
- High flow pump (85lpm - If using Hose Reel it is 78lpm)
- 10m hose reel
- Various configurations available

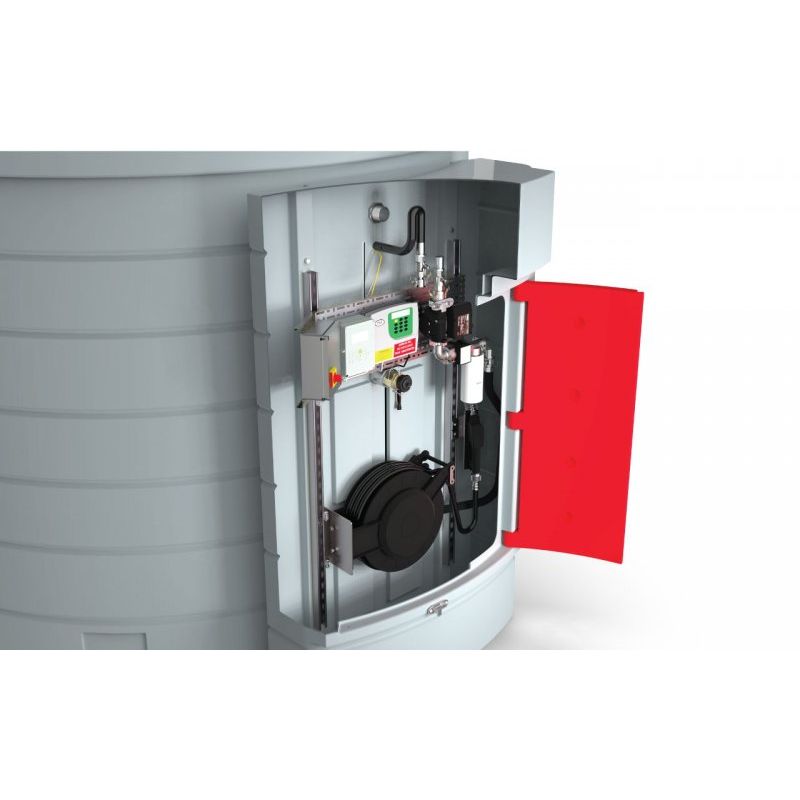

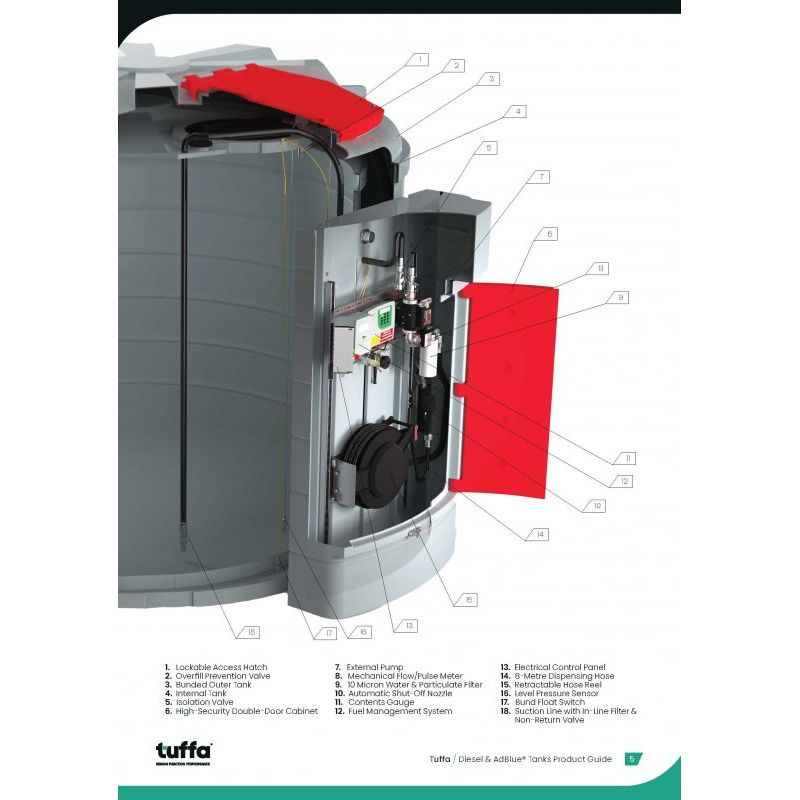

**Please note that image 2 is showing the inside of the cabinet with the Fuel Management and Hose Reel Options**
Specifications
| Product Ref | TF |
|---|---|
| Volume (litres) | 30,000 |
| Diameter (mm) | 2,890 |
| Height (mm) | 3,500 |
| Weight (kg) | 1,330 |
| Footprint (L+W) | 6020mm + 4060mm |
| Lead time (working days) | 25 |
Delivery Terms
The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page. Standard tank deliveries are "kerbside", which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.
Tanks over 2,500L — articulated lorry, customer offload
These tanks are delivered on an articulated vehicle (approximately 16.5m long × 2.6m wide × 3m high) which has no offloading on board. It is the customer's responsibility to offload the tank, which may require a telehandler or forklift.
Curtain-sided vehicles are also used, so please note that if there are obstacles or overhanging branches on the road to the delivery site, the driver may refuse to drive to the location due to the risk of damaging the vehicle. Please let us know about any obstructions before delivery so we can arrange alternative transport.
18-tonne tail-lift HGV
This vehicle is roughly the size of the largest bin lorries — approximately 8.2m long × 2.6m wide × 4m high, and often curtain-sided. If there are overhanging branches, these vehicles will not attempt the route, so a smaller vehicle should be requested.
Tanks are lowered to the ground but not positioned, as this is a kerbside delivery. If a smaller vehicle is required, email sales@fueltankshop.co.uk quoting your order number and name.
HIAB delivery
HIAB delivery is available but must be requested, and carries an additional cost. Email sales@fueltankshop.co.uk quoting your order number and name, and we'll come back to you with a price.
Accessories
Most accessories are delivered within 1–3 working days. Certain products and postcodes may take longer — check the product page for current information. If you need them sooner we can sometimes offer a next-day service; please contact us to discuss. If an item is out of stock we'll advise the expected lead time, and you're free to cancel for a full refund.
Returns Information
Customers may return items within 14 calendar days, as set out in section 7 of our Terms & Conditions.
All items must be returned unused. Refunds cannot be issued for used or previously installed items.
Please be aware that returning a tank can be complicated and expensive, so do check you're ordering the correct item — we strongly suggest checking the dimensions carefully before you buy.
How to return an item
- Complete the form on our returns page with details of your order.
- Once your request is approved, we'll issue a Returns Authorisation Number (RAN) along with instructions on how and where to return your order, and any costs involved.
- Please do not return any goods without this authorisation. Goods cannot be accepted without a valid RAN.
- Returns are not accepted at our Minehead office. Please wait until we contact you before returning anything.
Video
Downloadable Documents
- 30000VBFS Tank Drawing", "FLM Operation Instructions", "Tecalemit HDA Eco Manual", "Why Choose A Tuffa Plastic Diesel Tank ?", "Tecalemit Horn Data Sheet", "Tuffa 30000VBFS Diesel Tank Data Sheet
