PRODUCT REF · 1010119
Titan FuelMaster FMV3500 PRO - 3500 Litre Bunded Diesel Tank with Cloud based Watchman Access
Titan FuelMaster FMV3500 PRO - 3500 Litre Bunded Diesel Tank with Cloud based Watchman Access
- Diesel
- HVO
- Plastic
- Bunded
- Vertical
- 10 Year Warranty
Estimate delivery costs
Your postcode lets us show accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it isn't stored or shared.
Couldn't load pickup availability
Enquire about
Loading form…
3500L Bunded Plastic Diesel Fuel Storage and Dispensing Tank - Titan FMV3500PRO
Product Overview

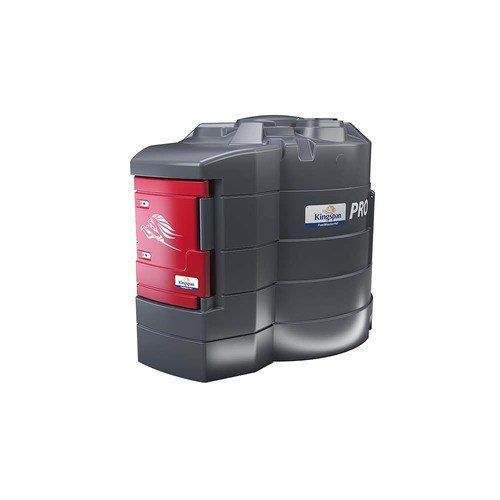

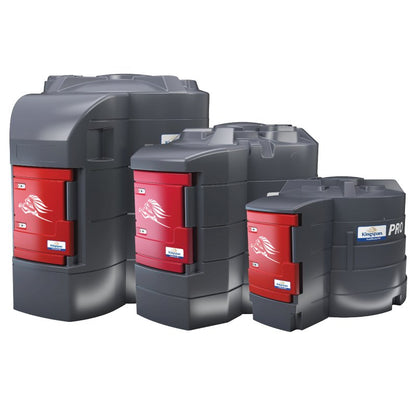

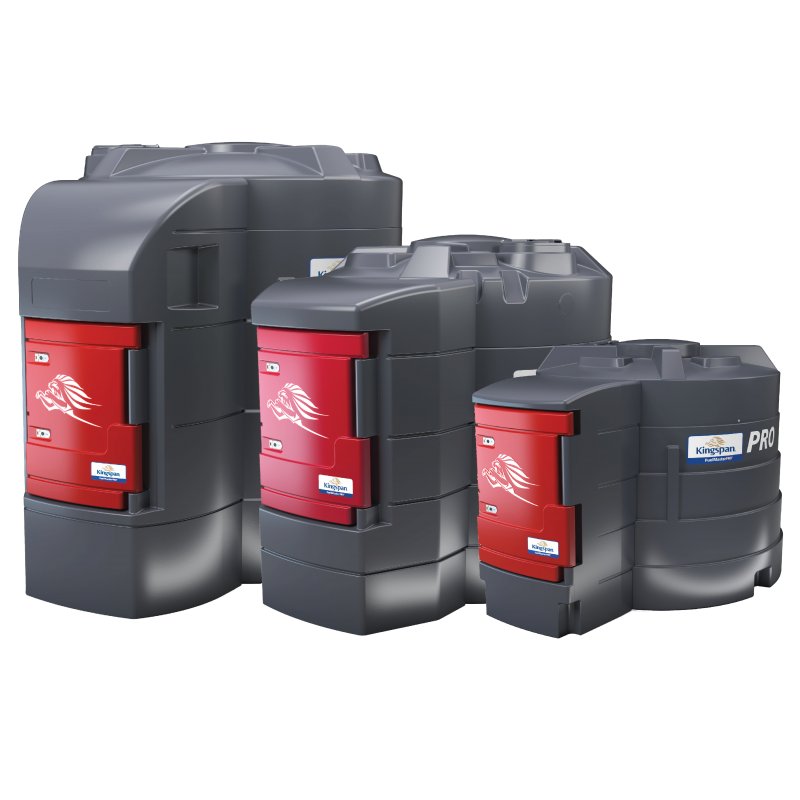

The Titan FuelMaster FMV3500 PRO is a 3,500 litre bunded diesel storage and dispensing tank with the Watchman Access cloud-based fuel management system included as standard.
Designed for commercial, agricultural, industrial and fleet applications, the FMV3500 PRO combines high-capacity fuel storage with integrated dispensing equipment, digital fuel measurement, leak detection and remote fuel management. The system allows authorised users to control fuel dispensing while providing remote visibility of fuel levels and dispensing activity.
This tanks comes with a 5 year subscription is included in price - After 5 years the hosting subscription will be £120 plus VAT yearly.
Key Features
- 3,500 litre diesel storage capacity
- Approximately 770 gallon capacity
- Bunded tank-within-a-tank construction
- Suitable for diesel and HVO
- Vertical tank design
- Integrated dispensing system
- 230V 72 lpm pump
- Optional 230V 100 lpm pump
- 6 metre delivery hose
- Optional 8 metre hose and reel
- Automatic shut-off nozzle
- 10-micron water and particulate filter
- Digital flow meter
- Watchman Access Fuel Management System
- Cloud-based fuel management
- RFID user identification
- Two-step refuelling authentication
- Remote pump control
- Fuel usage records
- Leak detection
- Fuel theft detection
- GPS location control
- Reporting functions
- Spillstop mechanical overfill protection
- 2" BSP filling coupling
- 1" suction line
- Nozzle holder with automatic pump switch
- Lockable dispensing cabinet
- Drip tray
- Motion sensor light
- Junction box
- 10-year tank warranty

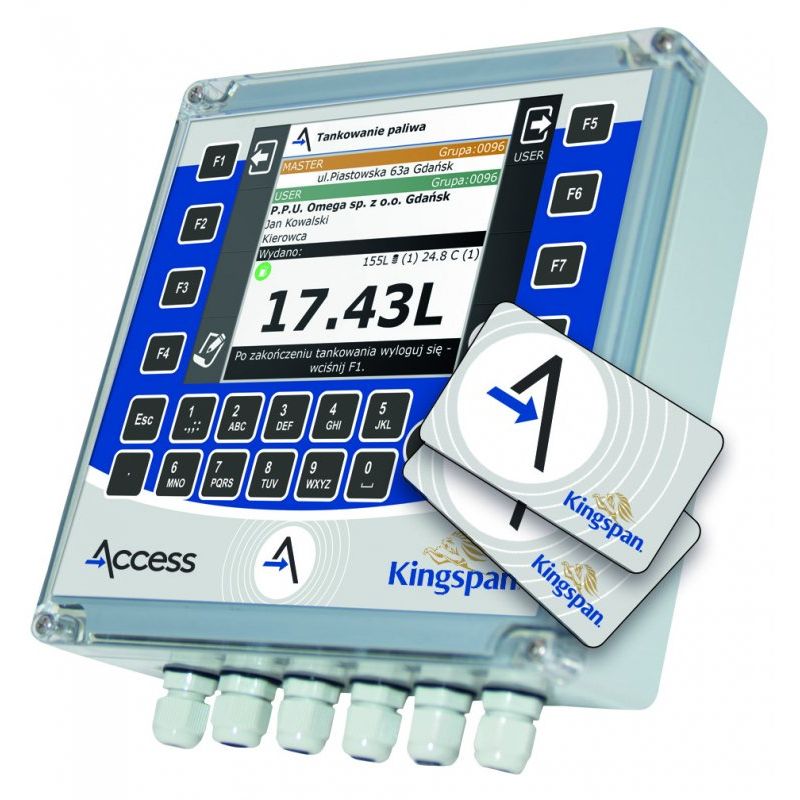

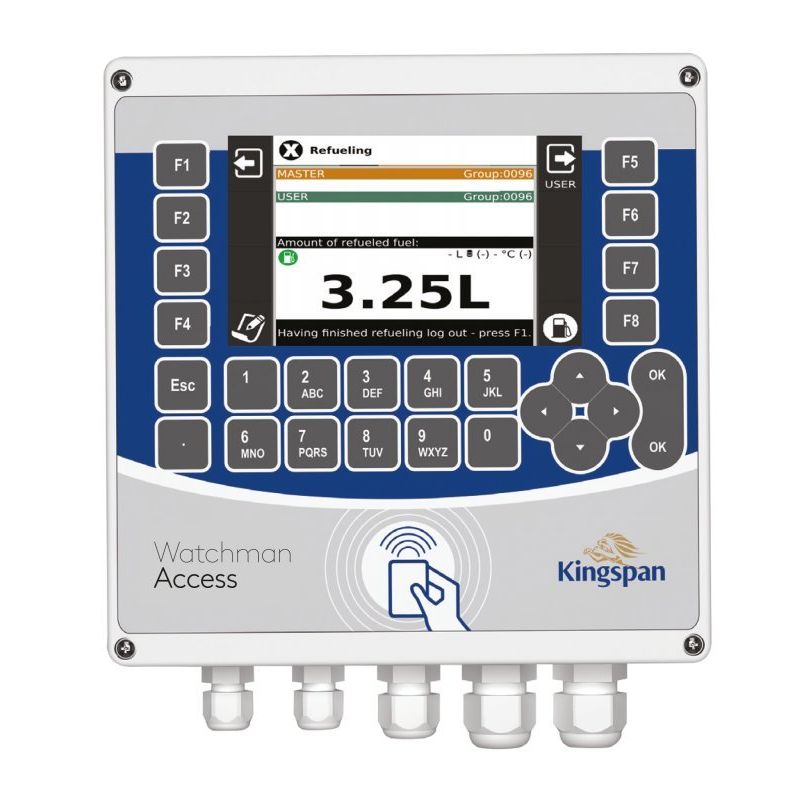

Watchman Access Cloud-Based Fuel Management
The Watchman Access Fuel Management System is the key feature of the PRO specification.
The system uses cloud-based technology to provide remote management of the fuel tank and dispensing operation. The current listing states that a five-year hosting subscription is included, with a subscription charge applying after the initial five-year period.
The Watchman Access units comes with a Starter pack of 40 cards & fobs - additional RFID cards & fobs can be purchased separately.
Watchman Access provides a range of fuel management functions, including:
- Remote monitoring of tank levels
- Fuel dispensing records
- User identification using RFID cards
- Two-step refuelling authentication
- Remote management of authorised users
- Remote control of the fuel pump
- Fuel theft detection
- Leak detection
- Fuel level drop detection
- Fuel replacement detection
- Reporting functions
- GPS location control
- Database capacity for up to 1,500 users and vehicles
The system can therefore provide businesses with greater control over who can dispense fuel and a record of fuel usage associated with individual users or vehicles.
RFID User Identification
Watchman Access supports user identification through unique RFID cards.
The system can be configured to identify drivers or other authorised users, while two-level authentication can be used where additional control is required, such as pairing a driver with a vehicle or requiring manager and driver authorisation.
This makes the FMV3500 PRO suitable for fleet operations where multiple people may be using the same fuel station
Suitable Applications
The Titan FuelMaster FMV3500 PRO is designed for organisations that need secure fuel storage combined with detailed monitoring and control of dispensing activity.
Typical applications include:
- Commercial vehicle fleets
- Agricultural machinery
- Farms and agricultural businesses
- Construction plant
- Contractors' vehicles
- Transport and logistics operations
- Industrial machinery
- Manufacturing sites
- Business premises
- Commercial yards
- Fleet fuelling facilities
- Sites using diesel or HVO
The Watchman Access system makes the FMV3500 PRO particularly suited to multi-user fuel stations where operators need to identify users, monitor fuel consumption and maintain control over dispensing permissions.
Delivery Information
Please note it is the customer responsibility to arrange suitable offloading equipment unless a hiab has been requested at a additional cost.
We recommend not to book any installation or machinery until the tank has been delivered. We will not be responsible for any additional cost occurred with delayed deliveries.
Failed deliveries may result in additional charges.
Collection may be available ex works (Please contact us in regards to this option).
Specifications
| Product Ref | TD |
|---|---|
| Volume (litres) | 3,500 |
| Length (mm) | 2,850 |
| Width (mm) | 2,200 |
| Height (mm) | 1,960 |
| Weight (kg) | 285 |
| Footprint (L+W) | 2850mm + 2200mm |
| Lead time (working days) | 30 |
Delivery Terms
Please contact us in relation to leadtimes for these products
The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page. Standard tank deliveries are "kerbside", which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.
Tanks over 2,500L — articulated lorry, customer offload
These tanks are delivered on an articulated vehicle (approximately 16.5m long × 2.6m wide × 3m high) which has no offloading on board. It is the customer's responsibility to offload the tank, which may require a telehandler or forklift.
Curtain-sided vehicles are also used, so please note that if there are obstacles or overhanging branches on the road to the delivery site, the driver may refuse to drive to the location due to the risk of damaging the vehicle. Please let us know about any obstructions before delivery so we can arrange alternative transport.
18-tonne tail-lift HGV
This vehicle is roughly the size of the largest bin lorries — approximately 8.2m long × 2.6m wide × 4m high, and often curtain-sided. If there are overhanging branches, these vehicles will not attempt the route, so a smaller vehicle should be requested.
Tanks are lowered to the ground but not positioned, as this is a kerbside delivery. If a smaller vehicle is required, email sales@fueltankshop.co.uk quoting your order number and name.
HIAB delivery
HIAB delivery is available but must be requested, and carries an additional cost. Email sales@fueltankshop.co.uk quoting your order number and name, and we'll come back to you with a price.
Accessories
Most accessories are delivered within 1–3 working days. Certain products and postcodes may take longer — check the product page for current information. If you need them sooner we can sometimes offer a next-day service; please contact us to discuss. If an item is out of stock we'll advise the expected lead time, and you're free to cancel for a full refund.
Returns Information
Customers may return items within 14 calendar days, as set out in section 7 of our Terms & Conditions.
All items must be returned unused. Refunds cannot be issued for used or previously installed items.
Please be aware that returning a tank can be complicated and expensive, so do check you're ordering the correct item — we strongly suggest checking the dimensions carefully before you buy.
How to return an item
- Complete the form on our returns page with details of your order.
- Once your request is approved, we'll issue a Returns Authorisation Number (RAN) along with instructions on how and where to return your order, and any costs involved.
- Please do not return any goods without this authorisation. Goods cannot be accepted without a valid RAN.
- Returns are not accepted at our Minehead office. Please wait until we contact you before returning anything.
Video
Downloadable Documents
- No documents available for this product.
