Titan FuelMaster 3500 Litre Advanced Bunded Diesel Tank - FMV3500AD
Titan FuelMaster 3500 Litre Advanced Bunded Diesel Tank - FMV3500AD
- Diesel
- HVO
- Plastic
- Bunded
- Vertical
- 10 Year Warranty
Estimate delivery costs
Your postcode lets us show accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it isn't stored or shared.
Couldn't load pickup availability
Enquire about
Loading form…

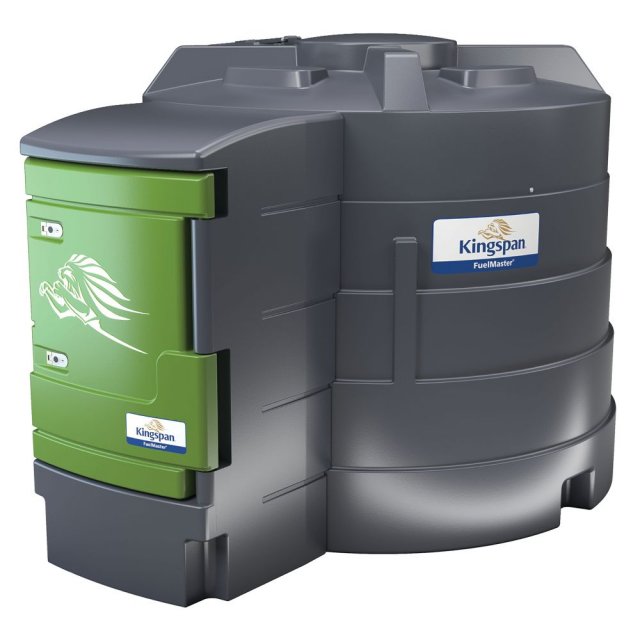

Titan FuelMaster 3500 Litre Advanced Bunded Diesel Tank - FMV3500AD
Product Overview
The Titan FuelMaster FMV3500 Advanced is a 3,500 litre (770 gallon) bunded diesel storage and dispensing tank designed for commercial, agricultural and industrial applications. Manufactured from durable, low-maintenance plastic and incorporating a double-skin bunded construction, the FuelMaster provides secure on-site fuel storage together with an integrated dispensing system.
The Advanced specification adds a digital flow meter, mechanical level gauge, motion sensor lighting and other dispensing equipment to provide a practical solution for sites that need to store, monitor and dispense diesel efficiently.
The FMV3500 Advanced is suitable for diesel and HVO and is supplied with a 230V 72 lpm pump as standard, with a 100 lpm pump and 8m hose reel available as special-order options.
Key Features
- 3,500 litre / 770 gallon capacity
- Bunded, double-skin construction
- Suitable for diesel and HVO
- Vertical tank design
- 230V 72 lpm pump supplied as standard
- Optional 230V 100 lpm pump
- 6m delivery hose
- Optional 8m hose and reel
- Automatic shut-off nozzle
- Digital flow meter
- Mechanical level clock gauge
- 10-micron water and particulate filter
- Spillstop mechanical overfill protection
- 1" suction hose with non-return valve
- 2" BSP filling connection
- Lockable dispensing cabinet
- Integrated drip tray
- Motion sensor light
- Junction box
- Nozzle holder
- 10-year tank warranty
Bunded Fuel Storage
The FuelMaster's double-skin construction provides secondary containment around the primary fuel tank. In the event of a leak or spill from the inner tank, the outer bund is designed to retain the escaped fuel and help prevent ground contamination.
The bunded construction also keeps the dispensing equipment enclosed and protected within the tank's cabinet, providing a compact all-in-one fuel storage and dispensing solution.
Secure Lockable Cabinet
The dispensing equipment is enclosed within a lockable cabinet, helping to restrict unauthorised access to the pump, nozzle and associated dispensing equipment.
The cabinet also incorporates a drip tray to help contain minor spills around the dispensing area.
Suitable Applications
The Titan FuelMaster FMV3500 Advanced is suitable for a wide range of applications where a secure, bunded diesel storage and dispensing facility is required, including:
- Agricultural farms and estates
- Plant and machinery operations
- Construction companies
- Commercial vehicle fleets
- Haulage and transport businesses
- Industrial sites
- Groundworks and civil engineering
- Contractors and plant hire companies
- Workshops and depots
- Backup and operational fuel storage
Its 3,500 litre capacity provides a substantial on-site fuel reserve while the integrated dispensing equipment allows fuel to be stored and dispensed from a single dedicated unit.
Delivery Information
Please note it is the customer responsibility to arrange suitable offloading equipment unless a hiab has been requested at a additional cost.
We recommend not to book any installation or machinery until the tank has been delivered. We will not be responsible for any additional cost occurred with delayed deliveries.
Failed deliveries may result in additional charges.
Collection may be available ex works (Please contact us in regards to this option).
Specifications
| Product Ref | TD |
|---|---|
| Volume (litres) | 3,500 |
| Diameter (mm) | 2,850 |
| Length (mm) | 2,850 |
| Width (mm) | 2,200 |
| Height (mm) | 1,960 |
| Weight (kg) | 285 |
| Footprint (L+W) | 2850mm + 2200mm |
| Lead time (working days) | 14 |
Delivery Terms
Lead Time Approx 10 Working Days
The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page. Standard tank deliveries are "kerbside", which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.
Tanks over 2,500L — articulated lorry, customer offload
These tanks are delivered on an articulated vehicle (approximately 16.5m long × 2.6m wide × 3m high) which has no offloading on board. It is the customer's responsibility to offload the tank, which may require a telehandler or forklift.
Curtain-sided vehicles are also used, so please note that if there are obstacles or overhanging branches on the road to the delivery site, the driver may refuse to drive to the location due to the risk of damaging the vehicle. Please let us know about any obstructions before delivery so we can arrange alternative transport.
18-tonne tail-lift HGV
This vehicle is roughly the size of the largest bin lorries — approximately 8.2m long × 2.6m wide × 4m high, and often curtain-sided. If there are overhanging branches, these vehicles will not attempt the route, so a smaller vehicle should be requested.
Tanks are lowered to the ground but not positioned, as this is a kerbside delivery. If a smaller vehicle is required, email sales@fueltankshop.co.uk quoting your order number and name.
HIAB delivery
HIAB delivery is available but must be requested, and carries an additional cost. Email sales@fueltankshop.co.uk quoting your order number and name, and we'll come back to you with a price.
Accessories
Most accessories are delivered within 1–3 working days. Certain products and postcodes may take longer — check the product page for current information. If you need them sooner we can sometimes offer a next-day service; please contact us to discuss. If an item is out of stock we'll advise the expected lead time, and you're free to cancel for a full refund.
Returns Information
Customers may return items within 14 calendar days, as set out in section 7 of our Terms & Conditions.
All items must be returned unused. Refunds cannot be issued for used or previously installed items.
Please be aware that returning a tank can be complicated and expensive, so do check you're ordering the correct item — we strongly suggest checking the dimensions carefully before you buy.
How to return an item
- Complete the form on our returns page with details of your order.
- Once your request is approved, we'll issue a Returns Authorisation Number (RAN) along with instructions on how and where to return your order, and any costs involved.
- Please do not return any goods without this authorisation. Goods cannot be accepted without a valid RAN.
- Returns are not accepted at our Minehead office. Please wait until we contact you before returning anything.
