PRODUCT REF · TL7000
Tigerloop Bio De-Aerator - Internal/External Fitting
Tigerloop Bio De-Aerator - Internal/External Fitting
- Bio Diesel
- Gas Oil
- Heating Oil
Estimate delivery costs
Your postcode lets us show accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it isn't stored or shared.
Couldn't load pickup availability

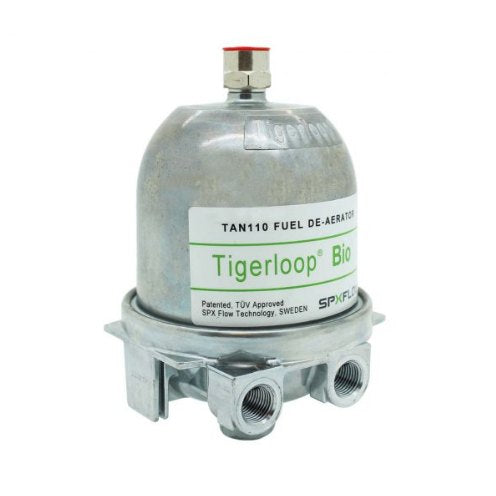

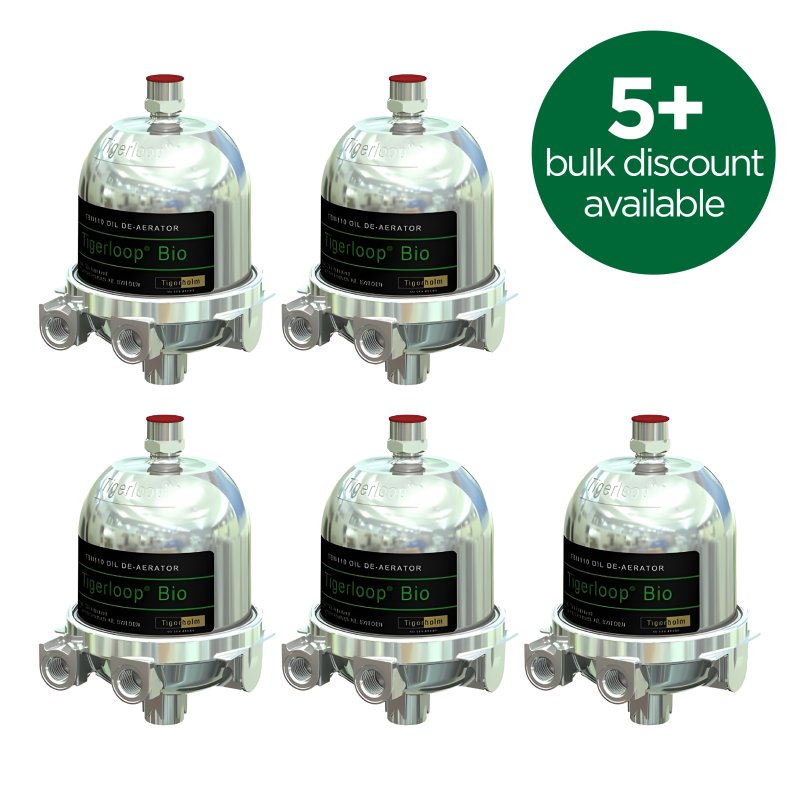

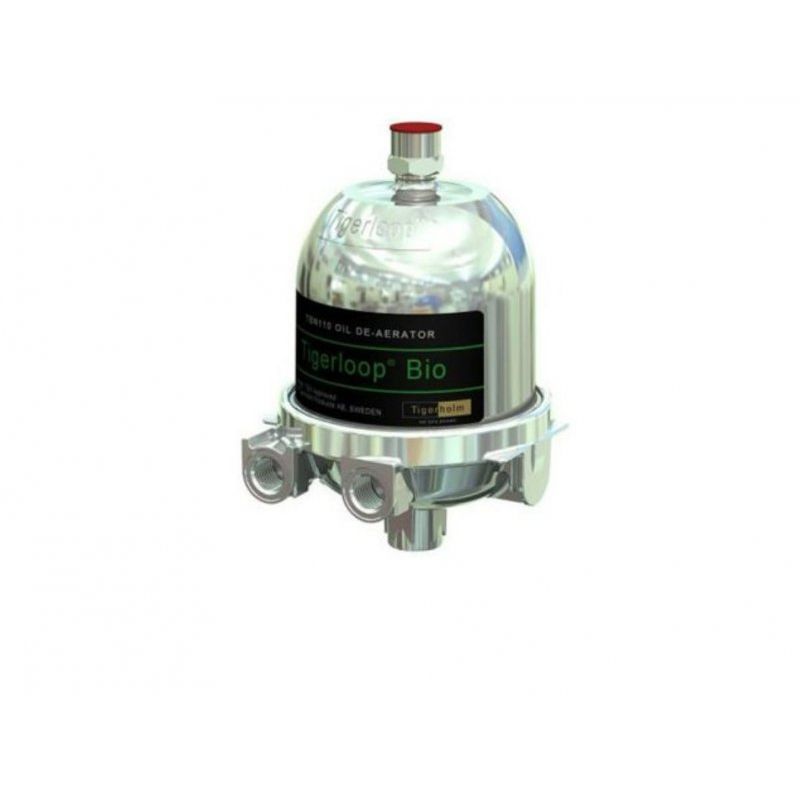

Tigerloop Bio De-Aerator
The Tiger Loop Bio removes air from heating oil and can be fitted internally or externally. Not only compatible with standard mineral fuels like kerosene and gas oil but also bio-liquids and bio-liquid/mineral fuel blends. Suitable for oil, kerosene and biofuel. 1/4" F BSP.
Included:
- Tigerloop Wall Bracket
Advantages:
- Cleaner burn saves fuel
- Cleaner burn saves on maintenance
- Cleaner burns save money
- Cleaner burn saves on breakdowns
- Pre-heating helps burn in cold weather
Technical Data
- Nozzle Capacity (l/h) - 110
- Oil Flow (l/h) - 230
- Max return oil (l/h) - 120
- De-aerating capacity (l/h) - 8
- Max operating temp - 70ºc
- Max/Min Pressure - +0.5/-0.6
- Inlet/Outlet - 1/4" F BSP
- Kerosene, oil and biofuel
The New Bio Tigerloop is constructed externally of metal materials, making it suitable for both indoor and outdoor installation. The Bio Tigerloop automatically and continuously de-aerates the fuel, venting to atmosphere. This is the only way to prevent air from going to the burner. This proven method of de-aeration ensures the best possible efficiency for the heating system. The only additional requirement for indoor installation is to connect a copper pipe to the top of the Tigerloop, the de-aerated gases can be piped to discharge externally.
The Tigerloop Bio is designed for use with bio liquid fuels produced to BS EN 14213 and fuel blends up to B100.
Fitting requires three 1/4" BSPF fittings.
The Tigerloop is a product designed to meet increasing demands on energy savings, environmental and operational safety. Environmental regulations and changes in oil qualities continue to place high demands not only on material selection, but also on clean and air-free oil for optimal combustion with minimal discharge of harmful particles. Tigerloop makes it possible to use a one-pipe system in all types of heating installations, thus ensuring the most environmentally safe method for transporting oil from the oil tank to the burner.
Tigerloop combines the advantages of the oil pump of a two-pipe system with the advantages from the oil tank of a one-pipe system. When using a one-pipe system and Tigerloop, only the amount of oil used by the oil burner is drawn from the oil tank. As the oil flow decreases, so does the amount of dirt particles transported from the tank. This results in cleaner combustion. The pressurized return line to the oil tank is removed, thus eliminating the risk for hazardous leakage. A large amount of air bubbles are released when oil is drawn from the oil tank to the oil burner. These air bubbles cause breakdowns, increased soot and excessive wear on the oil pump. By functioning as an automatic deaerator, Tigerloop eliminates all such problems.
Optional Extras:
- Tigerloop Fitting Kit (2x Steel braided lines and fittings) - required for new installation
