PRODUCT REF · HDMCK
Tecalemit HDMCK Pump With Fuel Management System Cloud based Kit
Tecalemit HDMCK Pump With Fuel Management System Cloud based Kit
- Bio Diesel
- Diesel
- 1 Year Warranty
- Demo Available
Estimate delivery costs
Your postcode lets us show accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it isn't stored or shared.
Couldn't load pickup availability

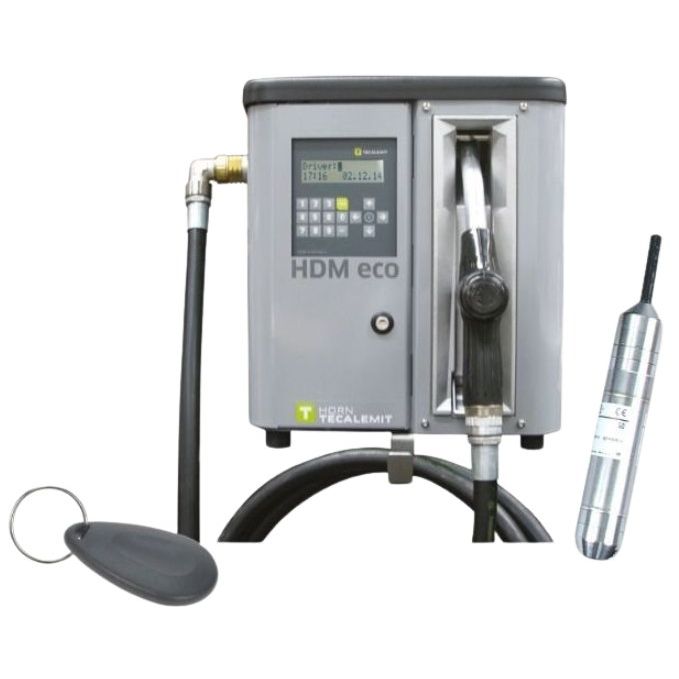

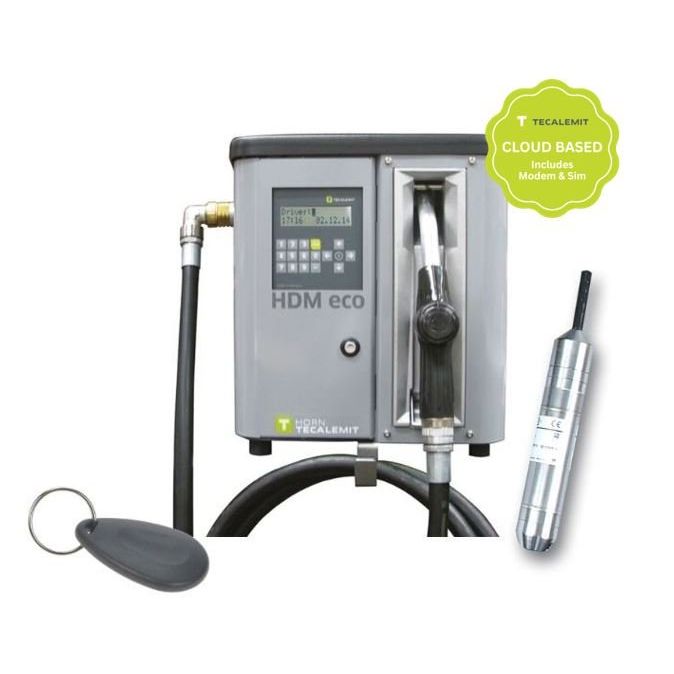

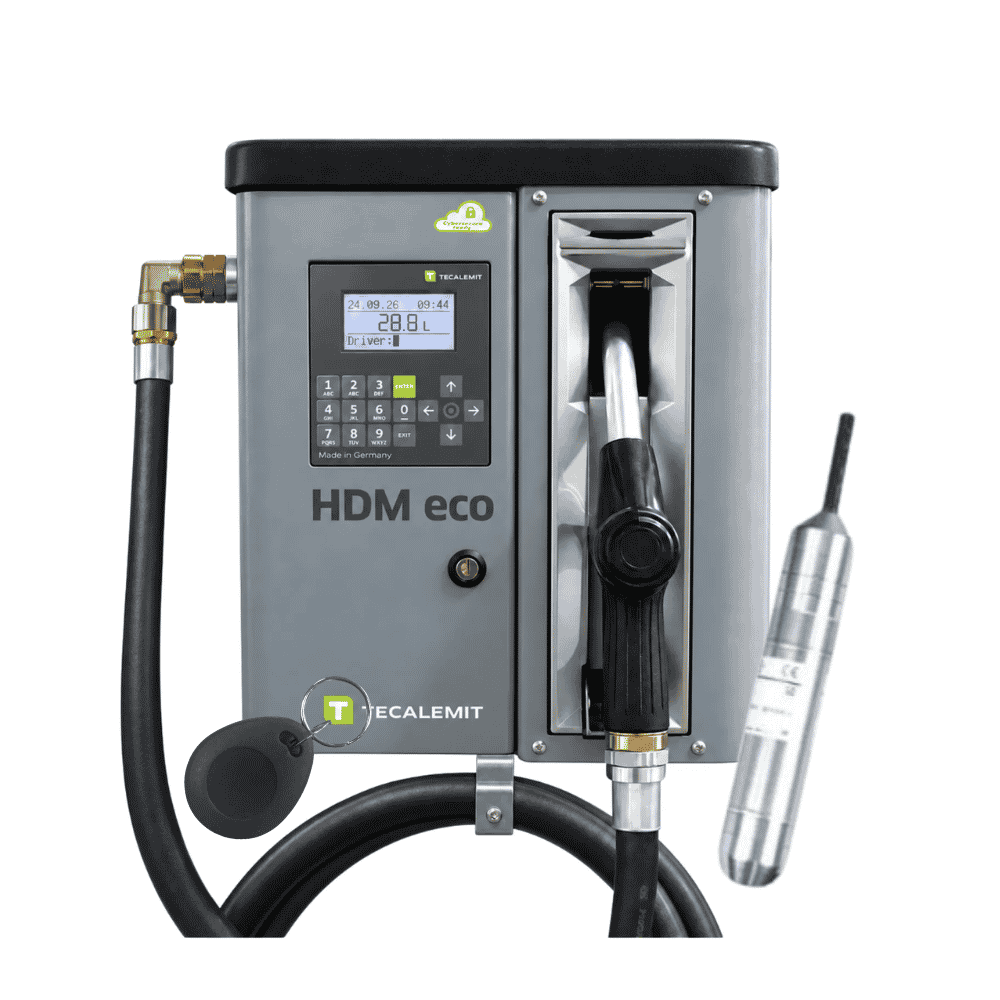

Tecalemit HDMCK Pump With Fuel Management System Kit – Cloud Based
The Tecalemit HDMC pump, capable of dispensing diesel or HVO at 50 litres per minute (85lpm upgrade available), comes complete with an integrated Tecalemit Fuel Management System (FMS). This comprehensive kit includes a GSM modem, SIM card, cloud-based software, a high-accuracy tank level probe (±0.5%), and tank fill monitoring software.
Designed for medium to large fleets and multi-site or multi-user operations, this system provides full control and visibility over fuel and AdBlue® usage. It tracks which drivers and vehicles have dispensed fuel, the volume taken, and the exact date and time of each transaction.
All data is securely stored in the cloud platform, enabling remote access, monitoring, and detailed reporting. The system also highlights underperforming vehicles and drivers, calculating MPG to support improved fleet efficiency. This version supports control of a single pump.
If you require a free no obligation virtual DEMO if the Fuel Management and online system please click here
Key Features & Benefits:
- The system comprises of the HDACK FM terminal fitted inside a compact fuel pump cabinet, that includes the full cloud software (free automatic updates), tank level accuracy +/- 0.5%, fill module reports, integral GSM modem/SIM & 10 tags
- 230V self priming pump unit
- Dispenses diesel and HVO at 50 litres per minute, ideal for refuelling cars & light trucks
- We offer a faster speed version that dispenses at 85 litres per minute version (HDMHC) for refuelling vehicles with larger fuel tanks, such as coaches & plant machinery
- Nozzle operated on/off switch prevents the motor from being left running
- Meter accuracy +/?0.5% (this accuracy is very important as the fuel management system is only as accurate as the pump/dispensers flow meter that its connected to)
- Continuously rated motor with thermal cut out
- Weatherproof to IP54
- Integral filter & bypass valve
- 4m x 1” delivery hose & automatic shut off nozzle.
- Dimensions: 470mm H x 550mm W x 340mm D
- Suitable with diesel, HVO, biodiesel & AdBlue®
- Fuel management system to control 1 pump
- 230V power supply
- Suitable for wall or tank mounting
- Full support in completing the setup questionnaire
- First-year remote/hosting support included
- Hosting & SIM charges are included for year one, after year one a 24 months contract is available that keeps the FMS cloud software updated & continued remote support
- Maximum number of users: 4,000
- Dimensions: 330mm H x 305mm W x 150mm D
- Stores up to 10,000 transactions before downloading is required
- Download fuelling data to the PC software using the USB stick provided
- Can assign vehicle tags & driver codes or you can just use the tag on its own
- Vehicle tags are a proximity type
- You can lock & unlock tags
- Override switch (need to unlock the main door to locate to prevent unauthorised use)
- A preset amount in litres can be set for each vehicle
- Connects to pump via existing pulser or we can supply a separate pulse meter see under options
- Compatible with a pulse meter ratio between 1 to 1000:1
- Odometer entry option, odometer maximum distance option
- Messages can be sent for drivers & vehicles to the FM terminal
Cloud Based Soft
- Full reporting & service modules (not just standard reporting)
- Flexible easy to use cloud reporting
- Tag or pin code entry
- Stores up to 10,000 transactions
- Maximum users 4,000
Reporting includes:
- The dashboard gives a snapshot of your data,
- View multiple sites
- MPG, dashboard graphic view
- Stock monitoring, book stock, view book stock tank level
- Choose when your data polls, max every hr, min once a day
- Shows the last connection date in the inventory menu
- All graphs & reports are customisable
- Export reports to .PDF/.CSV files
- Set high & low level warnings with email alerts
- Email alert if it drops offline (GSM option only)
- Remotely set up, edit, & deactivate tags & deactivate unit
- Restrict vehicles or drivers to specific sites or fuels
- Limit the amount that can be dispensed
- Assign transactions to a cost centre (not for resale of fuel)
- To calculate MPG request an odometer reading in miles/km or hrs
Allows the user to view
- MPG reports
- Fuel used per vehicle/driver
- Vehicle groups or departments
- Transaction totals
- Information by selecting a date range
- An operator by date or vehicle
- An individual vehicle by date or operator

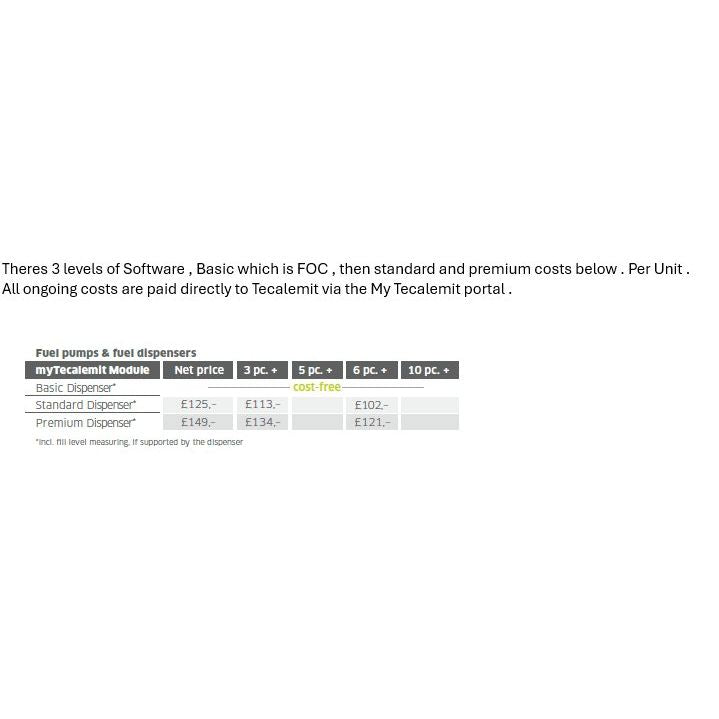

Ongoing costs after year 1
- Main site cloud based software management hosting & SIM contract fee - 24 months
Specifications
| Product Ref | HY |
|---|---|
| Lead time (working days) | 3 |
