PRODUCT REF · HDMC
Tecalemit HDMC Pump With Fuel Management System - Cloud Based Reporting
Tecalemit HDMC Pump With Fuel Management System - Cloud Based Reporting
- Bio Diesel
- Diesel
- 2 Year Warranty
- Demo Available
Estimate delivery costs
Your postcode lets us show accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it isn't stored or shared.
Couldn't load pickup availability

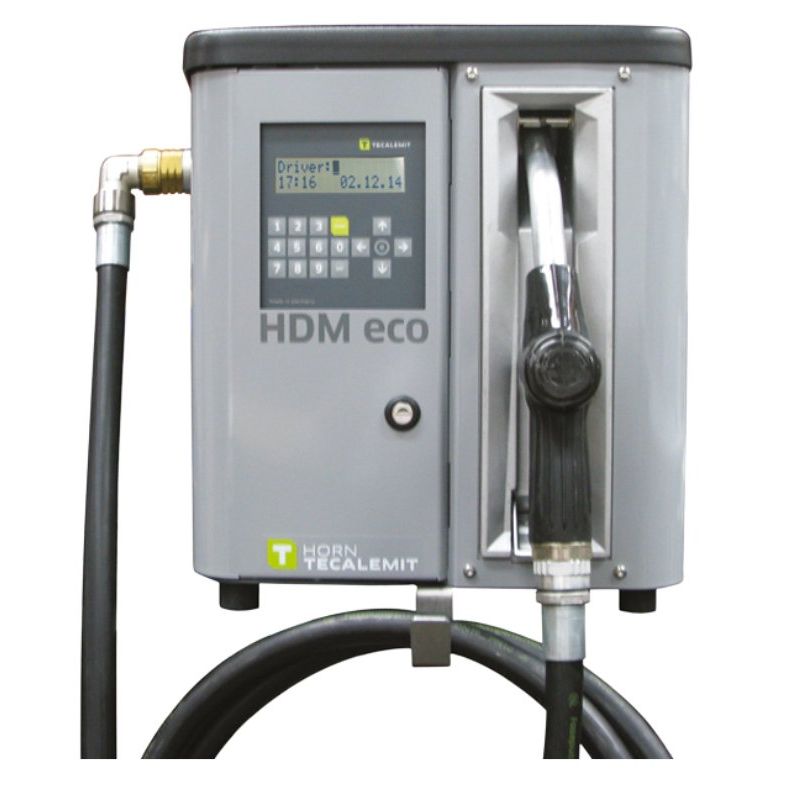

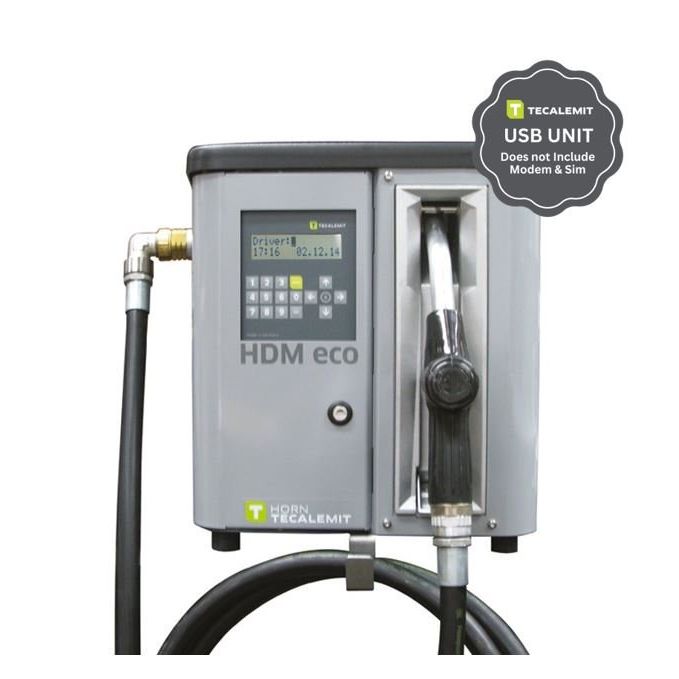

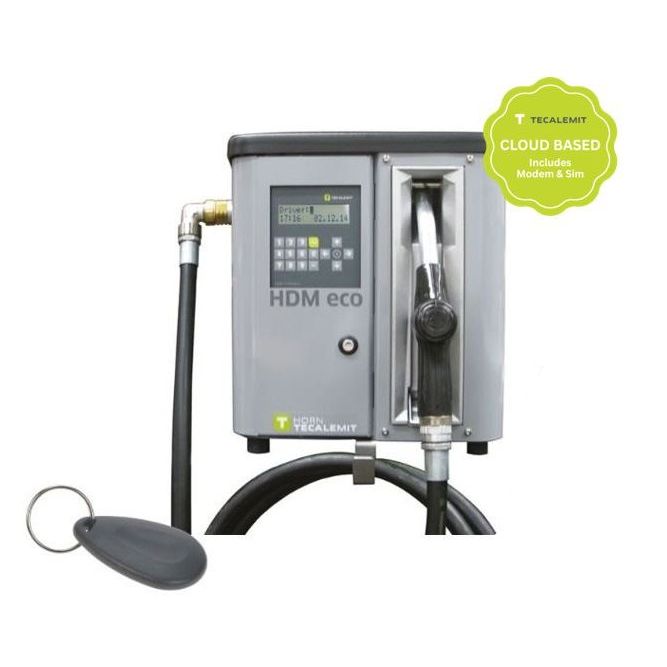

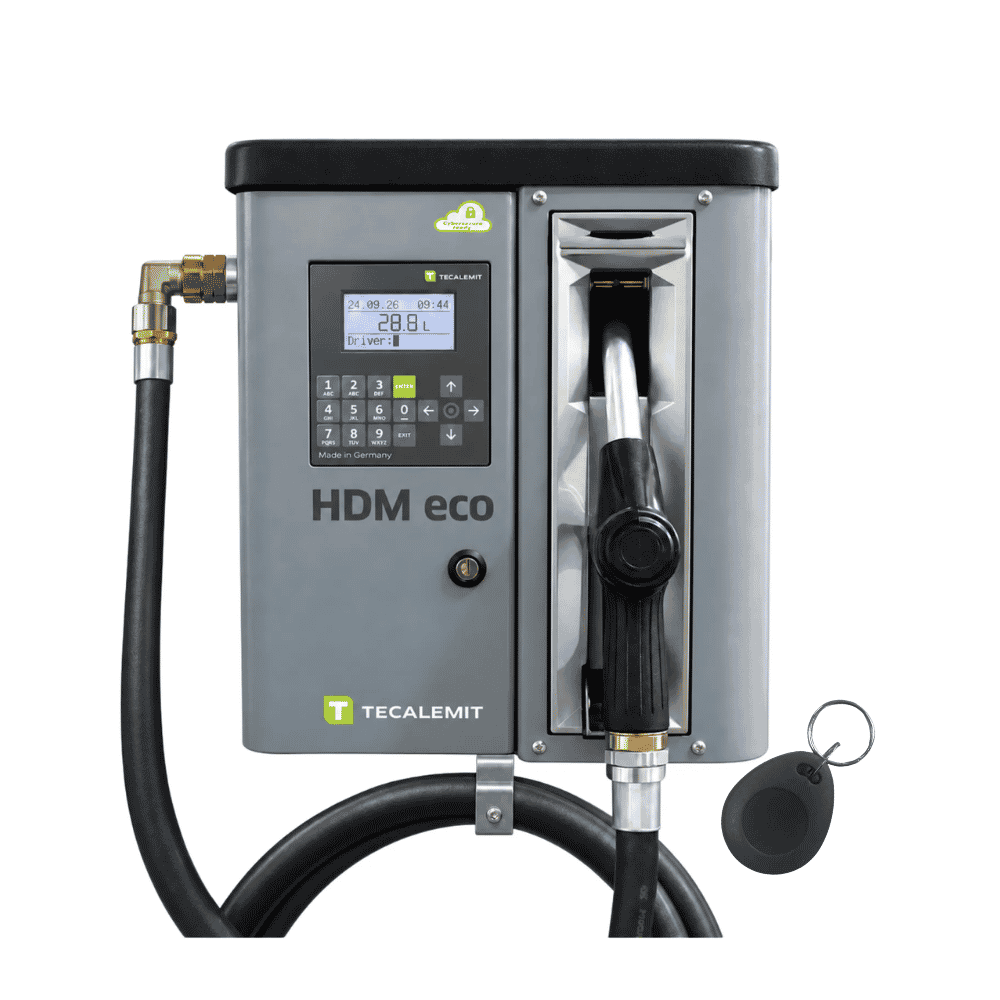

Tecalemit HDMC Pump With Fuel Management System - Cloud Based Reporting
The Tecalemit HDMC pump, delivering diesel or HVO at a standard rate of 50 litres per minute (85 Litres per minute upgrade also available), comes equipped with an integrated Tecalemit Fuel Management System (FMS). This all-in-one solution is ideal for small to large fleets, as well as operations across multiple sites or involving numerous users, where precise control and accountability over fuel and AdBlue® usage is essential.
The system records who has dispensed fuel or AdBlue®, how much was taken, and the exact date and time of each transaction. All data is automatically logged in Tecalemit’s cloud-based software, providing remote access for monitoring and detailed reporting.
In addition to tracking consumption, the FMS identifies inefficient drivers or vehicles and calculates fuel economy (MPG), helping to improve fleet performance and cost control.
If you require a free no obligation virtual DEMO if the Fuel Management and online system please click here
Key Features & Benefits:
-
HDAC FM terminal in compact pump cabinet with full cloud software & USB download stick
-
230V self-priming pump – 50 L/min (HDMC) for cars/light trucks; 85 L/min (HDMHC) for larger vehicles
-
Nozzle-operated on/off switch to prevent motor overrun
-
Flow meter accuracy ±0.5%
-
Continuous motor with thermal cut-out
-
IP54 weatherproof, integral filter & bypass valve
-
4m x 1” delivery hose & automatic shut-off nozzle
-
Dimensions (pump unit): 470mm H x 550mm W x 340mm D
-
Suitable for diesel, HVO, biodiesel & AdBlue®
-
Fuel management for 1 pump, max 4,000 users
-
230V power, wall or tank mountable
-
First-year cloud hosting & remote support included; annual renewal available
-
FMS stores up to 10,000 transactions
-
Assign/lock vehicle tags & driver codes (proximity type)
-
Preset litre amounts per vehicle, odometer entry option
-
Override switch inside locked main door
-
Works with existing or optional pulse meter (1–1000:1 ratio)
-
Can send messages to drivers/vehicles via terminal
Cloud Based Software
- Full reporting & service modules (not just standard reporting)
- Flexible easy to use cloud reporting
- Tag or pin code entry
- Stores up to 10,000 transactions
- Maximum users 4,000
Reporting includes:
- The dashboard gives a snapshot of your data,
- View multiple sites
- MPG, dashboard graphic view
- Stock monitoring, book stock, view book stock tank level
- Choose when your data polls, max every hr, min once a day
- Shows the last connection date in the inventory menu
- All graphs & reports are customisable
- Export reports to .PDF/.CSV files
- Set high & low level warnings with email alerts
- Email alert if it drops offline (GSM option only)
- Remotely set up, edit, & deactivate tags & deactivate unit
- Restrict vehicles or drivers to specific sites or fuels
- Limit the amount that can be dispensed
- Assign transactions to a cost centre (not for resale of fuel)
- To calculate MPG request an odometer reading in miles/km or hrs
Allows the user to view
- MPG reports
- Fuel used per vehicle/driver
- Vehicle groups or departments
- Transaction totals
- Information by selecting a date range
- An operator by date or vehicle
- An individual vehicle by date or operator

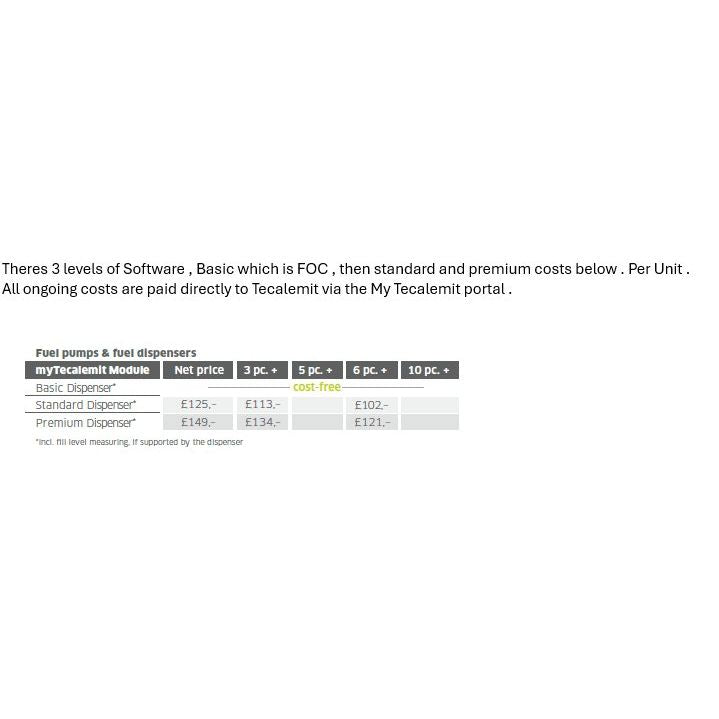

Ongoing costs after year 1
- Main site cloud based software management hosting contract fee - 12 months
- No SIM card costs as no modem is required as this downloads data using the USB download stick provided with cloud software
