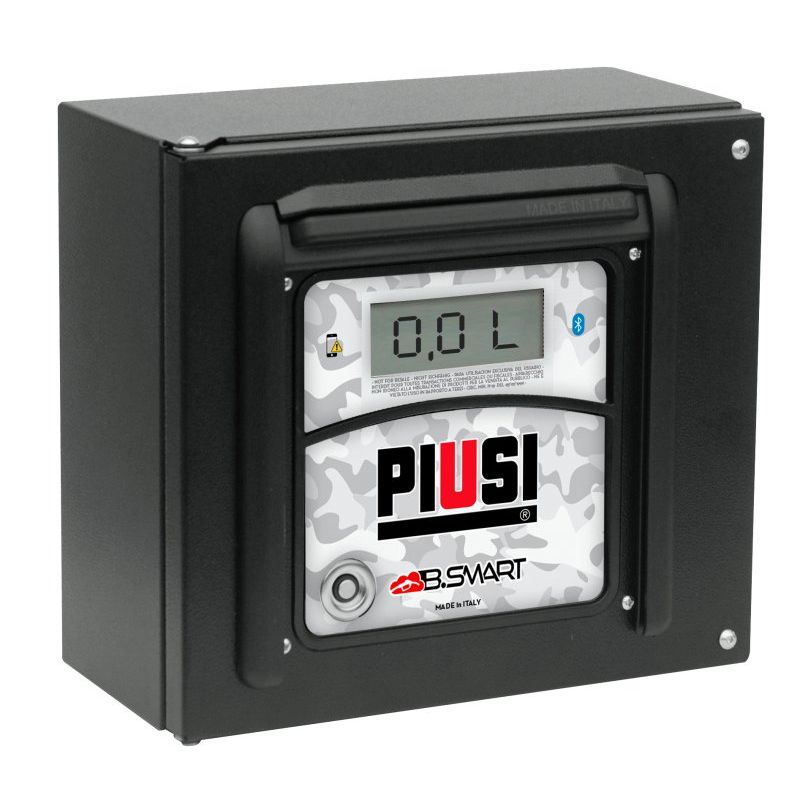

Piusi MC BOX B.Smart Fuel Management System
The Piusi MC Box B.SMART is an industry recognised, “add on” fuel monitoring unit able to be retrofitted to existing pumping installations that don’t need replacing.
B.SMART is the first cloud-based fuel management system from Piusi, providing managers with real time and remote data on their fuel use online. The way the B.SMART works is by using a licenced app on the users IOS or android mobile device to activate the dispensing via Bluetooth, and its network to send the data to the cloud once the transaction is complete.
This fuel management system enables the real time monitoring of multiple dispensers across unlimited geographical sites through a single user-friendly online web portal via the PC, tablet or smartphone. This eliminates the need to compile multiple reports or visits all the sites the B.SMART is operating in.
Please click here for an easy to understand video on the B.SMART unit
To help understand the set up process and understand a little more about this system please click here.
Features
- Cost effective management panel to retrofit to existing dispensers
- Records data from user, date/time, vehicle, dispenser, site & QTY
- Limits access to authorised app users to control who can dispense
- Real-time data viewed remotely via cloud-based web portal from any PC, tablet or smart phone
- No software install, network cables or ongoing subscription fees
- Facility to record vehicle registration number & odometer readings
- Ability to pre-set dispensing volume or to complete fill from the app
- Set up pulse input in the online portal for use with any pulse meter
- 2 pump version for managing two tanks e.g. red diesel/diesel or adblue/diesel
- c/w licences for 20 drivers. 10 driver version also available, or more licences can be purchased separately
| Code | Description | Voltage | Duty Cycle | Pulse Input (pp/l) | User Licenses |
| F00599050 | MC Box B.SMART 12v 20 Licence | 12V | 30 mins | Any | 20 |
| F00599070 | MC Box B.SMART 24v 20 Licence | 24V | 30 mins | Any | 20 |
| F00599040 | MC Box B.SMART 230v 20 Licence | 230v | Any | 20 | |
| F00599240 | MC Box B.SMART 230v 20 Licence 2 Pump Version | 230v | Any | 20 |
Optional Extras (many included in 'Complete Kit'):
- K600 Pulse Meter
- Downloadable Software (Hardwired or Key Reader)
- Software on USB (Hardwired or Key Reader)
- Manager Key
- User Keys (pack of 10)
'Complete' Versions include:
- Either Software as download or on USB
- 10 User Keys
- 1 Manager Key
- Flow Meter - K600 (Diesel)
Please Note - If MC Box Only Is Required Then A Pulse Meter Will Be Required To Enable The System To Read The Fuel Correctly. This Will Digitally Count The Fuel With A Pulse Ratio Which Is Then Sent To The MC Box And Converted Into A Numerical Value Showing The Litres Dispensed. Different Flow Rates Will Require Different Pulse Meters. The K600/3 Supplied In The Complete Systems Are Suitable For Flow Rates Of 10 - 100 lpm
* Real time is only available in areas where Wi-Fi or mobile nework is available. Otherwise, data will be synchonised once the netwrok becomes available.
Specifications
| Product Ref | CT |
|---|---|
| Lead time (working days) | 3 |
