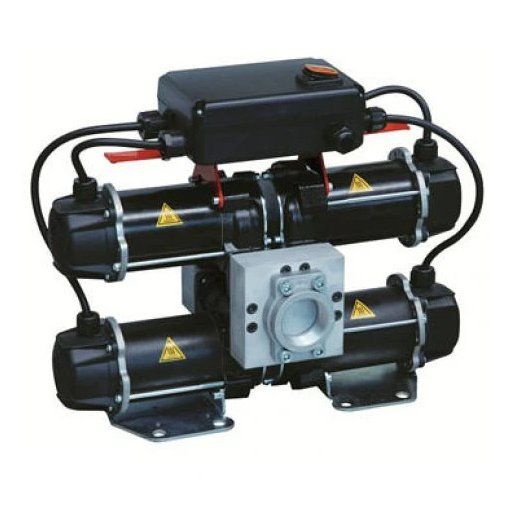

Piusi ST 200 24v Diesel Transfer Pump
The Piusi ST200 DC diesel transfer pump is a high flow rate, portable refueling unit for heavy duty environments. This pump consists of four BP3000 pumps, providing the user to benefit for a flow rate of 185lpm. The ST200 fuel transfer pump is therefore suitable for the filling of large vehicles and plant equipment where a hight flow is required. Due to their four meter long electric cables and clips, these transfer pumps are an ideal solution where mains supply is difficult.
Specification:
- 4 x self-priming diesel transfer pumps
- Sintered steel rotor & acetal resin vanes
- 4m cables and clips
- Ceramic graphite mechanical seal
- 20min on/40 min off duty cycle
- Protection grade: IP55
- Cast iron pump body
- Integrated bypass valve & on/off switch
- 2 carry handles
- Flow rate: 185ltr Per Min
- 1 1/2" BSP flanged inlet/outlet
- 24v
Specifications
| Product Ref | CTS |
|---|---|
| Volume (litres) | 2,700 |
| Length (mm) | 2,450 |
| Width (mm) | 1,250 |
| Height (mm) | 1,450 |
| Weight (kg) | 400 |
| Lead time (working days) | 3 |
