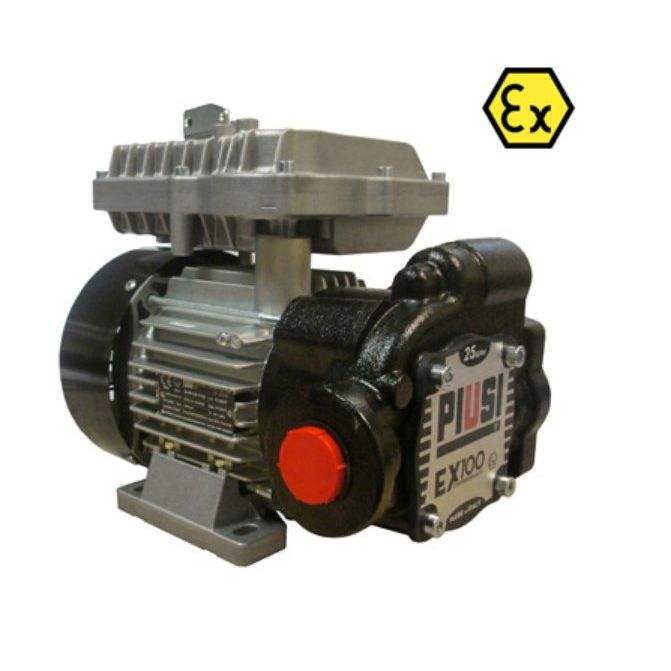

Piusi EX100 Fuel Transfer ATEX Pump
The EX100 fuel transfer pump from piusi is a heavy duty, self-priming rotary vane pump with ATEX approval. Boasting a higher flow rate than other models in the piusi ATEX range, the EX100 fuel transfer pump has been designed for quick refilling of larger vehicles and machinery in zone one environments.
Primarily used as a petrol or diesel transfer pump in hazardous environments, the EX100's versatility allows it to be used with kerosene, AVGAS, AVJET, Aspen 2 and Aspen 4. Italian quantity manufacturing and a cast iron body provides reassurance for a long working life in both static or mobile dispensing system.
Designed for fuel dispensing and transfer, not fuel recirculation systems
Please note: The suction hose must be 1 1/2", delivery hose must be 8m max.
Featured
- 230v Pump
- Explosion Proof for diesel, petrol and kerosene
- Maximum flow rate: 100ltr per min
- Max lift of 3 meters and 6 meters horizontal, and the delivery can only be 8 meters max
- Continuous running in open flow
- Cast iron construction
- IP55 protection rating
- Suitable for AVGAS, AVJET, Aspen 2 and Aspen 4
- Integrated bypass valve
- On/off switch
- ATEX zone 1 certification
- Min of 1 ½” diameter suction hose
**PLEASE NOTE: POWER CABLES & CONNECTORS ARE DEPENDENT UPON THE INDIVIDUAL RISK ASSESSMENT FOR THE CONNECTION METHOD BETWEEN THE ATEX PIUSI FUEL PUMP AND POWER SOURCE. THIS PUMP DOES NOT COME WITH POWER CABLES AND END USER MUST SUPPLY THEIR OWN AFTER THE CORRECT ATEX RISK ASSESSMENT HAS BEEN COMPLETED**
Specifications
| Product Ref | CT |
|---|---|
| Weight (kg) | 0 |
| Lead time (working days) | 3 |
