Oil Tank Sight Gauge - Atkinson Tankmaster
Oil Tank Sight Gauge - Atkinson Tankmaster
Estimate delivery costs
Your postcode lets us show accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it isn't stored or shared.
Couldn't load pickup availability

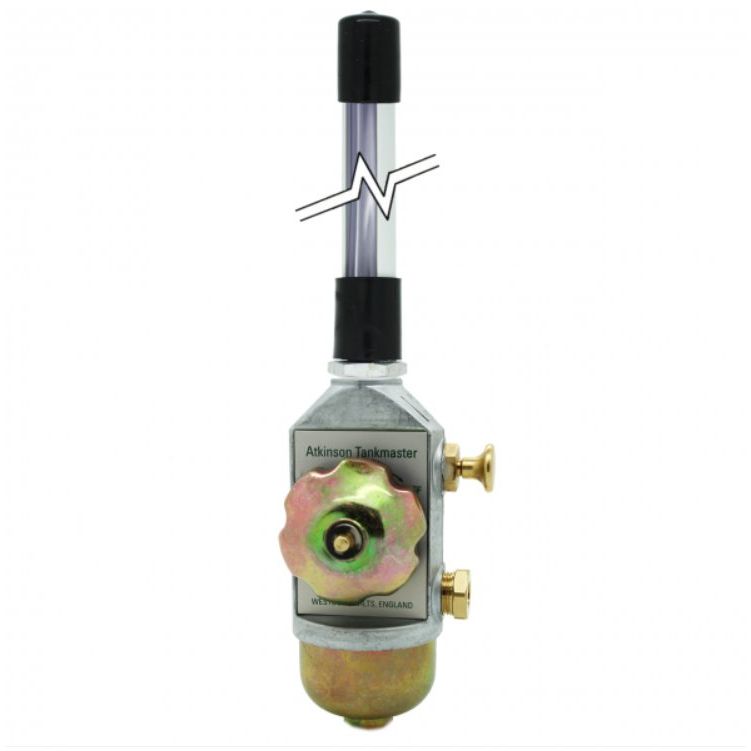

Oil Tank Sight Gauge - Atkinson Tankmaster Valve 4-in-1 Sight Gauge
Basic visual sight gauge for single skin oil tanks with an integral oil filter, shut off valve & fire valve. Choice of sight gauge sizes to suit most tanks (4ft 6" to 10ft).
Manual 4-in-1 level gauge for single skin tanks:
1 - Control valve to turn on/off oil supply
2 - Pull to read valve/sight tube allows inspection of tank contents level
3 - Integral filter to ensure only clean oil is allowed to pass from the tank
4 - Self-closing hand wheel isolates oil supply in case of fire near the tank;
Atkinson Tankmaster Features
- PVC Sight Gauge
- Pull-To-Read valve to isolate flow into tube during rest
- On/Off Handwheel
- Eutectic Solder Fire valve built into handwheel
- 10mm Brass Compression fitting outlet
- 52 Micron Nylon Filter (Replaceable)
- Reversible body for left or right-hand exit of compression fitting
- Stand-off Clip for mounting top of tube to top of tank
- 1/2" BSP Male Tank Fitting (if fitting to a 1" outlet, you will need an extension piece - see below)
- Mounting kit, for top of sight tube
- Full instructions

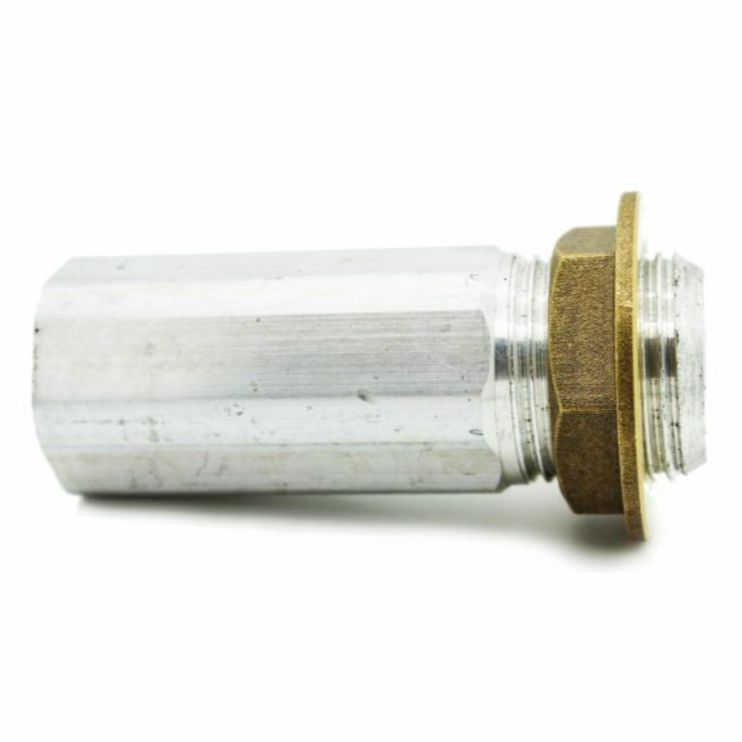

Tankmaster Adaptor (Extension Pieces)
- Required for fitting to 1" BSP outlets (as Tankmaster body is 1/2")
- Required for plastic tanks (when fitting to a plastic tank, the outlet will be recessed - you will require an extension fitting to ensure the Atkinson Tankmaster Valve does not foul the end of the tank and prevent installation)
- Available in 1", 3 1/2", 6 1/4" and 7 1/4" (1" BSP Male Tank fitting/lock-nut at one end and 1/2" BSP Female at the other end - select your required length from the options)
Tip: Sight Gauges should not be fitted to bunded tanks; however, they may be used on any single skinned tank or in any area that is protected by a bund.
