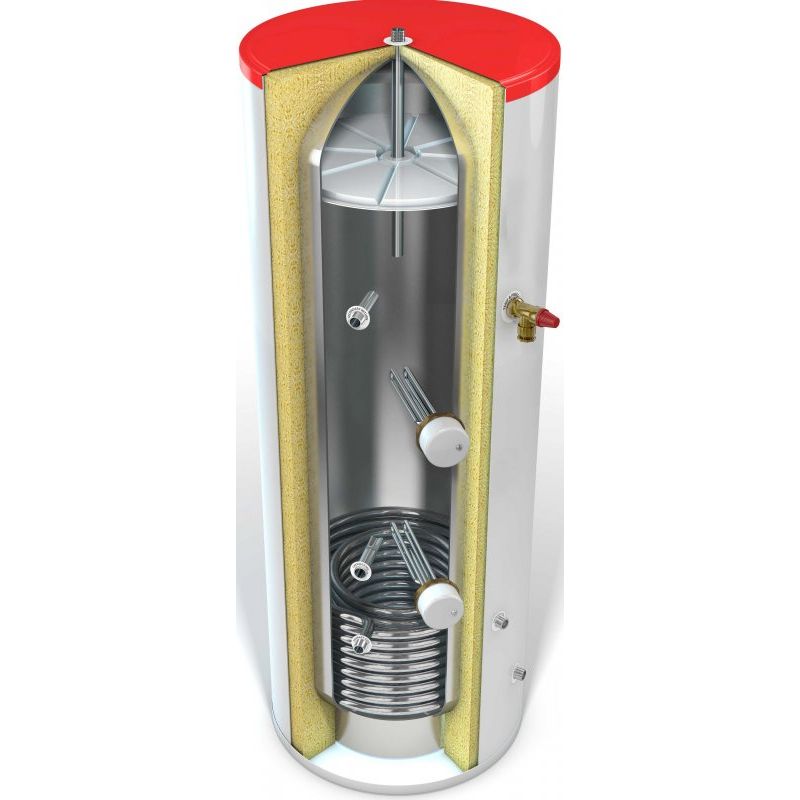

JAB DUC IE Compact 90L Indirect Internal Expansion Unvented Hot Water Cylinder
The JAB DUC IE 90L Indirect Internal Expansion Unvented Cylinder is a compact, high-performance hot water storage system designed for modern domestic applications where space, efficiency, and reliability are key.
Constructed from high-grade duplex stainless steel, this 90-litre cylinder offers excellent corrosion resistance and long-term durability. It's engineered for mains-pressure hot water delivery. Providing powerful flow rates for showers, taps, appliances without the need for a cold-water storage tank.
The Internal expansion design eliminates the requirement for an external expansion vessel, simplifying installation and saving valuable space - making it ideal for small homes, apartments, and en-suite systems. The indirect coil connection allows the unit to be heated by a boiler or renewable heat source, with an immersion heater connection for backup heating.
Applications
- Domestic properties requiring mains-pressure hot water
- Homes using a system or regular boiler (not combi boilers)
- Installations where Space is limited and an external expansion vessel is undesirable
- Upgrading from vented systems (loft tank) to modern, sealed unvented systems
- Properties needing energy-efficient, corrosion-resistant stainless steel cylinders
- Full compliance with UK Building Regulations G3 (installation by G3-qualified engineer required)
- Typical use: 1-Bedroom flats or small apartments with 1 bathroom.
Key Features & Benefits
- 90-Litre Capacity - 90-litre stainless steel unvented cylinder
- Stainless steel construction for long life and corrosion resistance
- Indirect coil for use with boiler systems
- Internal expansion system - no separate vessel required
- Factory-Fitted insulation for reduced heat loss
- Compact Design ideal for tight spaces
- Suitable for use with system and regular boilers
- Fully compliant with G3 Building Regulations
- Space Saving Installation - Built-in expansion chamber simplifies setup
- Strong Mains-Pressure Performance- Consistent flow for showers and multiple outlets
- Reduced Installation Time - Fewer components and fittings required
- Energy Efficient - Excellent insulation minimises standing heat loss
- Low Maintenance - Minimal servicing required compared to external systems
- Renewable Ready - Compatible with heat pumps and solar thermal (check model suitability)
- 25-Year Warranty - Including One Year On-Site Warranty
- U.K. Manufactured
How it works
- Colds Mains Feed: Water enters directly from the mains supply, ensuring high-pressure delivery throughout the home.
- Indirect Coil Heating: A boiler (or renewable source) transfers heat through the internal coil, warming the stored water
- Internal Expansion Control: As the water heats and expands, the built-in air gap inside the cylinder absorbs pressure changes - removing the need for an external expansion vessel
- Hot Water Storage: Heated water is stored in the insulated stainless steel cylinder, ready for on-demand use
- Backup Immersion Heating: The immersion heater provides secondary or off-peak heating when required
Specifications
| Product Code | DIEC090i |
| Nominal Capacity (L) | 90 |
| Height (mm) | 750 |
| Diameter Ø (mm) | 550 |
| Cold Inlet | 186 |
| Heating Flow | 180 |
| Return | 220 |
| Control Stat | 340 |
| Immersion | 270 |
| T+P Valve | 326 |
| ERP Energy Band | B |
| Standing Heat Loss (W) | 43 |
| Standing Heat Loss kWh/24h | 1.04 |
| Coil rating (kW) | 17.18 |
* Please note, the image is for visual purposes only and may be slightly different upon arrival
Specifications
| Product Ref | HWS |
|---|---|
| Volume (litres) | 90 |
| Diameter (mm) | 550 |
| Height (mm) | 750 |
| Lead time (working days) | 7 |
