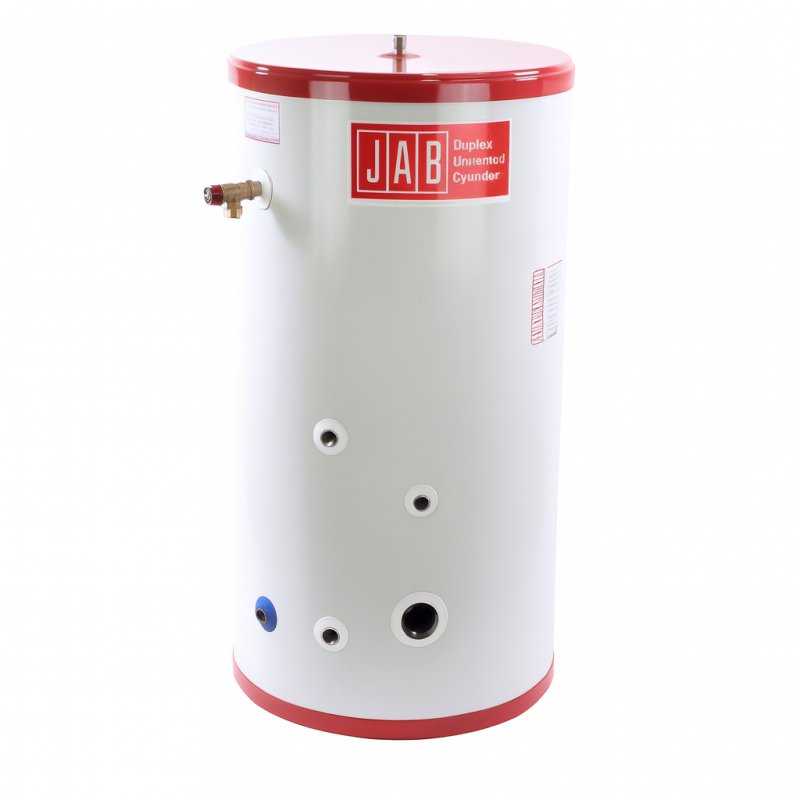

JAB DUC 2 150L Indirect Unvented S/S Cylinder
The JAB DUC 2 150L Indirect Unvented Stainless Steel Cylinder is a high-performance domestic hot water storage cylinder designed to deliver reliable, mains-pressure hot water to taps, showers, and appliances throughout the home.
Constructed from high-grade duplex stainless steel for durability and corrosion resistance, the DUC 2 provides long service life with minimal maintenance. Its compact 90-Litre capacity makes it ideal for smaller homes, apartments, and en-suite systems, while the unvented design eliminates the need for a cold-water storage tank - freeing up valuable loft space and providing powerful water pressure at every outlet.
This indirect model is designed to be heated by a gas or oil boiler, with an additional immersion heater connection for backup or off-peak heating.
Designed with installation in mind, allowing most existing airing cupboards to be used. The ideal choice for the replacement of standard copper cylinders.
Applications
- Domestic and light commercial properties
- Properties seeking mains-pressure hot water without loft tanks
- Homes using a gas or oil boiler for water heating
- Modernisation or replacement of traditional vented systems
- En-Suite bathrooms or low-profile hot water installations
- Ideal for properties with limited space
- Typical use: 2-Bedroom home, 1 Bathroom, Occasional shower use
Key Features & Benefits
- 150-Litre Capacity - 150-litre stainless steel unvented cylinder
- Indirect coil for boiler connection
- Factory-Fitted high-performance installation
- Factory tested to meet G3 Building Regulations
- High-Pressure Performance- Delivers strong, consistent mains-pressure hot water
- Compact Design - Space-saving cylinder ideal for cupboards, lofts, or utility rooms
- Efficient heating - Fast heat recovery from connected boilers
- Durable Stainless Steel Build - Corrosion-resistant for long service life
- No Cold-Water Tank Required - Saves loft space and simplifies installation
- Energy-Efficient - Advanced insulation reduces heat loss and energy costs
- Compliant and Safe - Supplied with all safety controls and G3 Certification
- 25-Year Warranty - Including One Year On-Site Warranty
- U.K. Manufactured
How it works
- Colds Mains Supply: The cylinder takes in cold water directly from the mains supply
- Primary Heating: The indirect coil inside the cylinder is heated by your central heating boiler, transferring heat to the stored water
- Hot Water Storage: The heated water is stored in the stainless-steel vessel, ready for use
- Backup Heating: An immersion heater can be used as an alternative or secondary heat source
- Mains Pressure Delivery: Hot water is supplied to outlets at mains pressure, ensuring strong flow rates and consistent temperature.
Specifications
| Product Code | JD2150i |
| Nominal Capacity (L) | 150 |
| Height (mm) | 1075 |
| Diameter Ø (mm) | 510 |
| Empty Weight (kg) | 38 |
| Full Weight (kg) | 187 |
| Standing Heat Loss (kWh/24h) | 1.85 |
| Reheat Time from 10°C to 60°C | 37 |
| Actual Capacity (L) | 149 |
| Standing Loss (W) | 77 |
| Energy Efficiency Class of Model | C |
| Operating Pressure (bar) | 3 |
| Immersion Heater Rating | 3kW 240v |
| Max Incoming Supply pressure (bar) | 12 |
All indirect units are supplied with:
- 1 x Dual Stat. And high Limit Stat
- 1 x 3kW 240v s/p Immersion heater
- 1 x Expansion Vessel
- 1 x T & P Relief Valve
- 1 x 3 bar Inlet Chain
- 1 x Two Port Motorised Valve
* Please note, the image is for visual purposes only and may be slightly different upon arrival
Specifications
| Product Ref | HWS |
|---|---|
| Volume (litres) | 150 |
| Diameter (mm) | 510 |
| Height (mm) | 1,075 |
| Lead time (working days) | 7 |
