PRODUCT REF · SDF-RT-650/220L
Dymac Setanta Dual Fluid - 650/220L Road-Tow
Dymac Setanta Dual Fluid - 650/220L Road-Tow
Estimate delivery costs
Your postcode lets us show accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it isn't stored or shared.
Couldn't load pickup availability

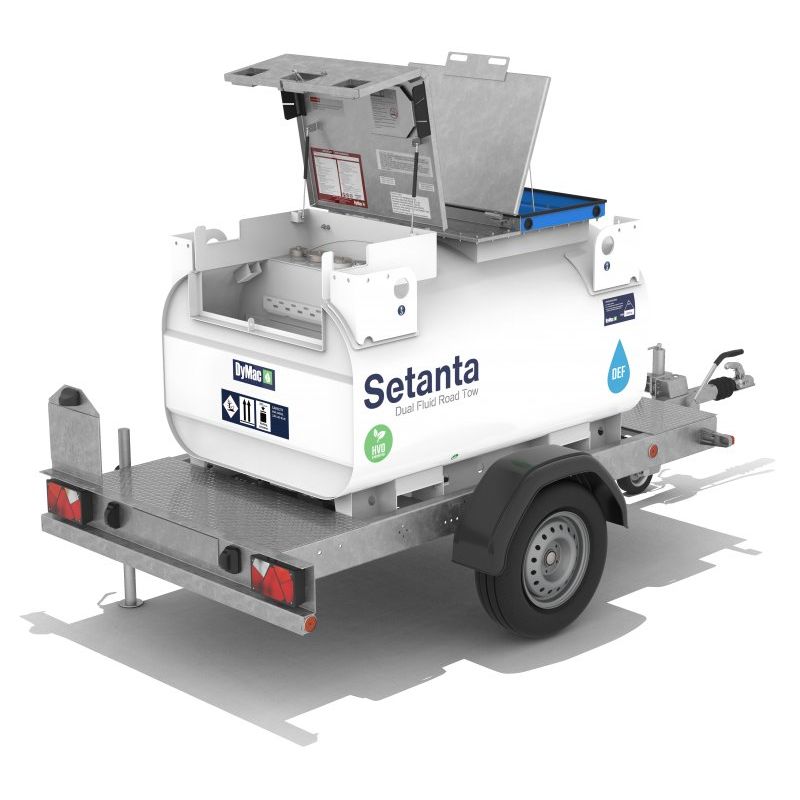

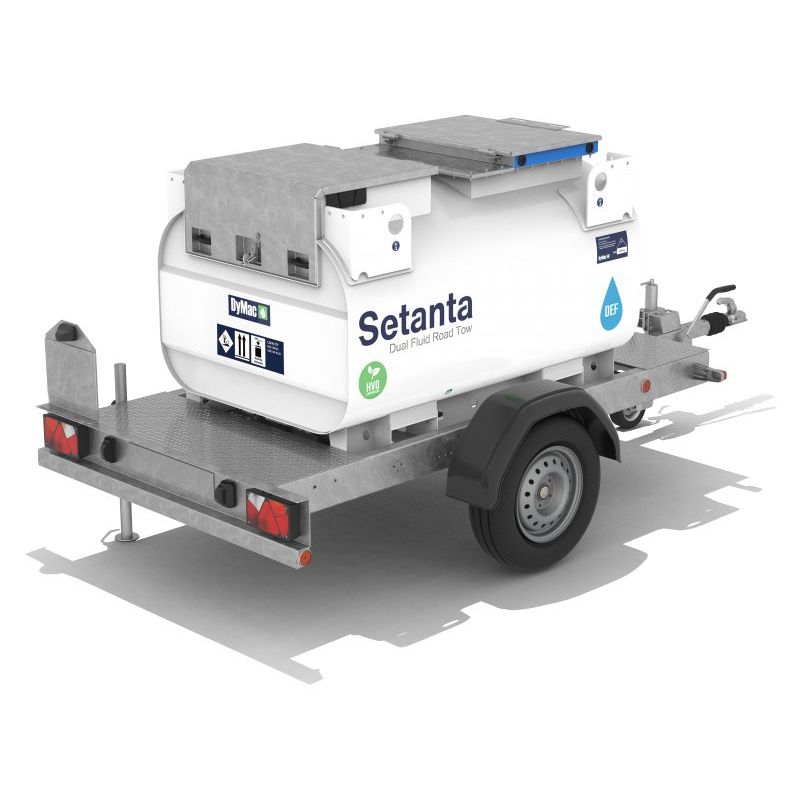

Dymac Setanta Dual Fluid - 650/220L Road-Tow with Cabinet and Pump pack
The Setanta Dual Fluid SDF-650/220L Road-Tow is the mobile, road-towable variant of the SDF-650/220L.
Built on a robust, type-approved trailer chassis, it brings the same dual-compartment capability (650L primary + 220L secondary) with the security and dispensing convenience of a cabinet and pump pack, enabling safe transport and on-site refuelling between remote worksites.
Recommended Applications
- Mobile contractors, agricultural contractors and plant hire moving fuel and additives between sites
- Emergency response teams needing portable two-fluid refuelling capability
- Forestry, civil and roadworks where mobile refill of diesel + DEF or diesel + oil is required
The Dual Fluid comes complete with:
- FILL VENT - 1x 2" BSP Galvanised External Threaded Pipe with 2" BSP Cap.
- FILL - 1x 3" BSP Galvanised External Threaded Pipe with 3" BSP Fusible Cap.
- P.VENT - 1x 2" NPT Internal Threaded Coupling with 2" Pressure Vent.
- LEVEL GAUGE - 1x 1.5" BSP Internal Threaded Coupling with Level Gauge.
- SPARE - 1x 1.5" BSP Internal Threaded Coupling with 1.5" MS Galvanised Plug.
- FEED - 1x 1.5" BSP Pipe Block with 1 port & Galvanised Metal Stopper, 1" Feed Downpipe with 1" HDPE NRV & 1.5" Internal Threaded Coupling.
- E.VENT - 1x 1/4" BSP Internal Threaded Coupling with 1/4" LEV (actuator).
- PUMP ANTIPHON - 1x 1/8" BSP Internal Threaded Coupling with 1/8" MS Galvanised Plug.
- 3 YEAR build warranty for the tank and 1-Year warranty on the paint coating
Secondary DEF insert tank ports & fittings plate specifications:
- 0.75” BSP Breather Vent To dispensing nozzle
- Pump suction 0.75” BSP Spare
- 0.5” BSP Dipstick
- 0.75” BSP Spare
- 0.75” BSP Spare
- 0.5” Suction line assembly
- 2” BSP Fill Vent
Key Features & Benefits
Road-Legal Two Chassis
with reinforced drawbar and lighting harness for safe highway travel
Integrated Bunding and Clampable Fill Points
to meet on-road containment expectations
Pump Pack & Cabinet
supplied ready for field use - locked cabinet secures pump during transit
Robust Suspension and Braking Options
to handle loaded towing
Quick Deploy
Unhitch, stabilise and dispense within minutes
Certified to:
UN31A/Y & ADR approved for transporting on all major motorways when full of fluids. CE marked.
Specifications
| Baffle Thickness | 2mm |
| Nominal Capacity | 670 Litres |
| Safe Fill Capacity | 637 Litres |
| Dry Weight | 645 kg |
| Length | 1700 mm |
| Width | 1140 mm |
| Height | 1080 mm |
| Trailers Max Load | 1800 kg |
| Trailers Length | 3308 mm |
| Trailers Width | 1917 mm |
| Trailers Height | 773 mm |
| Trailer Weight | 280–305 kg |
220L DEF HDPE Poly plastic insert tank
| Total Capacity | 218 L |
| Length | 765 mm |
| Width | 615 mm |
| Height | 840 mm |
| Trailer Weight | 280–305 kg |
| Tank Thickness | 10 mm |
| Safe Fill Capacity | 207 L |
Specifications
| Product Ref | DYM |
|---|---|
| Volume (litres) | 220 |
| Length (mm) | 1,700 |
| Width (mm) | 1,080 |
| Height (mm) | 1,140 |
| Weight (kg) | 637 |
| Lead time (working days) | 21 |
Delivery Terms
The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page. Standard tank deliveries are "kerbside", which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.
Tanks over 2,500L — articulated lorry, customer offload
These tanks are delivered on an articulated vehicle (approximately 16.5m long × 2.6m wide × 3m high) which has no offloading on board. It is the customer's responsibility to offload the tank, which may require a telehandler or forklift.
Curtain-sided vehicles are also used, so please note that if there are obstacles or overhanging branches on the road to the delivery site, the driver may refuse to drive to the location due to the risk of damaging the vehicle. Please let us know about any obstructions before delivery so we can arrange alternative transport.
18-tonne tail-lift HGV
This vehicle is roughly the size of the largest bin lorries — approximately 8.2m long × 2.6m wide × 4m high, and often curtain-sided. If there are overhanging branches, these vehicles will not attempt the route, so a smaller vehicle should be requested.
Tanks are lowered to the ground but not positioned, as this is a kerbside delivery. If a smaller vehicle is required, email sales@fueltankshop.co.uk quoting your order number and name.
HIAB delivery
HIAB delivery is available but must be requested, and carries an additional cost. Email sales@fueltankshop.co.uk quoting your order number and name, and we'll come back to you with a price.
Accessories
Most accessories are delivered within 1–3 working days. Certain products and postcodes may take longer — check the product page for current information. If you need them sooner we can sometimes offer a next-day service; please contact us to discuss. If an item is out of stock we'll advise the expected lead time, and you're free to cancel for a full refund.
Returns Information
Customers may return items within 14 calendar days, as set out in section 7 of our Terms & Conditions.
All items must be returned unused. Refunds cannot be issued for used or previously installed items.
Please be aware that returning a tank can be complicated and expensive, so do check you're ordering the correct item — we strongly suggest checking the dimensions carefully before you buy.
How to return an item
- Complete the form on our returns page with details of your order.
- Once your request is approved, we'll issue a Returns Authorisation Number (RAN) along with instructions on how and where to return your order, and any costs involved.
- Please do not return any goods without this authorisation. Goods cannot be accepted without a valid RAN.
- Returns are not accepted at our Minehead office. Please wait until we contact you before returning anything.
Downloadable Documents
- No documents available for this product.
