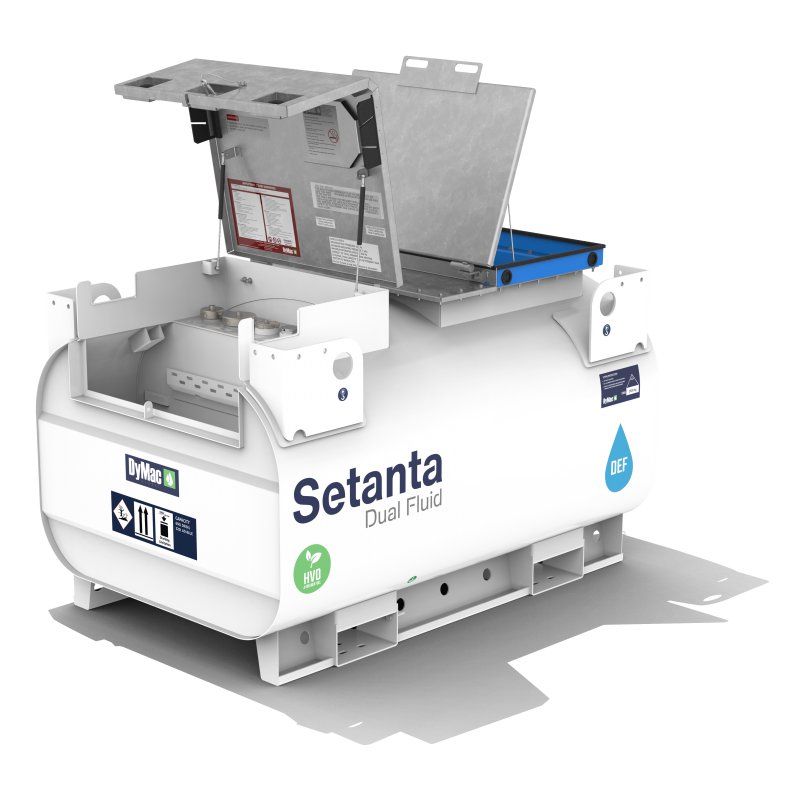

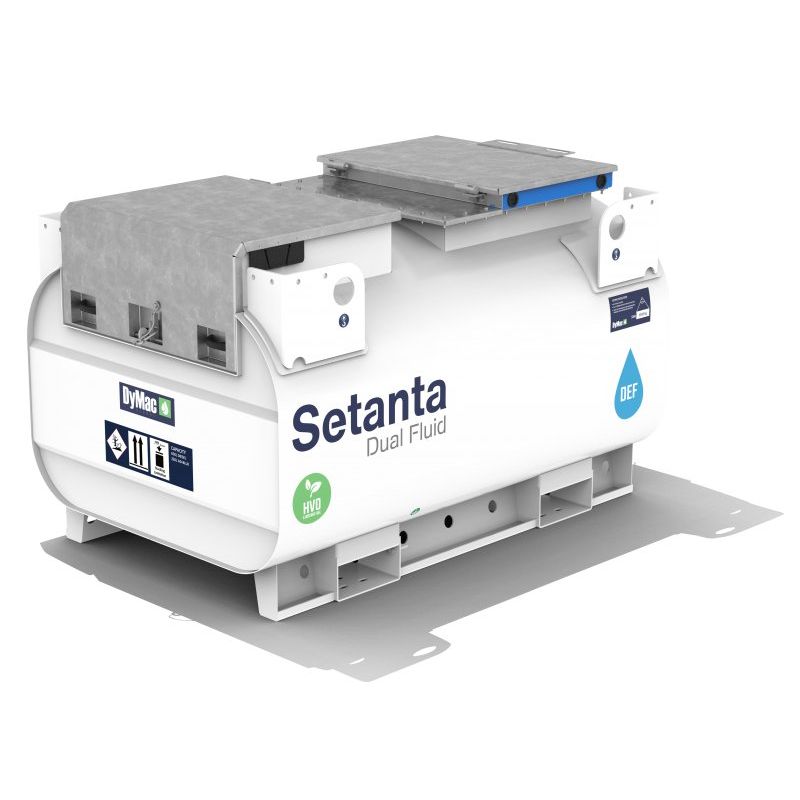

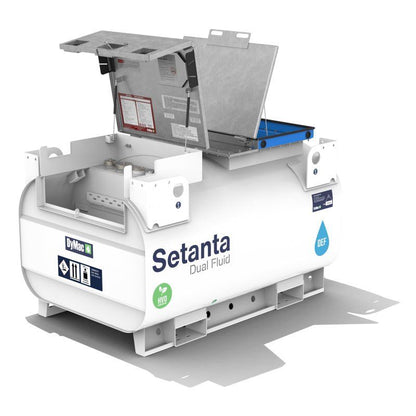

Dymac Setanta Dual Fluid - 650/220L with Cabinet and Pump pack
The Setanta Dual Fluid SDF-650/220L is a compact, professional dual-compartment storage and dispensing system designed to carry two separate liquids safely on one footprint - typically diesel/ gas oil plus an additive or second fluid (for example Ad Blue/DEF or lubricant).
The primary tank holds 650L, while the secondary, separated chamber holds 220L.
Supplied with the lockable dispensing cabinet and the matched pump package, this unit is a complete, turnkey on-site refuelling solution for workshops, small farms and plant hire fleets.
Recommended Applications
- Mixed fleet farms (tractor diesel + Ad Blue or Diesel + hydraulic fluid)
- Small commercial workshops and depots needing two-fluid capability in one unit
- Plant hire and maintenance sites where separate storage for fuel and additive is required
- Small generator/ standby setups requiring diesel + coolant or diesel + DEF top up.
The Dual Fluid comes complete with:
- FILL VENT - 1x 2" BSP Galvanised External Threaded Pipe with 2" BSP Cap.
- FILL - 1x 3" BSP Galvanised External Threaded Pipe with 3" BSP Fusible Cap.
- P.VENT - 1x 2" NPT Internal Threaded Coupling with 2" Pressure Vent.
- LEVEL GAUGE - 1x 1.5" BSP Internal Threaded Coupling with Level Gauge.
- SPARE - 1x 1.5" BSP Internal Threaded Coupling with 1.5" MS Galvanised Plug.
- FEED - 1x 1.5" BSP Pipe Block with 1 port & Galvanised Metal Stopper, 1" Feed Downpipe with 1" HDPE NRV & 1.5" Internal Threaded Coupling.
- E.VENT - 1x 1/4" BSP Internal Threaded Coupling with 1/4" LEV (actuator).
- PUMP ANTIPHON - 1x 1/8" BSP Internal Threaded Coupling with 1/8" MS Galvanised Plug.
- 3 YEAR build warranty for the tank and 1-Year warranty on the paint coating
Secondary DEF insert tank ports & fittings plate specifications:
- 0.75” BSP Breather Vent To dispensing nozzle
- Pump suction 0.75” BSP Spare
- 0.5” BSP Dipstick
- 0.75” BSP Spare
- 0.75” BSP Spare
- 0.5” Suction line assembly
- 2” BSP Fill Vent
Key Features & Benefits
Two independent, clearly labelled compartments
(650 L + 220 L) to avoid cross-contamination
Lockable Cabinet
Secure pump bay with space for filters, hose reels and metering, reducing theft & tampering
Pump Pack
Matched pump, hose and nozzle configuration optimised for the two fluids (e.g. 12/24V or 240V selection) giving sage, efficient dispensing.
Fully Bunded Base
Integrated secondary containment to protect against leaks and overspill
Compact Footprint
Fits small yards and service bays while delivering multi-fluid capability
Clear Level Gauges & Service Access
Easy to monitor and maintain
Certified to:
UN31A/Y & ADR, approved for transporting on all major motorways when full of fluids. CE marked.
Specifications
| Baffle Thickness | 2mm |
| Nominal Capacity | 670 Litres |
| Safe Fill Capacity | 637 Litres |
| Dry Weight | 645 kg |
| Length | 1700 mm |
| Width | 1140 mm |
| Height | 1080 mm |
220L DEF HDPE Poly plastic insert tank
| Total Capacity | 218 L |
| Length | 765 mm |
| Width | 615 mm |
| Height | 840 mm |
| Trailer Weight | 280–305 kg |
| Tank Thickness | 10 mm |
| Safe Fill Capacity | 207 L |
Specifications
| Product Ref | DYM |
|---|---|
| Volume (litres) | 220 |
| Length (mm) | 1,700 |
| Width (mm) | 1,080 |
| Height (mm) | 1,140 |
| Weight (kg) | 637 |
| Lead time (working days) | 21 |
