PRODUCT REF · SDF-RT-1450/350L
Dymac Setanta Dual Fluid - 1450/350L Road-Tow
Dymac Setanta Dual Fluid - 1450/350L Road-Tow
Estimate delivery costs
Your postcode lets us show accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it isn't stored or shared.
Couldn't load pickup availability

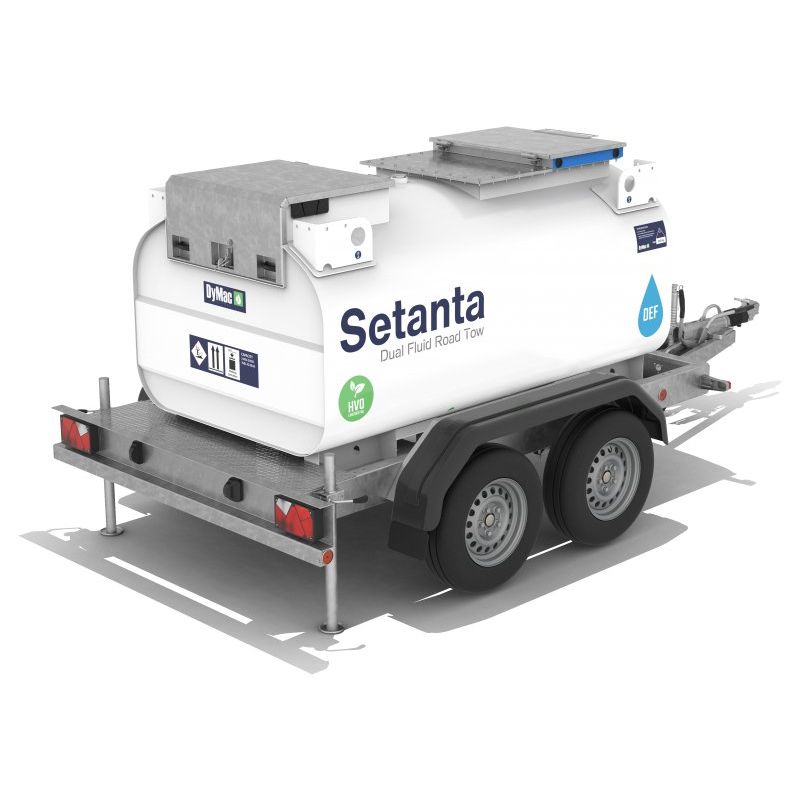

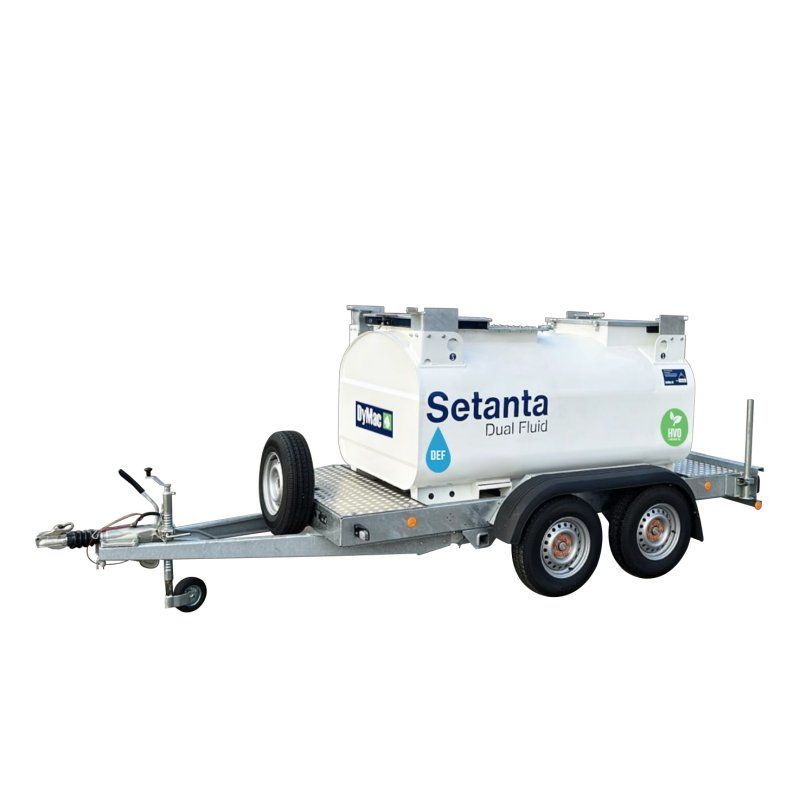

Dymac Setanta Dual Fluid - 1450/350L Road-Tow with Cabinet and Pump pack
The Setanta Dual Fluid SDF-1450/350L Road-Tow combines high capacity with mobility - delivering depot performance on the move.
With a 1450L primary and 350L secondary compartment, plus the cabinet and HDPE poly plastic insert tank, this road-towable Bowser is perfect for contractors who must transport large fuel volumes and a secondary fluid (e.g. diesel + DEF) safely between sites.
Recommended Applications
- Agricultural contractors servicing multiple farms in a day
- Large plant hire companies moving fuel and DEF to job sites
- Civil engineering projects that require bulk mobile refuelling
- Emergency response or disaster recovery refuelling operations
The Dual Fluid comes complete with:
- FILL VENT - 1x 2" BSP Galvanised External Threaded Pipe with 2" BSP Cap.
- FILL - 1x 3" BSP Galvanised External Threaded Pipe with 3" BSP Fusible Cap.
- P.VENT - 1x 2" NPT Internal Threaded Coupling with 2" Pressure Vent.
- LEVEL GAUGE - 1x 1.5" BSP Internal Threaded Coupling with Level Gauge.
- SPARE - 1x 1.5" BSP Internal Threaded Coupling with 1.5" MS Galvanised Plug.
- FEED - 1x 1.5" BSP Pipe Block with 1 port & Galvanised Metal Stopper, 1" Feed Downpipe with 1" HDPE NRV & 1.5" Internal Threaded Coupling.
- E.VENT - 1x 1/4" BSP Internal Threaded Coupling with 1/4" LEV (actuator).
- PUMP ANTIPHON - 1x 1/8" BSP Internal Threaded Coupling with 1/8" MS Galvanised Plug.
- 3 YEAR build warranty for the tank and 1-Year warranty on the paint coating
Secondary DEF insert tank ports & fittings plate specifications:
- 0.75” BSP Breather Vent To dispensing nozzle
- Pump suction 0.75” BSP Spare
- 0.5” BSP Dipstick
- 0.75” BSP Spare
- 0.75” BSP Spare
- 0.5” Suction line assembly
- 2” BSP Fill Vent
Key Features & Benefits
Road-Legal, Heavy-Duty Trailer Chassis
Supporting the lager dual tanks
Secure Transport

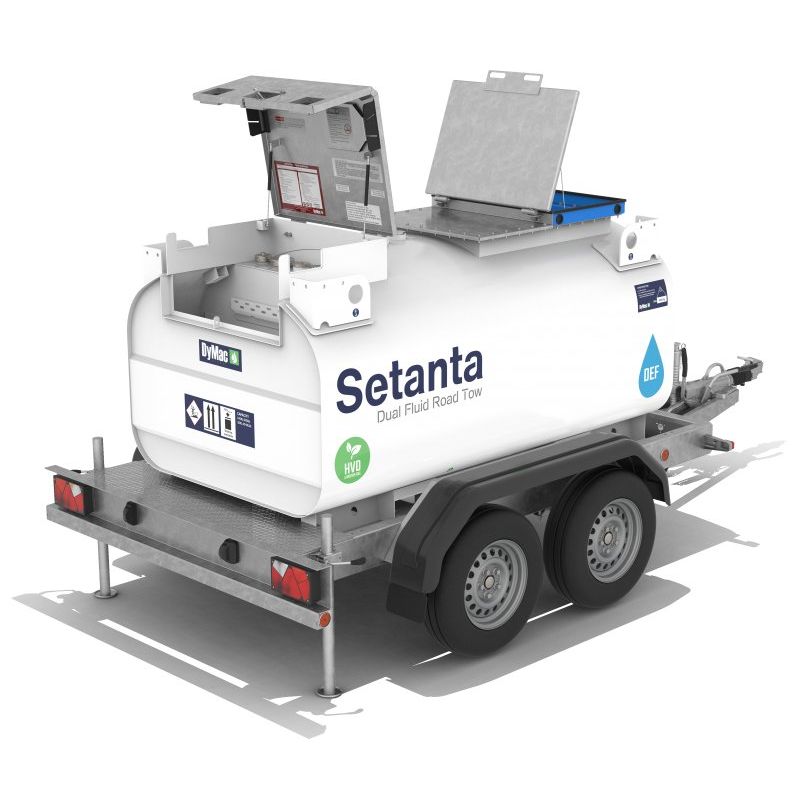

Lockable cabinets and integrated bunding reduce spill risk during travel
Stabilisation & Handling Features
Heavy-duty jacks, chocks and lifting points for safe deployment
Certified to:
UN31A/Y & ADR approved for transporting on all major motorways when full of fluids. CE marked.
Specifications
| Baffle Thickness | 2mm |
| Nominal Capacity | 1430 Litres |
| Safe Fill Capacity | 1359 Litres |
| Dry Weight | 870 kg |
| Length | 2280 mm |
| Width | 1300 mm |
| Height | 1212 mm |
| Trailers Max Load | 3500 kg |
| Trailers Length | 4200-4300 mm |
| Trailers Width | 2030-2060 mm |
| Trailers Height | 760-810 mm |
| Trailer Weight | 510-520 kg |
350L DEF HDPE Poly plastic insert tank
| Total Capacity | 362 L |
| Length | 765 mm |
| Width | 855 mm |
| Height | 962 mm |
| Tank Thickness | 10 mm |
| Safe Fill Capacity | 344 L |
Specifications
| Product Ref | DYM |
|---|---|
| Volume (litres) | 350 |
| Length (mm) | 1,300 |
| Width (mm) | 2,280 |
| Height (mm) | 1,212 |
| Weight (kg) | 870 |
| Lead time (working days) | 21 |
