PRODUCT REF · FTV-75000L
Dymac FuelTainer Versatile 75000 Litre Steel Bunded Diesel Tank
Dymac FuelTainer Versatile 75000 Litre Steel Bunded Diesel Tank
- Bio Diesel
- Diesel
- Gas Oil
- HVO
- Steel
- Bunded
Estimate delivery costs
Your postcode lets us show accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it isn't stored or shared.
Couldn't load pickup availability

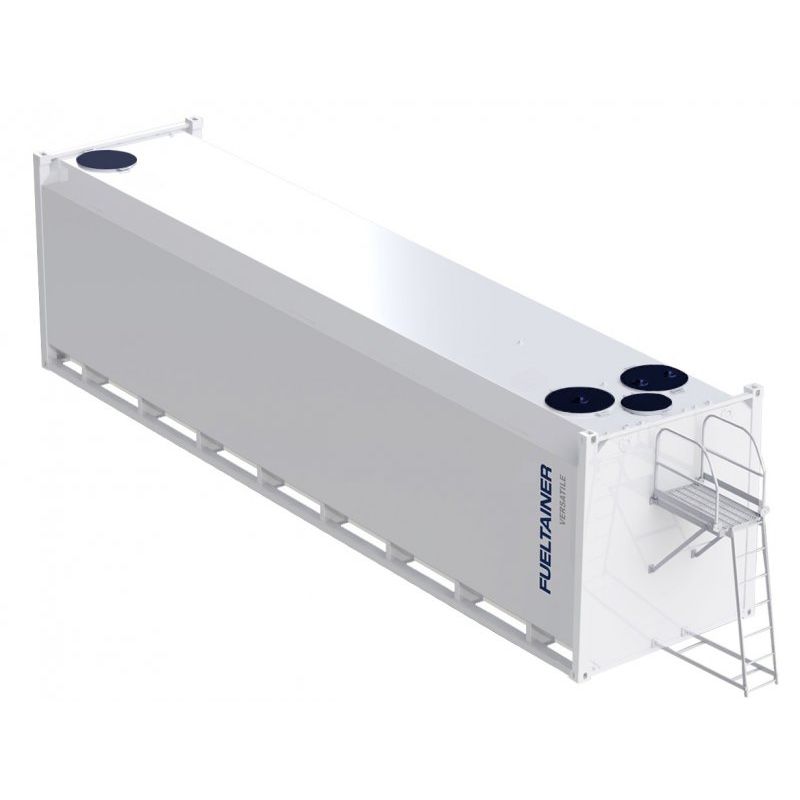

FuelTainer Versatile 75000 Litre Steel Bunded Diesel Tank
The Dymac FuelTainer Versatile tank spacious design allows for the easy fitting of various fuel management systems, suitable to meet the fuelling requirements of rental, construction, commercial, mining, military, and farming sectors worldwide.
The range is available in six sizes and can carry volumes from 12000 litres to 75000 litres. While well suited for static applications, the tank is portable when empty and can be easily adapted to support multiple applications making it the ideal choice for both large and small fuel distribution projects. The FuelTainer Versatile Tank range is ISO, CSC, UL142, ULCS601-07 & BS799 certified.
The tank features a class leading innovative double wall design that provides the safe and secure storage and dispensing of diesel. The tank can be easily up-fitted with various pump options
FuelTainer Versatile tanks have been designed to be easily transportable when empty. They come with their own ISO twist locks allowing them to be fixed onto 40 foot flat bed trucks and transported
Tank is not supplied as standard with pump. Please choose whether 12v or 230v pump is required
Specification:
- Capacity 75370 litres
- Safe fill level 73500 litres
- Length 12192mm
- Width 2438mm
- Height 2896mm
- Bund steel thickness 4mm
- Inner tank steel thickness 6mm
- Empty weight 13542kg
- Full weight 74403kg
Standard Specification:
- Fill point pipe work, valve and connections
- Venting for tank
- Access ladder & platform
- Calibrated dipstick
- Anti syphon valve (foot valve)
- 80mm tanker fill point
- Fire safe flange ball valve, camlock adaptor & cap
- Non return valve
- Mechanical overfill valve
- Internal steel pipe work
- 6" socket for mounting submersible pump

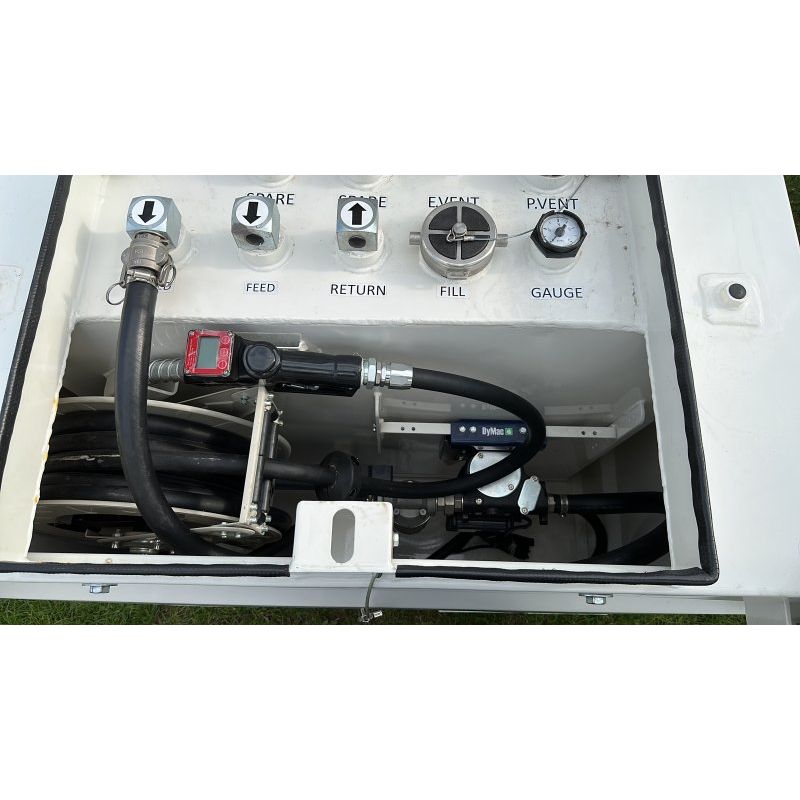

- Bunded pump bay complete with water / product drain valves
- Internal access for hoses
- Bund ventilation
- Front earth connections
- Self bunded with external tank and external bund, sloping floor design c/w corner castings
- BSP thread ports except when only NPT possible with UK equipment installed

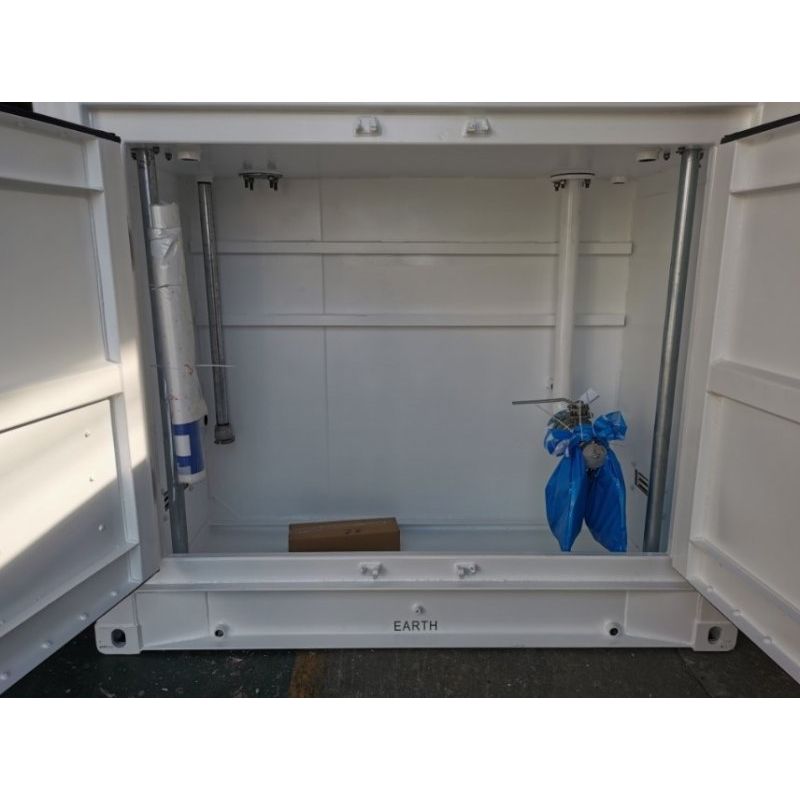

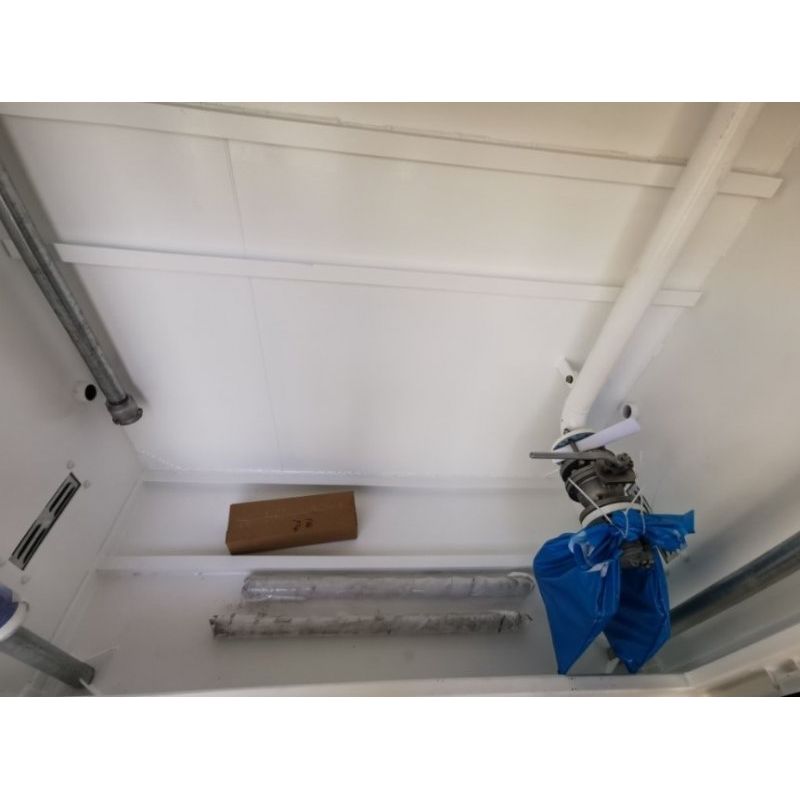

- Walk in bunded equipment compartment area, lockable pedestrian door
- Colourway RAL9016
- Internal surface cleaned & coated with light oil
Options:

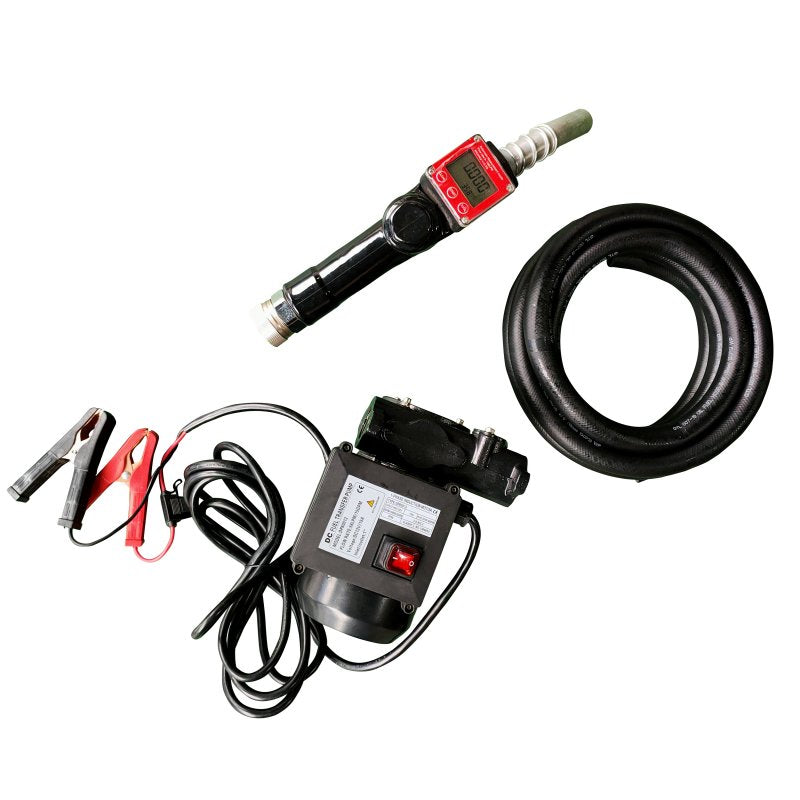

- 12v 56lpm pump supplied with 1.5m x 1" suction hose c/w camlock device, mounting bracket, 2m cable c/w crocodile clips, water and particulate filter, 4m x 3/4" delivery hose and automatic nozzle with swivel

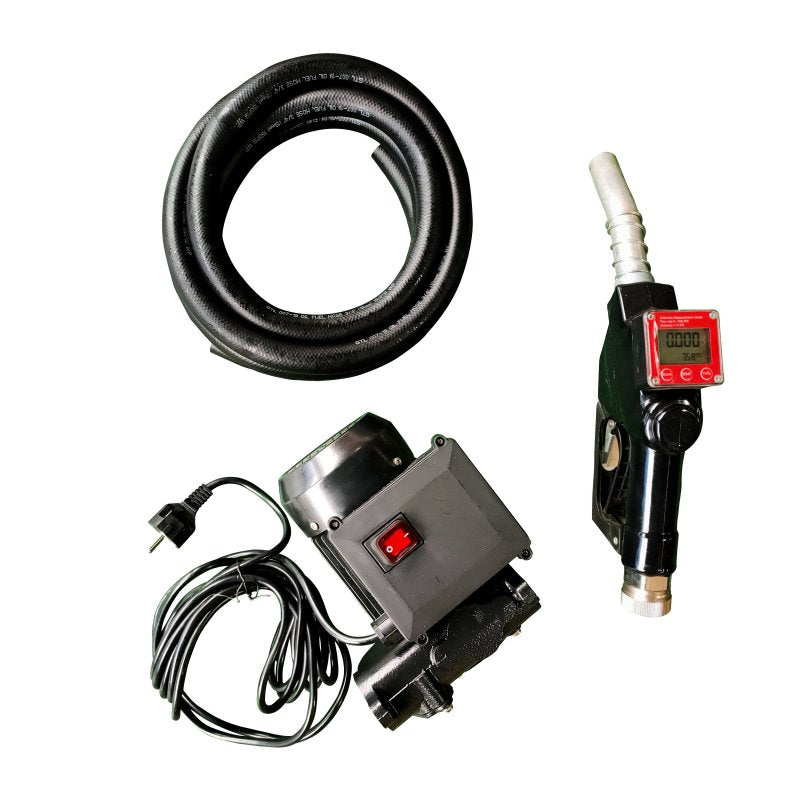

- 230v 72lpm electric pump comes with 4m 3/4" delivery hose, automatic nozzle, flow meter and filter
- 10m 3/4" retractable hose & reel which can be supplied with either pump
Specifications
| Product Ref | DC |
|---|---|
| Volume (litres) | 75,000 |
| Length (mm) | 12,192 |
| Width (mm) | 2,438 |
| Height (mm) | 2,896 |
| Weight (kg) | 13,542 |
| Lead time (working days) | 12 |
