PRODUCT REF · FTV-68000L
Dymac FuelTainer Versatile 68000 Litre Steel Bunded Diesel Tank
Dymac FuelTainer Versatile 68000 Litre Steel Bunded Diesel Tank
- Bio Diesel
- Diesel
- Gas Oil
- HVO
- Steel
- Bunded
Estimate delivery costs
Your postcode lets us show accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it isn't stored or shared.
Couldn't load pickup availability

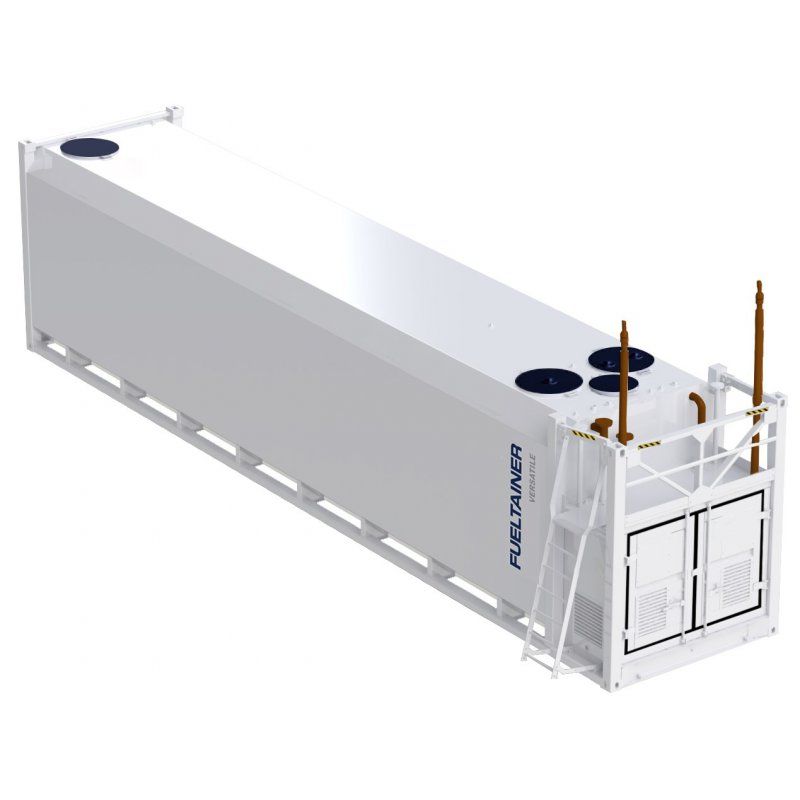

FuelTainer Versatile 68000 Litre Steel Bunded Diesel Tank
The Dymac FuelTainer Versatile tank spacious design allows for the easy fitting of various fuel management systems, suitable to meet the fuelling requirements of rental, construction, commercial, mining, military, and farming sectors worldwide.
The range is available in six sizes and can carry volumes from 12000 litres to 75000 litres. While well suited for static applications, the tank is portable when empty and can be easily adapted to support multiple applications making it the ideal choice for both large and small fuel distribution projects. The FuelTainer Versatile Tank range is ISO, CSC, UL142, ULCS601-07 & BS799 certified.
The tank features a class leading innovative double wall design that provides the safe and secure storage and dispensing of diesel. The tank can be easily up-fitted with various pump options
FuelTainer Versatile tanks have been designed to be easily transportable when empty. They come with their own ISO twist locks allowing them to be fixed onto 40 foot flat bed trucks and transported
Tank is not supplied as standard with pump. Please choose whether 12v or 230v pump is required
Specification:
- Capacity 69023 litres
- Safe fill level 65750 litres
- Length 12192mm
- Width 2438mm
- Height 2896mm
- Bund steel thickness 4mm
- Inner tank steel thickness 6mm
- Empty weight 13538kg
- Full weight 69274kg
Standard Specification:
- Fill point pipe work, valve and connections
- Venting for tank
- Access ladder & platform
- Calibrated dipstick
- Anti syphon valve (foot valve)
- 80mm tanker fill point
- Fire safe flange ball valve, camlock adaptor & cap
- Non return valve
- Mechanical overfill valve
- Internal steel pipe work
- 6" socket for mounting submersible pump

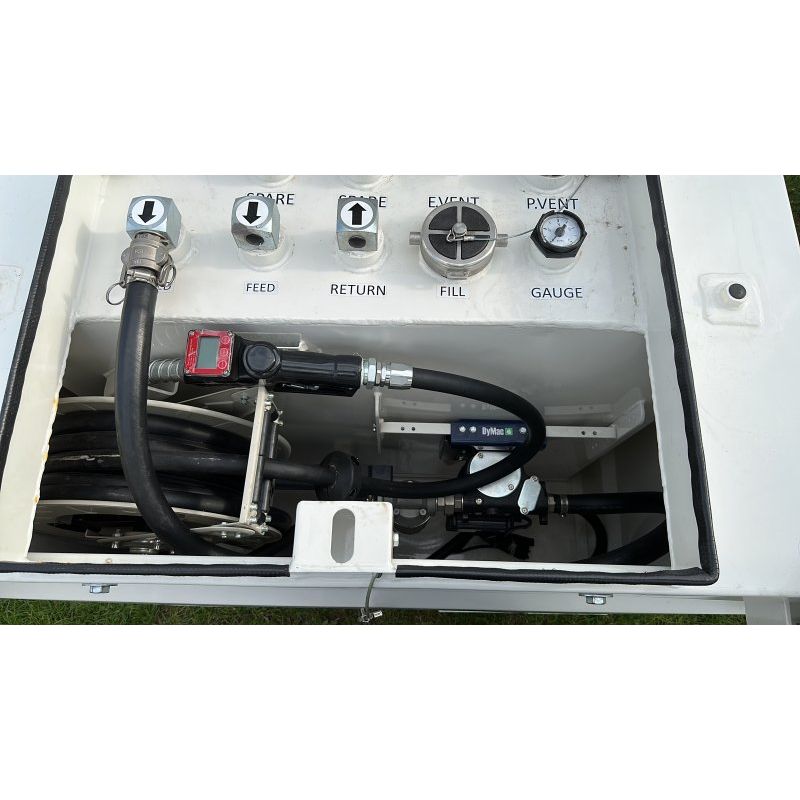

- Bunded pump bay complete with water / product drain valves
- Internal access for hoses
- Bund ventilation
- Front earth connections
- Self bunded with external tank and external bund, sloping floor design c/w corner castings
- BSP thread ports except when only NPT possible with UK equipment installed

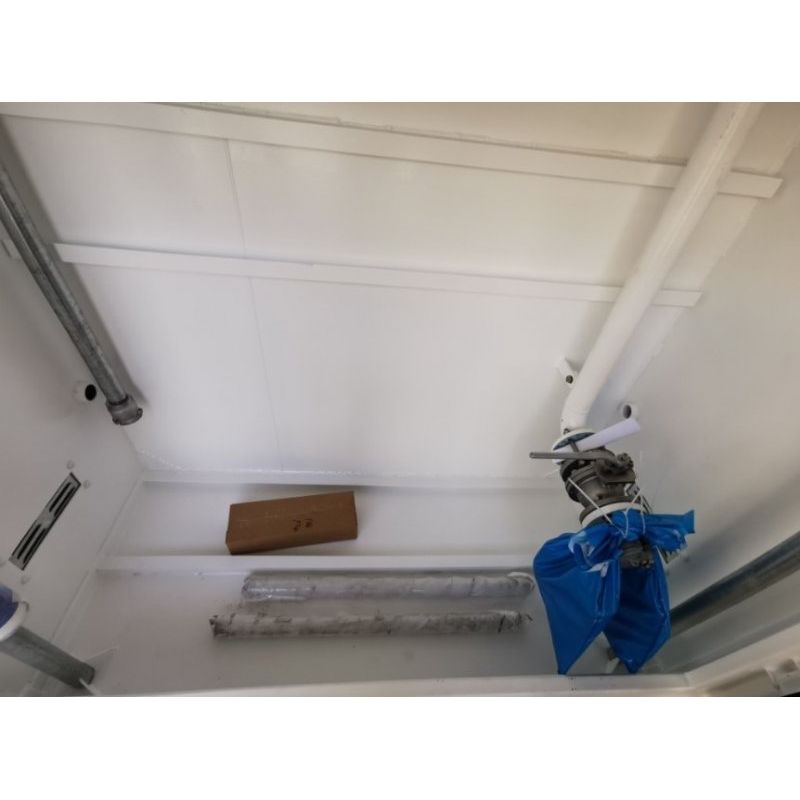

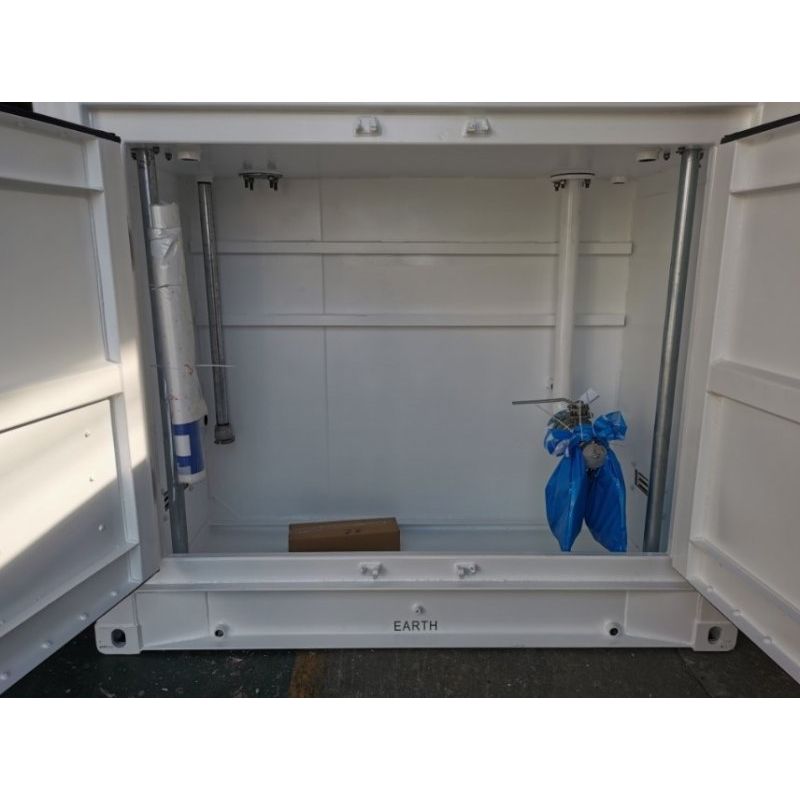

- Walk in bunded equipment compartment area, lockable pedestrian door
- Colourway RAL9016
- Internal surface cleaned & coated with light oil
Options:

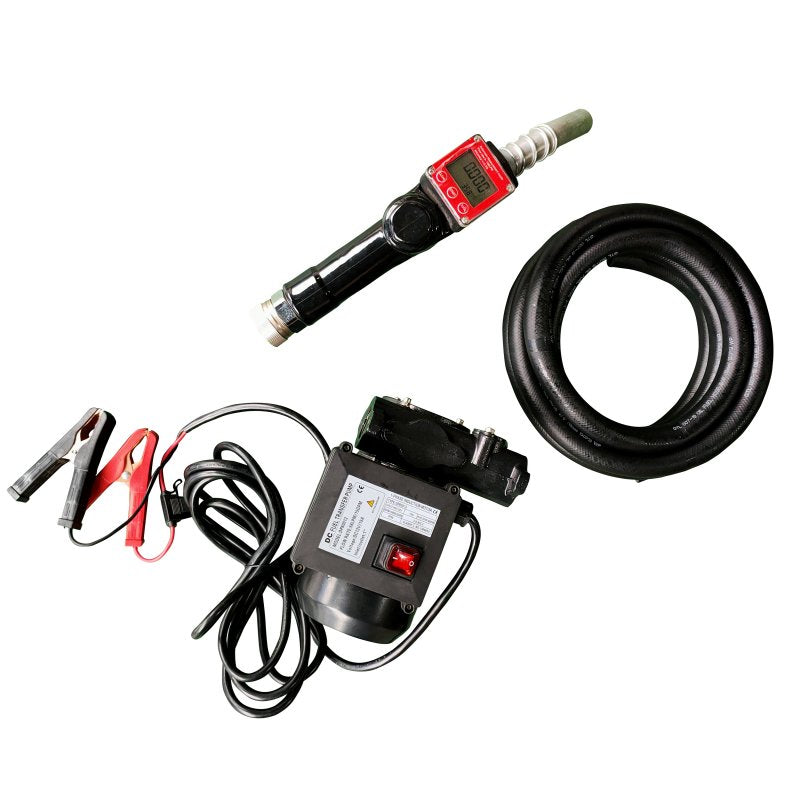

- 12v 56lpm pump supplied with 1.5m x 1" suction hose c/w camlock device, mounting bracket, 2m cable c/w crocodile clips, water and particulate filter, 4m x 3/4" delivery hose and automatic nozzle with swivel

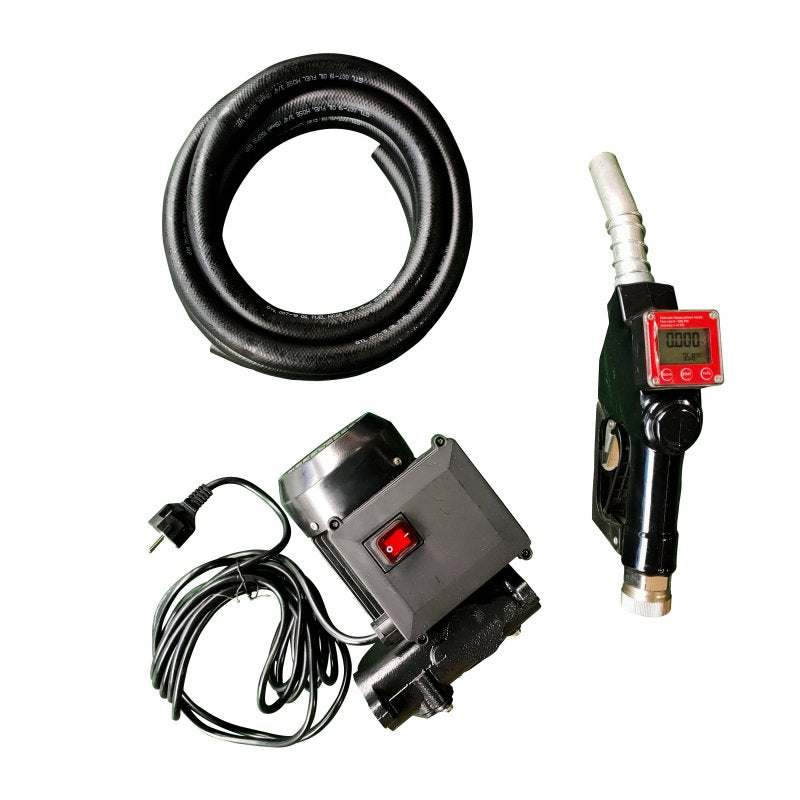

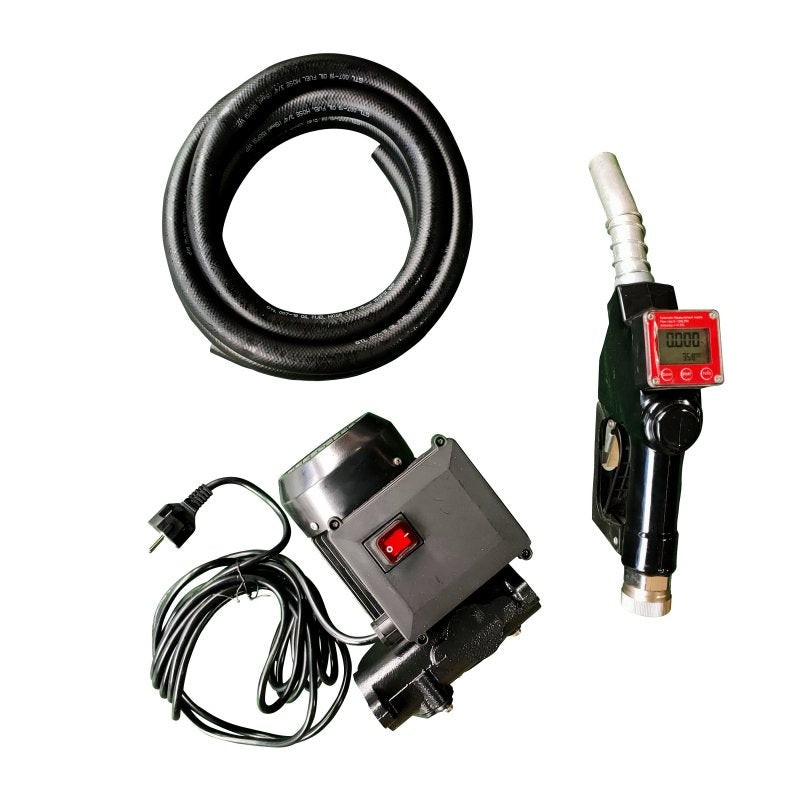

- 230v 72lpm electric pump comes with 4m 3/4" delivery hose, automatic nozzle, flow meter and filter
- 10m 3/4" retractable hose & reel which can be supplied with either pump
Specifications
| Product Ref | DC |
|---|---|
| Volume (litres) | 68,000 |
| Length (mm) | 12,192 |
| Width (mm) | 2,438 |
| Height (mm) | 2,896 |
| Weight (kg) | 13,538 |
| Lead time (working days) | 12 |
Delivery Terms
The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page. Standard tank deliveries are "kerbside", which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.
Tanks over 2,500L — articulated lorry, customer offload
These tanks are delivered on an articulated vehicle (approximately 16.5m long × 2.6m wide × 3m high) which has no offloading on board. It is the customer's responsibility to offload the tank, which may require a telehandler or forklift.
Curtain-sided vehicles are also used, so please note that if there are obstacles or overhanging branches on the road to the delivery site, the driver may refuse to drive to the location due to the risk of damaging the vehicle. Please let us know about any obstructions before delivery so we can arrange alternative transport.
18-tonne tail-lift HGV
This vehicle is roughly the size of the largest bin lorries — approximately 8.2m long × 2.6m wide × 4m high, and often curtain-sided. If there are overhanging branches, these vehicles will not attempt the route, so a smaller vehicle should be requested.
Tanks are lowered to the ground but not positioned, as this is a kerbside delivery. If a smaller vehicle is required, email sales@fueltankshop.co.uk quoting your order number and name.
HIAB delivery
HIAB delivery is available but must be requested, and carries an additional cost. Email sales@fueltankshop.co.uk quoting your order number and name, and we'll come back to you with a price.
Accessories
Most accessories are delivered within 1–3 working days. Certain products and postcodes may take longer — check the product page for current information. If you need them sooner we can sometimes offer a next-day service; please contact us to discuss. If an item is out of stock we'll advise the expected lead time, and you're free to cancel for a full refund.
Returns Information
Customers may return items within 14 calendar days, as set out in section 7 of our Terms & Conditions.
All items must be returned unused. Refunds cannot be issued for used or previously installed items.
Please be aware that returning a tank can be complicated and expensive, so do check you're ordering the correct item — we strongly suggest checking the dimensions carefully before you buy.
How to return an item
- Complete the form on our returns page with details of your order.
- Once your request is approved, we'll issue a Returns Authorisation Number (RAN) along with instructions on how and where to return your order, and any costs involved.
- Please do not return any goods without this authorisation. Goods cannot be accepted without a valid RAN.
- Returns are not accepted at our Minehead office. Please wait until we contact you before returning anything.
