PRODUCT REF · FHC-1000L
Dymac Fuel Hub Compact 1000 Litre Diesel Tank ADR Approved
Dymac Fuel Hub Compact 1000 Litre Diesel Tank ADR Approved
- Diesel
- Gas Oil
- HVO
- Steel
- Bunded
- 5 Year Warranty
Estimate delivery costs
Your postcode lets us show accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it isn't stored or shared.
Couldn't load pickup availability

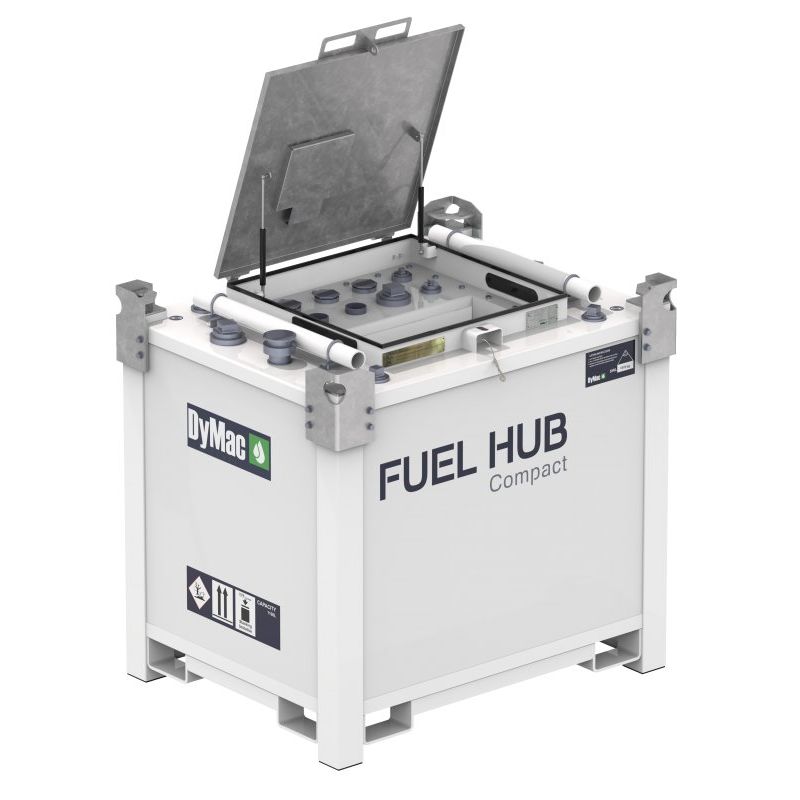

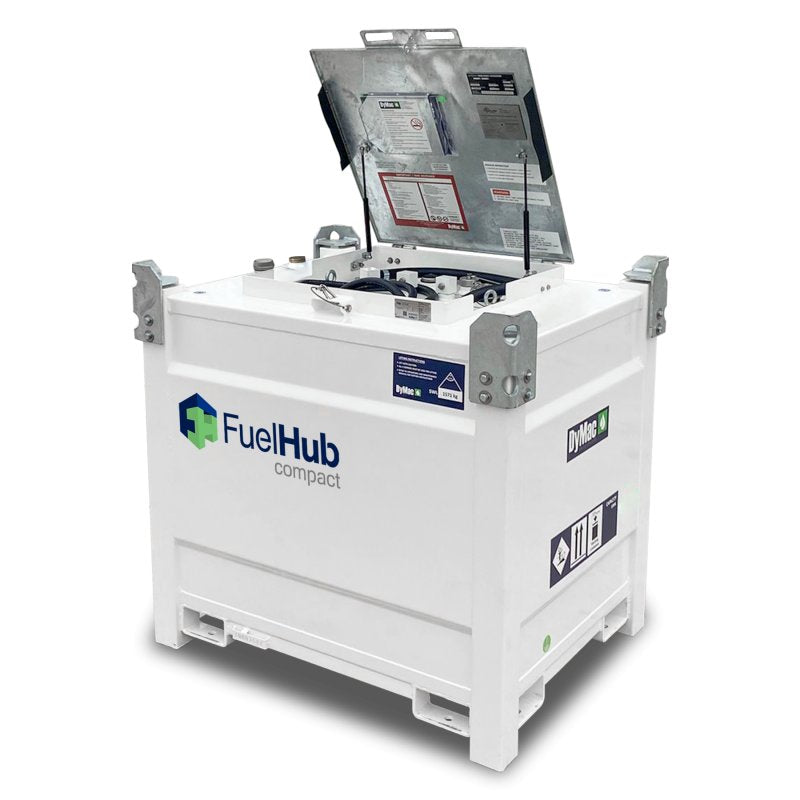

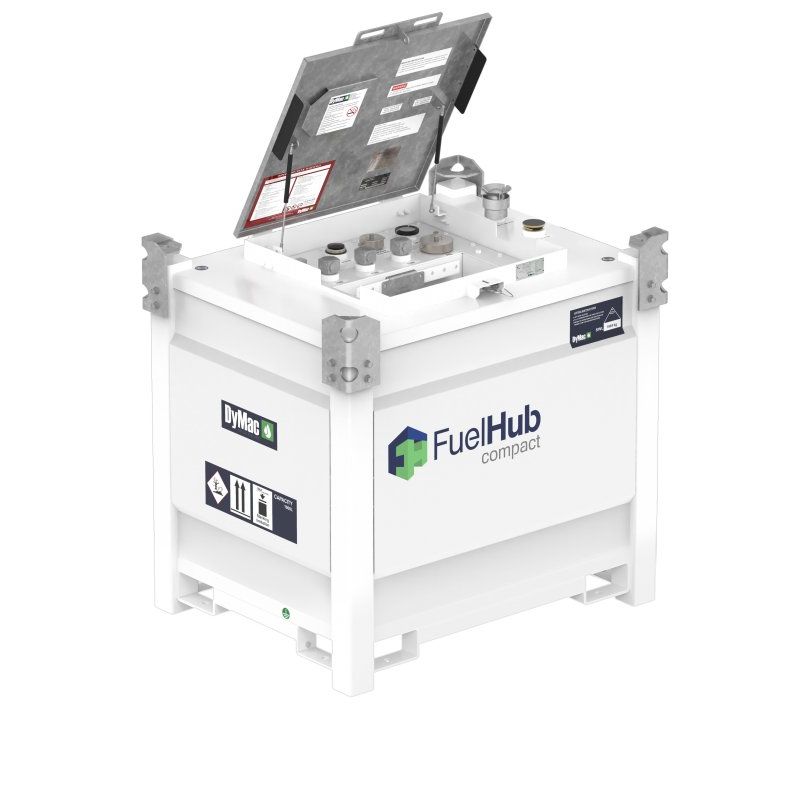

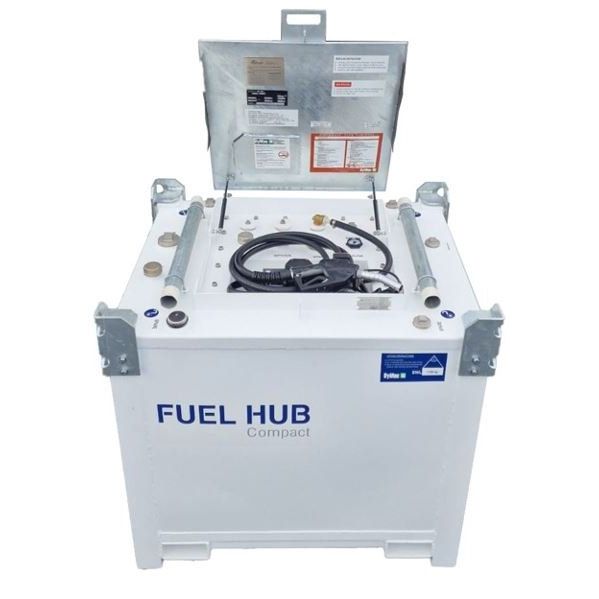

Dymac Fuel Hub Compact 1000 Litre Diesel Tank - Transportable - ADR / UN Approved
The Dymac Fuel Hub Compact 1000 litre steel bunded diesel tank is designed for the safe and secure storage of diesel and HVO fuel and comes with a galvanized hatch lid and four galvanized stacking corners

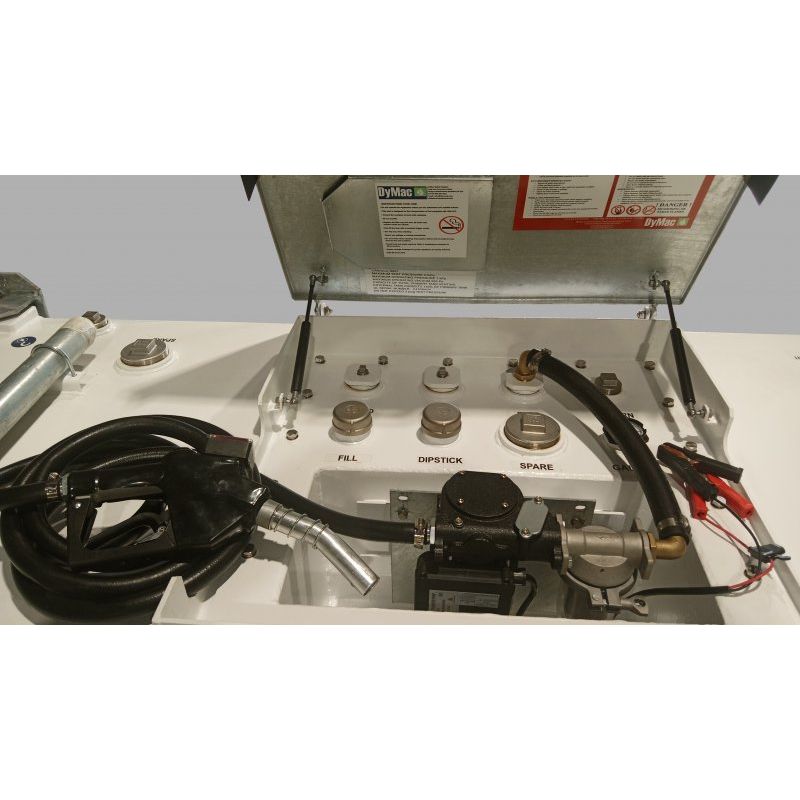

The innovative design allows the hatch lid to open up to conveniently positioned fitting ports
Complete with bidirectional fork-lift pockets
Fully transportable and UN & ADR compliant, made from 4mm steel on the inner and outer tanks
110% integrally bunded
High grade paint finish - powder coated, resulting in a longer lasting finish.
Designed for direct generator connections or with the optional 12v pump, you can dispense fuel
Please choose option for diesel pump if required:
- 12v 56lpm pump supplied with 1" suction hose c/w camlock device, mounting bracket, 2m cable c/w crocodile clips, water and particulate filter, 4m x 3/4" delivery hose and automatic nozzle with swivel
- K2 Semi Rotary Hand Pump c/w suction hose with foot valve, 4m 3/4" delivery hose, manual nozzle, pump bracket and fittings (PLEASE NOTE THAT THIS OPTION WOULD BE MOUNTED ON A BRACKET OUTSIDE THE CABINET)
- 230v 56lpm supplied with 1 x 1.5m 1” Suction Hose with Cam-Lock device, inline water and particle filter, 4m hose and auto nozzle
Standard Specification:
- 2" interstitial vent
- 2" spare socket
- 2" vent
- 3" socket
- 3 x 2" socket
- 2" filler port
- 2" dip
- 3" spare socket
- 3 x 1.5" return socket
- 2"-1" socket
- 1" suction pipe & foot valve
- 2"-1/2" socket
- 1/2" suction pipe & foot valve
- Dimensions (l x w x h) 1374mm x 1086mm x 1270mm
- Empty Weight 634kg
- Laden Weight, 1519kg
- Total Capacity 1100 litres (240 gallons)
- Safe Fill Capacity, 1045 litres
- Stackable 2 high when filled with fuel and 3 high when empty
- UN31 A/Y Compliant
Specifications
| Product Ref | DC |
|---|---|
| Volume (litres) | 1,000 |
| Length (mm) | 1,344 |
| Width (mm) | 1,059 |
| Height (mm) | 1,270 |
| Weight (kg) | 595 |
| Footprint (L+W) | 1344mm + 1059mm |
| Lead time (working days) | 12 |
