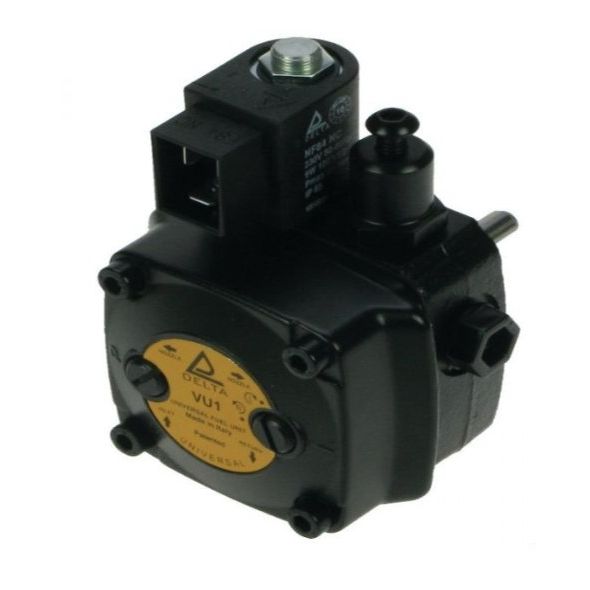

Delta Oil Pumps Type VU - 230V
The Delta VU 230 V universal fuel unit is a versatile, high-performance pump designed to replace multiple oil pump models in heating systems and oil transfer applications. With reversible rotation and selectable nozzle orientation, it’s engineered for rapid field swapping without needing multiple spare parts.
Key Features
- 230 V / 50–60 Hz Coil - Optimised for standard single-phase electrical systems.
- Integrated Pump Assembly - The housing contains the pump, filter, solenoid shut-off valve, and pressure regulator in one compact unit.
- Bidirectional Nozzle Ports - Offers both left and right nozzle outlets from the same unit, accommodating different pipe orientations.
- Reversible Rotation (Clockwise / Counter-Clockwise) - Rotation can be reversed via an internal selector screw (no disassembly required).
- Single-Pipe or Two-Pipe Compatible - Converts between single and two pipe setups by adding or removing a bypass plug.
- Precision Pressure Regulation - Factory setting around 10 ± 0.3 bar, adjustable using the regulator screw.
- Positive Cut-Off & Safety Shut-Off - The built-in solenoid valve ensures the fuel supply cuts off instantly when de-energised (to prevent nozzle drip)
Technical Details:
- Pressure Range: 6–18 Bar
- Max Vacuum (Suction): 0.5 Bar
- Maximum Speed: 3,500 rpm
- Filtration: Nylon Mesh (Filter 150µm), Accessible Cover
- Connections: Inlet/Return: G1/4″ ; Nozzle Ports: G1/8" ; Pressure / Vacuum Gauge Ports: G1/8″
- Weight: 1.05kg
- Standard Factory Setup: Two-pipe, nozzle on right side, counter-clockwise rotation
Why Choose the 230 V Delta VU?
- Enables straightforward replacement of multiple pump types with just one model
- Minimises spare parts inventory thanks to its universal design
- Offers field flexibility: reversible rotation, dual nozzle ports, and pipe system conversion
- Delivers safe and efficient performance, with built-in regulation and cut-off control
Specifications
| Product Ref | HY |
|---|---|
| Lead time (working days) | 5 |
