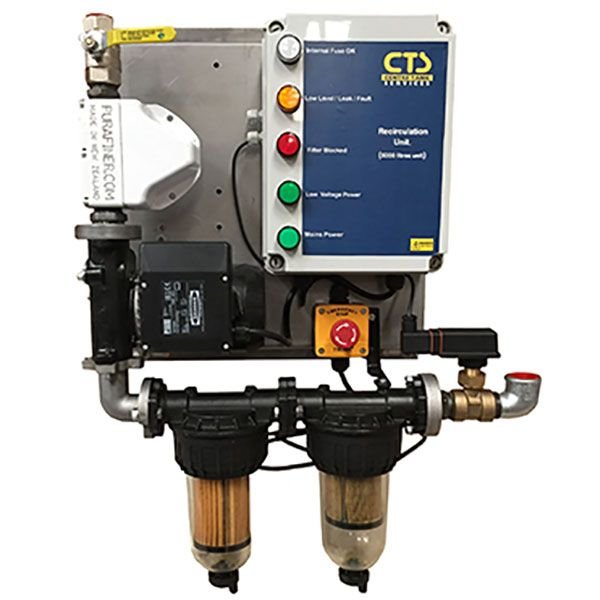

CTS Fuel Recirculation Unit
The CTS Fuel Recirculation Unit is designed to be installed to prevent diesel fuel inside a storage tank from getting stagnant - particularly those with low usage such as generator back up tanks, that whilst not regularly used are of vital importance. By keeping the fuel free of contaminants and bugs, costly damage and downtime to equipment and vehicles is avoided.
The fuel storage tank filtration system draws the fuel up from the front of the tank through the magnetic conditioner, keeping any bacteria microbes dormant, and then through a two stage water and particle filtration process to remove any impurities before circulating back into the tank.
The CTS storage tank recirc unit has an input for connecting to an alarm/gauge to detect a low fuel level and a leak probe for a drip tray (if installed). Benefiting from a control panel with large, coloured lights, any issues that need to be dealt with i.e. filter blocked, low fuel level, a leak or a system fault can be easily diagnosed. If the system identifies any of the above issues, the pump will turn off until necessary action has been taken as a safeguard. Complete with two BMS outputs, the control panel can also send a signal of this to warn users remotely.
There are two versions of CTS Fuel Tank Recirculation System; one for circulating (50lpm) a maximum of 3000 litres per day for tanks up to 40,000 litres, and another for circulating (70lpm) a maximum of 4000 litres per day for tanks up to 70,000 litres. Tank contents should be recirculated every 28 days to prevent bacteria colonies from forming. Our systems are set to turn over 1.5 times the tank contents every 28 days to include a safety margin.
Features of the CTS Fuel Tank Conditioner:
- Italian manufactured Piusi Panther Pump
- Purafiner magnetic fuel conditioner
- 30 micron water & 5 micron particle filter
- Timer to control the periods that the fuel is circulated
- Flow switch to detect filter block and turn off pump
- IP55 control panel to alert of filter block, low level/leak/fault
- Input for connecting to low level alarm/gauge or leak probe
- 2 x BMS outputs for remote warning of above statuses
- Mushroom style emergency stop button
- Versions for circulating up to 40,000l & 70,000l tanks
- Suitable for diesel
- 230v
Specifications
| Product Ref | CT |
|---|---|
| Lead time (working days) | 3 |
Delivery Terms
Approx 2-3 Days
The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page. Standard tank deliveries are "kerbside", which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.
Tanks over 2,500L — articulated lorry, customer offload
These tanks are delivered on an articulated vehicle (approximately 16.5m long × 2.6m wide × 3m high) which has no offloading on board. It is the customer's responsibility to offload the tank, which may require a telehandler or forklift.
Curtain-sided vehicles are also used, so please note that if there are obstacles or overhanging branches on the road to the delivery site, the driver may refuse to drive to the location due to the risk of damaging the vehicle. Please let us know about any obstructions before delivery so we can arrange alternative transport.
18-tonne tail-lift HGV
This vehicle is roughly the size of the largest bin lorries — approximately 8.2m long × 2.6m wide × 4m high, and often curtain-sided. If there are overhanging branches, these vehicles will not attempt the route, so a smaller vehicle should be requested.
Tanks are lowered to the ground but not positioned, as this is a kerbside delivery. If a smaller vehicle is required, email sales@fueltankshop.co.uk quoting your order number and name.
HIAB delivery
HIAB delivery is available but must be requested, and carries an additional cost. Email sales@fueltankshop.co.uk quoting your order number and name, and we'll come back to you with a price.
Accessories
Most accessories are delivered within 1–3 working days. Certain products and postcodes may take longer — check the product page for current information. If you need them sooner we can sometimes offer a next-day service; please contact us to discuss. If an item is out of stock we'll advise the expected lead time, and you're free to cancel for a full refund.
Returns Information
Customers may return items within 14 calendar days, as set out in section 7 of our Terms & Conditions.
All items must be returned unused. Refunds cannot be issued for used or previously installed items.
Please be aware that returning a tank can be complicated and expensive, so do check you're ordering the correct item — we strongly suggest checking the dimensions carefully before you buy.
How to return an item
- Complete the form on our returns page with details of your order.
- Once your request is approved, we'll issue a Returns Authorisation Number (RAN) along with instructions on how and where to return your order, and any costs involved.
- Please do not return any goods without this authorisation. Goods cannot be accepted without a valid RAN.
- Returns are not accepted at our Minehead office. Please wait until we contact you before returning anything.
