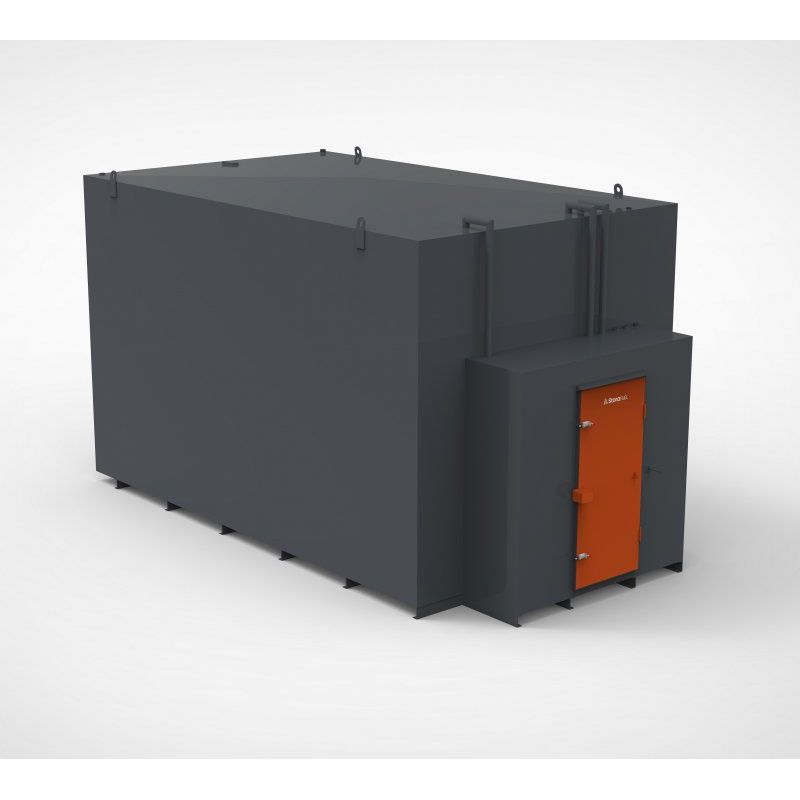

StoraFuel 40000 Litre (8800 Gallons) Steel Bunded Diesel Dispensing Tank FTS.DS40000
Tank & Bund:
A 40000 litre steel bunded diesel tank dispenser which is suitable for commercial applications. This tank is well suited for the construction and agricultural industry.
The liquid is stored in the primary or inner tank and the outer tank forms the required bund with capacity for 110% of the primary tank’s capacity which makes this tank suitable for both domestic and commercial installations
This tank is suitable for the storage of Derv (white diesel) or Gas Oil (red diesel).
A bunded tank is a tank within a tank, the outer tank provides protection for the inner tank which therefore makes it harder for the inner tank to fail. However, in the unlikely event of the inner tank failing, the outer tank will provide secondary containment.
Specifications:
- Security cabinet – front mounted
- Lockable cabinet swing door (optional roller shutter door available)
- 6m Delivery Hose and Auto Nozzle
- 2″ fill point inside cabinet, c/w lever ball valve, non return valve & drip tray
- 2″ tank to bund vent
- 2″ bund to atmosphere vent
- 1.5″ pump feed (inside cabinet)
- 2 no 1.5″ tank sockets (inside cabinet)
- 1 no 1.5″ bund socket
- Hydrostatic gauge
- Overfill alarm (battery powered)
- Powder fire extinguisher (pre-serviced)
- 15 litre spill kit
- Mounted on full width bearers
- 4 x lifting eyes (for lifting when empty)
- Internal tank bracing
- This tank is made in accordance with BS799pt5
- Material: Steel to BS EN 10025-2:2004 S275JR
- Outer tank forms the required bund, with capacity for 110% of the total liquid being stored.
- 10 year tank warranty
Finish:
Surface preparation ST2. A Zinfos 340WS solvent borne high performance anti-corrosive one coat system is applied and a multi surface self-priming mid sheen topcoat (50% gloss). Applied to give a wet film thickness of 150 microns and dry film thickness of 75 microns.
- Main Tank – RAL 7015 Grey
- Door – RAL 2001 Orange
- Other colours can be requested
Pump Options:
- 70 LPM 230v Piusi Pump Kit (c/w 6m Hose, Water & Particle Filter (10 micron), Auto Nozzle & Mechanical Flow Meter)
- 50 LPM 110v Piusi Pump Kit (c/w 6m Hose, Water & Particle Filter (10 micron), Auto Nozzle & Mechanical Flow Meter)
- 45 LPM 12v Piusi Pump Kit (c/w 6m Hose, Water & Particle Filter (10 micron), Auto Nozzle & Mechanical Flow Meter)
- Semi Rotary Hand Pump Kit (c/w 4m Hose, Water & Particle Filter (10 micron), Manual Nozzle)
Dimensions:
- Length: 5700mm
- Width: 3000mm
- Height: 3100mm (including bearers)
- Weight: TBC
This tank can be paired with most fuel management systems available on the market, please contact one of our team to discuss your requirement in more detail
Warranty:
- Tank – 10 years
- Pumps & Components – 1 year
Please note: This tank is designed as a static tank and is not certified to be transported when full of fuel. It also should be situated on a non-combustible even and level terrain/surface
Specifications
| Product Ref | FTS |
|---|---|
| Volume (litres) | 40,000 |
| Length (mm) | 5,700 |
| Width (mm) | 3,000 |
| Height (mm) | 3,100 |
| Footprint (L+W) | 5700mm + 3000mm |
| Lead time (working days) | 14 |
Delivery Terms
Please contact us for lead time
The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page. Standard tank deliveries are "kerbside", which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.
Tanks over 2,500L — articulated lorry, customer offload
These tanks are delivered on an articulated vehicle (approximately 16.5m long × 2.6m wide × 3m high) which has no offloading on board. It is the customer's responsibility to offload the tank, which may require a telehandler or forklift.
Curtain-sided vehicles are also used, so please note that if there are obstacles or overhanging branches on the road to the delivery site, the driver may refuse to drive to the location due to the risk of damaging the vehicle. Please let us know about any obstructions before delivery so we can arrange alternative transport.
18-tonne tail-lift HGV
This vehicle is roughly the size of the largest bin lorries — approximately 8.2m long × 2.6m wide × 4m high, and often curtain-sided. If there are overhanging branches, these vehicles will not attempt the route, so a smaller vehicle should be requested.
Tanks are lowered to the ground but not positioned, as this is a kerbside delivery. If a smaller vehicle is required, email sales@fueltankshop.co.uk quoting your order number and name.
HIAB delivery
HIAB delivery is available but must be requested, and carries an additional cost. Email sales@fueltankshop.co.uk quoting your order number and name, and we'll come back to you with a price.
Accessories
Most accessories are delivered within 1–3 working days. Certain products and postcodes may take longer — check the product page for current information. If you need them sooner we can sometimes offer a next-day service; please contact us to discuss. If an item is out of stock we'll advise the expected lead time, and you're free to cancel for a full refund.
Returns Information
Customers may return items within 14 calendar days, as set out in section 7 of our Terms & Conditions.
All items must be returned unused. Refunds cannot be issued for used or previously installed items.
Please be aware that returning a tank can be complicated and expensive, so do check you're ordering the correct item — we strongly suggest checking the dimensions carefully before you buy.
How to return an item
- Complete the form on our returns page with details of your order.
- Once your request is approved, we'll issue a Returns Authorisation Number (RAN) along with instructions on how and where to return your order, and any costs involved.
- Please do not return any goods without this authorisation. Goods cannot be accepted without a valid RAN.
- Returns are not accepted at our Minehead office. Please wait until we contact you before returning anything.
