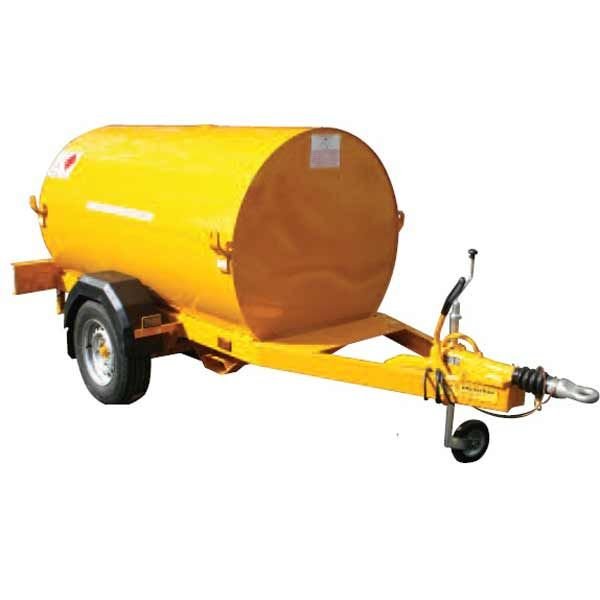

950 Litre Bunded Diesel Bowser - Highway Bowser
950 litre (208 gallons) road towable bunded diesel bowser. Certified UN 1202 (For Road Haulage).
Like to view the bowser ? Please click on the video tab below for a walk around showing the design & features of this bowser
Chassis: Constructed from 100 x 50 RSC fully welded with front standing plate and A frame drawbar
Axle/Suspension: Single Avonride 1500kg torsion beam axle and fitted with 200 x 50 auto reverse brakes
Wheels & Tyres: 2 no 185 x 13 x 8 ply radial tyres on 4 stud 5 1/2" pcd hubs
Coupling: Knott 2000kg posibrake over run auto reverse c/w spring assisted handbrake lever, breakaway cable and 40mm ring eye or 50mm ball
Ancillary Equipment: Moulded mudguards, mud flaps, rear support stand, telescopic front jockey wheel, side reflectors, front reflectors, full road lighting c/w 13 pin plug & 7 pin adaptor
Outer bund tank:
-
Cylindrical in section with removable top section for tank access
-
Rear access door fitted with stainless steel hinge and fully lockable
-
Bund contains 110% of inner tank content
-
4 lifting eyes
-
Fork lift pockets (for use when tank off of chassis only)
Inner Fuel Tank:
-
Constructed from translucent heavy duty polyethylene
-
2" Filler cap & chain
-
1" Manual vent valve
-
Pressure relief valve
-
Top mounted 1/2" BSP feed & return points
-
Ball valve in base of tank to pump
-
Bottom outlet valve
-
Pressure relief valve in tank top

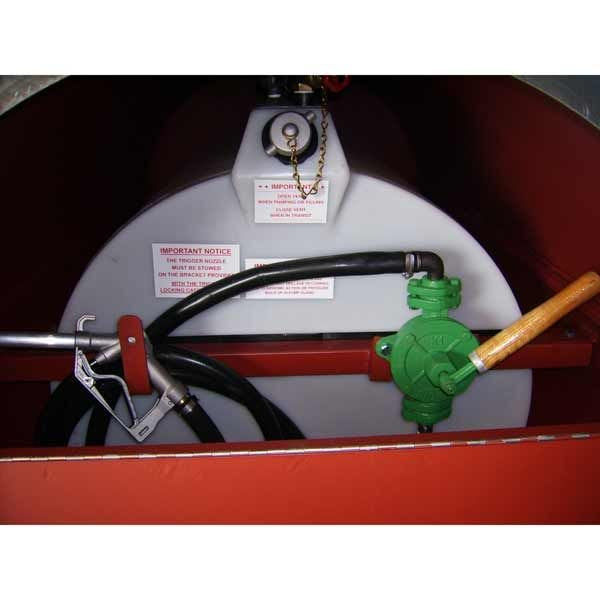

Pump:
-
K1 Semi rotary hand pump fitted with 15' of 1" fuel hose c/w trigger nozzle and stowed on bracket
-
Fitted with in-line 'Y' strainer
-
All contained within lockable bund area
-
12V Pump upgrade available at extra cost
Finish:
-
Primer & 2 top coats - single British Standard (BS) colour
Specifications
| Product Ref | TE |
|---|---|
| Volume (litres) | 950 |
| Length (mm) | 3,555 |
| Width (mm) | 1,550 |
| Height (mm) | 1,524 |
| Weight (kg) | 476 |
| Lead time (working days) | 7 |
