PRODUCT REF · 9400BVA
9200 Litre Bunded Oil Tank - Atlas 9400BVA
9200 Litre Bunded Oil Tank - Atlas 9400BVA
- Diesel
- Gas Oil
- Heating Oil
- Plastic
- Bunded
- Vertical
Estimate delivery costs
Your postcode lets us show accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it isn't stored or shared.
Couldn't load pickup availability
Enquire about
Loading form…

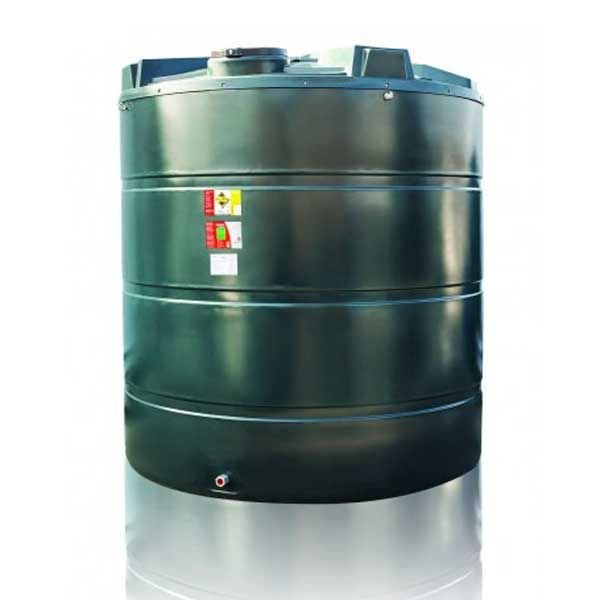

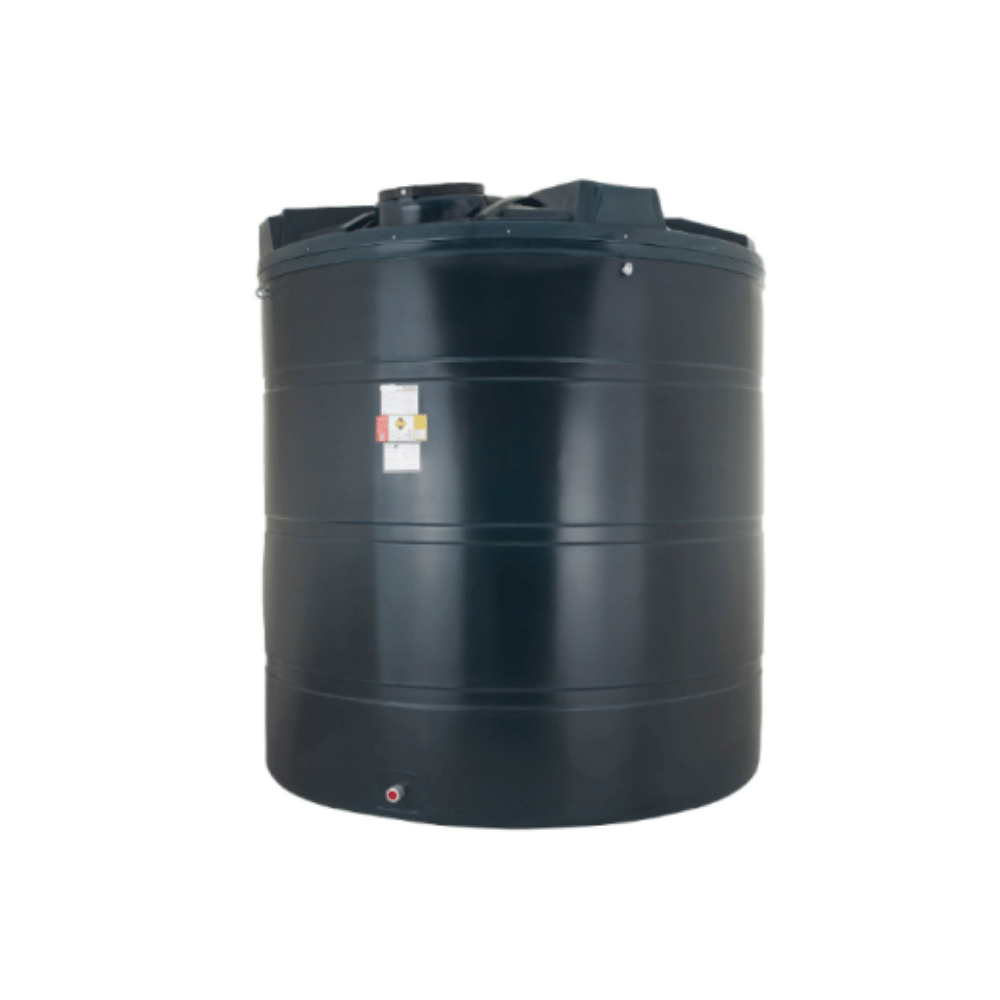

Atlas 9400BVA: 9200 Litre Bunded Heating Oil Tank
Price Overview
The Atlas 9400BVA is a 9,200 litre vertical bunded oil tank designed for large-volume storage of heating oil, kerosene, diesel and gas oil. Manufactured from high-grade polyethylene, this British-made Atlas tank combines robust double-skinned construction with a vertical design for secure fuel storage in domestic, agricultural, commercial and industrial applications.
The tank is supplied with an overfill prevention valve, inspection access, vent, 1" BSP outlet connection and lockable manhole cover. A basic top outlet connection is also available as an alternative to the standard bottom outlet configuration.
Key Features
- 9,200 litre nominal capacity
- Approximately 2,068 gallons
- Vertical tank design
- Bunded, double-skinned construction
- High-grade polyethylene construction
- British-made Atlas tank
- Corrosion resistant
- High impact strength
- UV stabilised
- Suitable for diesel, gas oil and heating oil
- Overfill prevention valve
- 4" inspection screw lid
- 2" vent
- 1" BSP bottom outlet
- Lockable manhole cover
- Bottom or basic top outlet configuration
- 2,450 mm diameter
- 2,800 mm overall height
- 450 kg tank weight
- 10-year warranty on selected tanks
Bunded Tank Construction
The Atlas 9400BVA uses a tank-within-a-tank construction. The inner tank acts as the primary fuel storage vessel, while the outer tank provides secondary containment in the event of a leak or spill.
This double-skinned construction provides an additional layer of containment around the stored fuel. The outer bund is designed to retain surplus fuel should the primary tank experience a leak, helping to reduce the risk of an environmental pollution incident.
Applications
The Atlas 9400BVA is suitable for a wide range of large-volume fuel storage applications.
Typical applications include:
- Commercial heating oil storage
- Agricultural properties and farms
- Industrial premises
- Commercial buildings
- Large heating systems
- Rural properties
- Diesel and gas oil storage
- Sites requiring high-volume fuel storage
- Fuel storage for larger-scale operations
With 9,200 litres of storage capacity, the tank is particularly suited to installations where a substantial volume of fuel needs to be held on site.
Delivery
Please note it is the customer responsibility to arrange suitable offloading equipment unless a hiab has been requested at a additional cost.
We recommend not to book any installation or machinery until the tank has been delivered. We will not be responsible for any additional cost occurred with delayed deliveries.
Failed deliveries may result in additional charges.
Collection may be available ex works (Please contact us in regards to this option).
Specifications
| Product Ref | AT |
|---|---|
| Volume (litres) | 9,200 |
| Diameter (mm) | 2,450 |
| Height (mm) | 2,800 |
| Weight (kg) | 450 |
| Footprint (L+W) | Diameter: 2450mm |
| Lead time (working days) | 7 |
Delivery Terms
The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page. Standard tank deliveries are "kerbside", which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.
Tanks over 2,500L — articulated lorry, customer offload
These tanks are delivered on an articulated vehicle (approximately 16.5m long × 2.6m wide × 3m high) which has no offloading on board. It is the customer's responsibility to offload the tank, which may require a telehandler or forklift.
Curtain-sided vehicles are also used, so please note that if there are obstacles or overhanging branches on the road to the delivery site, the driver may refuse to drive to the location due to the risk of damaging the vehicle. Please let us know about any obstructions before delivery so we can arrange alternative transport.
18-tonne tail-lift HGV
This vehicle is roughly the size of the largest bin lorries — approximately 8.2m long × 2.6m wide × 4m high, and often curtain-sided. If there are overhanging branches, these vehicles will not attempt the route, so a smaller vehicle should be requested.
Tanks are lowered to the ground but not positioned, as this is a kerbside delivery. If a smaller vehicle is required, email sales@fueltankshop.co.uk quoting your order number and name.
HIAB delivery
HIAB delivery is available but must be requested, and carries an additional cost. Email sales@fueltankshop.co.uk quoting your order number and name, and we'll come back to you with a price.
Accessories
Most accessories are delivered within 1–3 working days. Certain products and postcodes may take longer — check the product page for current information. If you need them sooner we can sometimes offer a next-day service; please contact us to discuss. If an item is out of stock we'll advise the expected lead time, and you're free to cancel for a full refund.
Returns Information
Customers may return items within 14 calendar days, as set out in section 7 of our Terms & Conditions.
All items must be returned unused. Refunds cannot be issued for used or previously installed items.
Please be aware that returning a tank can be complicated and expensive, so do check you're ordering the correct item — we strongly suggest checking the dimensions carefully before you buy.
How to return an item
- Complete the form on our returns page with details of your order.
- Once your request is approved, we'll issue a Returns Authorisation Number (RAN) along with instructions on how and where to return your order, and any costs involved.
- Please do not return any goods without this authorisation. Goods cannot be accepted without a valid RAN.
- Returns are not accepted at our Minehead office. Please wait until we contact you before returning anything.
Downloadable Documents
What is a bunded tank?
Installation requirements
