PRODUCT REF · CH-L1F2PGK
90 Minute 1 Door Lithium-ION Battery Cabinet With Charging & Firepro Suppression - CH-L1F2PGK
90 Minute 1 Door Lithium-ION Battery Cabinet With Charging & Firepro Suppression - CH-L1F2PGK
- Customer Off Loading
Estimate delivery costs
Your postcode lets us show accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it isn't stored or shared.
Couldn't load pickup availability
90 Minute Tested 1 Door Lithium-ION Battery Cabinet With Charging & Firepro Suppression - CH-L1F2PGK

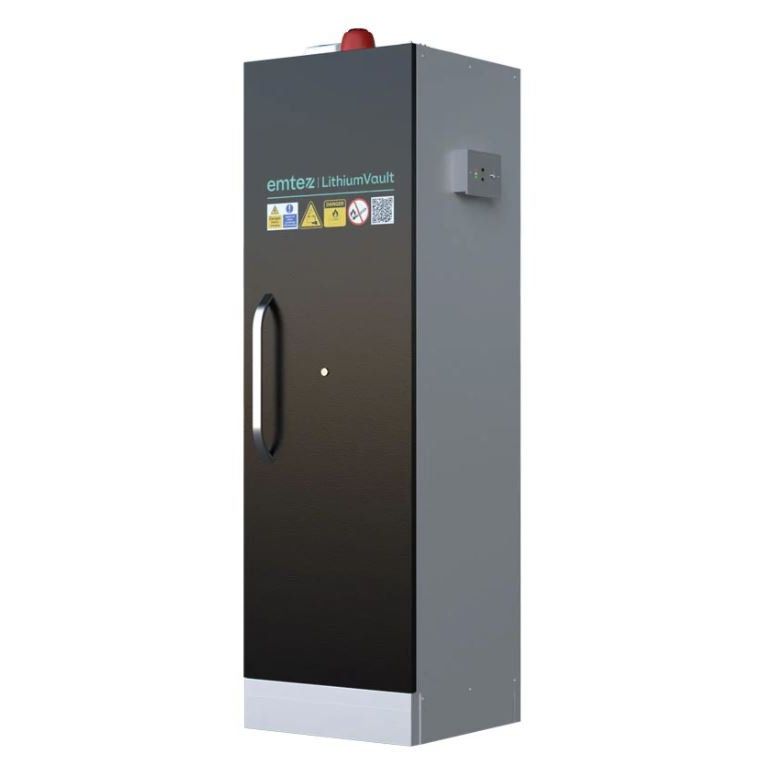

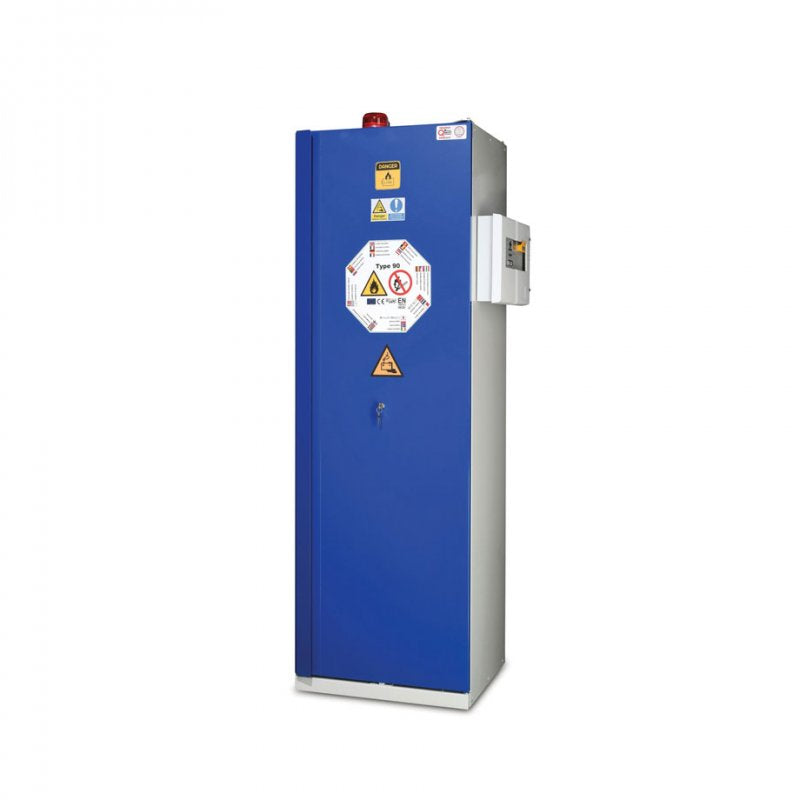

1-door fire cabinet designed to store, and charge, lithium-ion batteries safely across 4 perforated shelves.
Once temperatures reach over 47 °C, the doors have an automatic hydraulic closing system to contain fires along with closing valves (70 °C). for air inlet and outlet pipes. Included in the build are anti-spark hinges which guarantee excellent door stability and all-round safety.
Due to battery capacity this unit needs a 3 phase electric supply
Features:-
- Internal Dimensions: 496 x 446 x 1540mm
- Shelf Dimensions: 495 x 420 x 39mm
- 4 Perforated shelves
- 1 Lock & 2 Keys supplied
- 24 Charging Points (6 x power sockets per shelf)
- 90-Minutes Fire Rated.
- Steel Construction with Anti-spark hinges.
- Ventilation.
- Self-closing door system.
- Charging sockets with illuminated on/off safety switch.
- 5G6mm2 cable section and 4-pole plug.
- FirePro® fire detection and automatic extinguishing system with FPC-2V2 control panel.
- Sounder beacon.
- Smoke and heat sensors.
- LPCB certified to EN 12094-1 and EN 54-2 and 4 and EN 14470-1 TYPE 90.
- Spill tray.
- Voltage: 400V.
- Max amp: 32A.
- Max power: 11.96kW.
90-minute fire resistance EN 14470-1 TYPE 90 meaning in the event of an internal or external fire, there is 90 minutes of protection against it allowing for an appropriate permanent solution
Specifications
| Length (mm) | 600 |
|---|---|
| Width (mm) | 595 |
| Height (mm) | 2,050 |
| Weight (kg) | 210 |
| Lead time (working days) | 30 |
