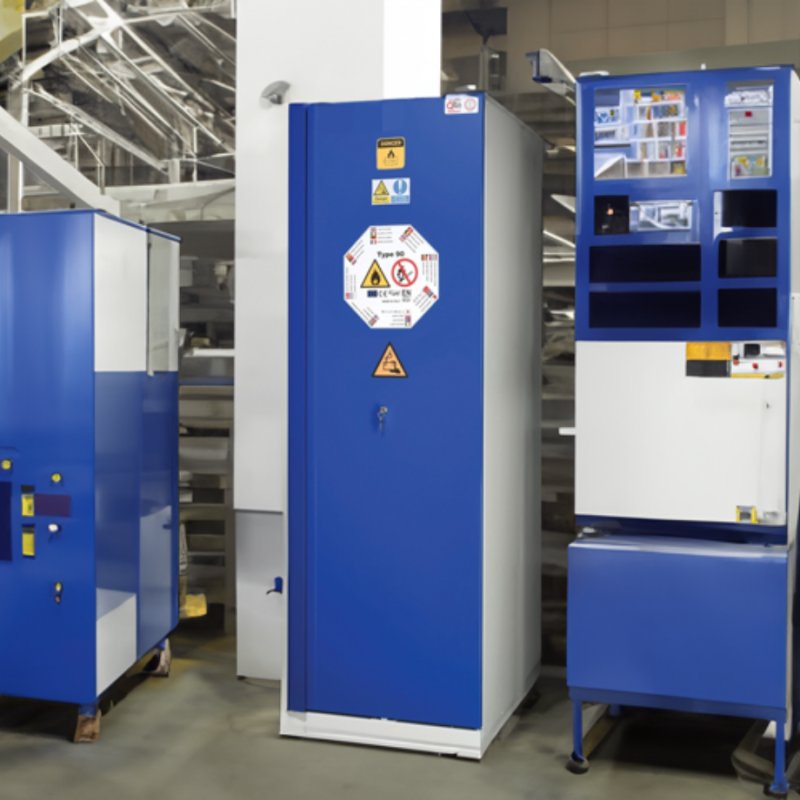

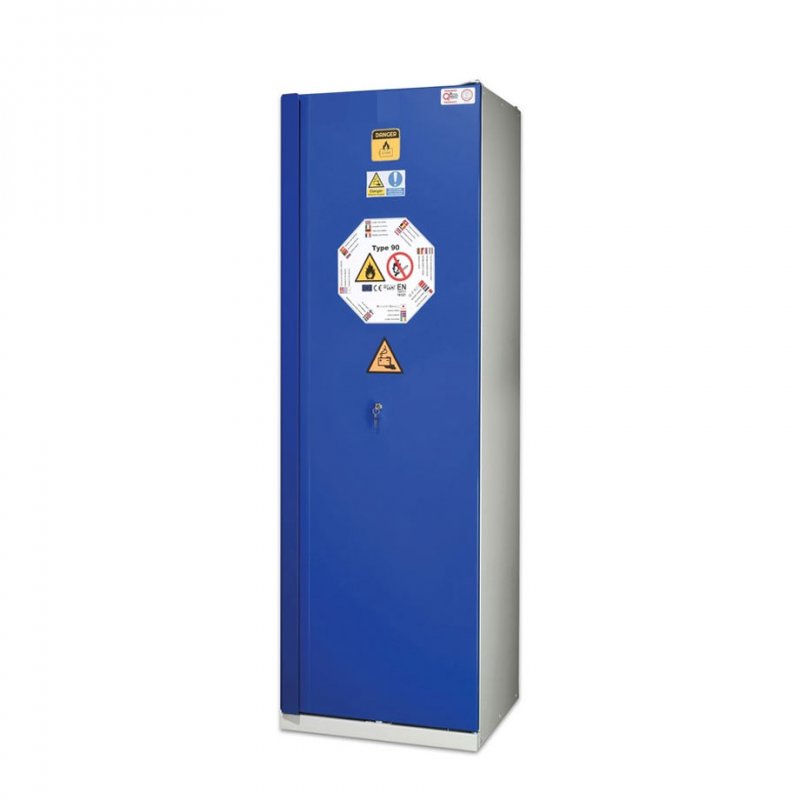

90 Minute Tested 1 Door Lithium-ION Battery Cabinet - CH-L1K
1-door fire cabinet designed to store lithium-ion batteries safely across 4 perforated shelves. As standard, each unit comes equipped with a key-operated lock & door block system.
Made entirely of 1-1.5mm of thick cold-pressed sheet steel which is painted with anti-acid epoxy powder.
Once temperatures reach over 47 °C, the doors have an automatic hydraulic closing system to contain fires along with closing valves (70 °C). for air inlet and outlet pipes. Included in the build are anti-spark hinges which guarantee excellent door stability and all-round safety.
Due to battery capacity this unit needs a 3 phase electric supply
Features:-
- External Dimensions - 595mm L x 600mm W x 1950mm H
- 4 Perforated shelves
- 2 Keys supplied
- Shelf Dimensions - 494mm L x 420mm W x 39mm H
- Reduces the risk of fire and explosion
- Reduces risk of fire spreading into or from the cabinet
- Fire resistance of minimum 90 minutes
- Contains temperatures of up to 800 °C for over 90 minutes
90-minute fire resistance EN 14470-1 TYPE 90 meaning in the event of an internal or external fire, there is 90 minutes of protection against it allowing for an appropriate permanent solution
Specifications
| Length (mm) | 595 |
|---|---|
| Width (mm) | 600 |
| Height (mm) | 1,950 |
| Weight (kg) | 210 |
| Lead time (working days) | 30 |
