PRODUCT REF · 7500FS-240V-56lpm

7500 Litre Diesel Tank - Harlequin 7500FS

7500 Litre Diesel Tank - Harlequin 7500FS

  • Diesel
  • Gas Oil
  • HVO
  • Plastic
  • Bunded
  • Vertical
Volume8088 L
Weight505 kg
L · W · H (mm)2940 × 2305 × 2820
from £6,168.00£7,401.60
ex. VAT inc. VAT £7,401.60 inc. VAT £6,168.00 ex. VAT
Regular price £6,168.00 GBP
Regular price £0.00 GBP Sale price £6,168.00 GBP
Sale Sold out
Dispatches in approx. 3 weeksPrice match guarantee
Choose Flow Rate
Choose Hose

Estimate delivery costs

Free delivery Over £500 · UK mainland orders
Manufacturer warranty Up to 10 years on selected tanks
OFTEC certified With installation service
0% finance available Trade accounts welcome
View full details

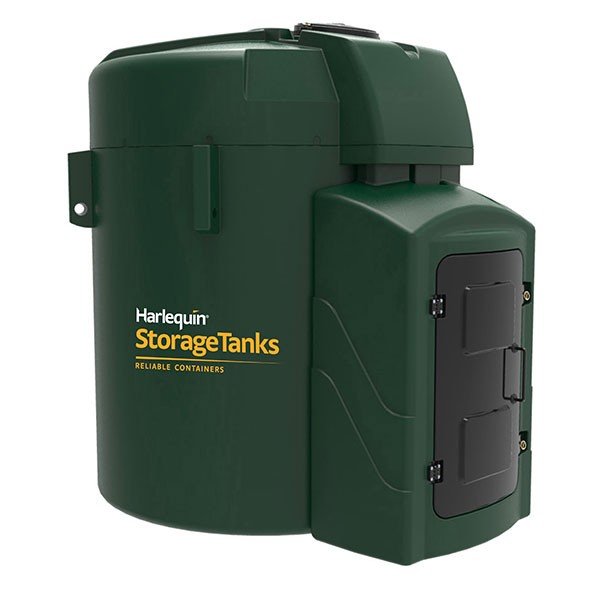

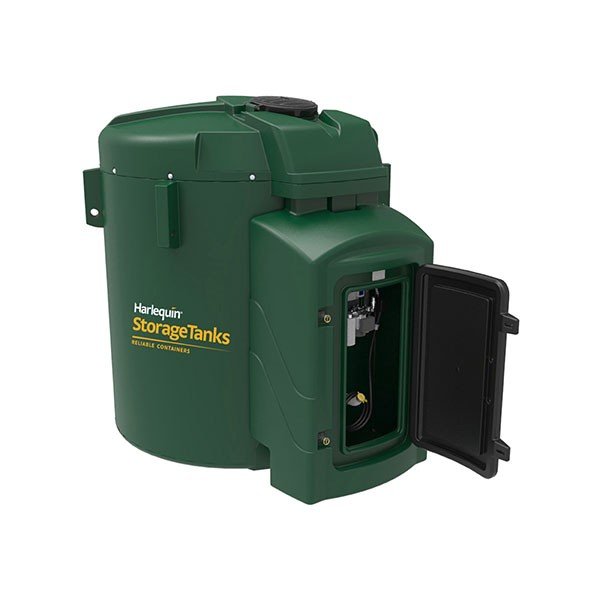

7500FS Bunded Plastic Diesel Storage and Dispensing Tank

7500 litre (1650 Gallons) bunded diesel tank. Available with 240V pump. Supplied with 6 m hose.

This Harlequin Diesel Tank is designed specifically to satisfy the fuel storage requirements of agricultural, commercial and industrial Diesel users, New Generation Harlequin Fuel Stations are the most advanced self-contained Diesel Dispensing Solutions available from any UK or European manufacturer.

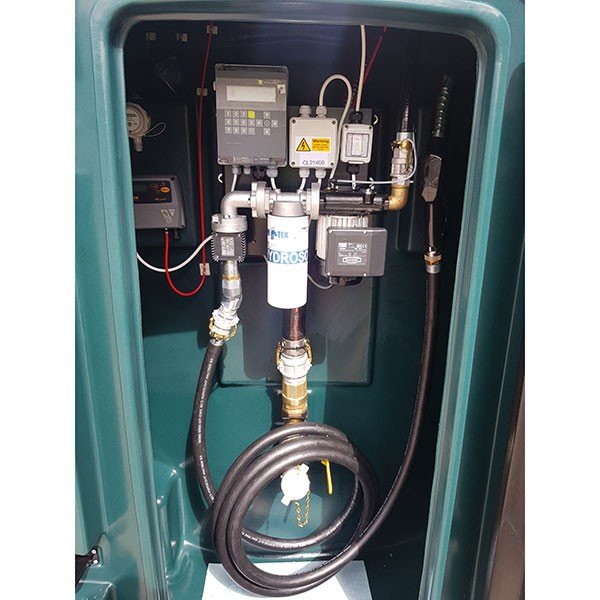

Supplied complete with:

  • 56L/min 240V fuel pump
  • Electronic Level Gauge
  • 6 m length; 1" delivery hose
  • Mechanical Flow Meter
  • Auto shut-off nozzle
  • Bulkhead light
  • 2" offset fill point c/w non-return valve and lever ball valve
  • Cement base length 3540 mm x cement base width 2905 mm
  • 4" lockable inspection port
  • LRC overfill prevention probe
  • 10 Micron particulate and water filters
  • HVO Kit

Optional Extras:

  • 8m cabinet mounted Auto Retracting 3/4" Hose c/w Automatic Nozzle (230v pump models)
  • Tecalemit HDA Fuel Management System
Specifications
Product RefHQ
Volume (litres)8,088
Length (mm)2,940
Width (mm)2,305
Height (mm)2,820
Weight (kg)505
Footprint (L+W)2940mm + 2305mm
Lead time (working days)14
