PRODUCT REF · 500LITREROAD
500 Litre Water & Drinking Water Highway Bowser
500 Litre Water & Drinking Water Highway Bowser
- Non Potable Water
Estimate delivery costs
Your postcode lets us show accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it isn't stored or shared.
Couldn't load pickup availability

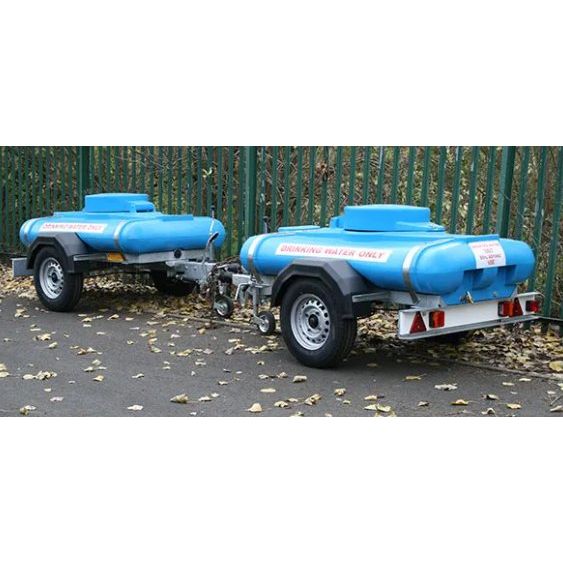

500 Litre Water & Drinking Water or Waste Water Highway Bowser
This fully approved highway towable bowser can be used for drinking water or waste water. This highway bowser can be configured for many applications including flower watering, pressure washing, dust suppression, feeding welfare units and feeding animals water via a trough.
For a drinking water highway bowser (potable water), the tank needs to be constructed from a specialist blue polyethylene which is fully secretary of state approved
- Towing Height - (Level) 420mm
- Unladen Weight - 225 Kg
- Laden Max - 750 Kg
Drinking Water is a Blue Tank and Waste Water is a Green Tank
CHASSIS:
- The drinking water highway bowser constructed from 80 x 80 R.S.A fully welded with a ‘T’ frame drawbar, all fully hot dipped galvanised to B.S standards.
AXLE/SUSPENSION:
- Avonride rubber torsion beam axle fitted with 200 x 50 auto reverse brakes.
WHEELS/TYRES:
- 2 No. 175 x 13 8 ply commercial van tyres on 4 stud 5.1/2” PCD rims.
COUPLING:
- Knott-Avonride auto reverse coupling fitted with 50mm ball or 40mm eye, break away cable & parking brake lever.
TANK:
- Polyethylene moulded tank, elliptical in section, baffled & fitted with an 18” lockable outer hinged manlid cover, inner sealed vented manlid. Tank secured to chassis with 2 stainless steel straps. 1 rear tap fitted, 2 rear outlets.
ANCILLARY EQUIPMENT:
- The ancillary equipment that comes with this drinking water highway bowser is moulded mudguards, front telescopic jockey wheel, rear lighting board. Rear propstand optional.
FINISH:
- The Poly tank in yellow, green, red or blue. The drinking water highway bowser only comes in a blue. Galvanised chassis.
Specifications
| Product Ref | TE |
|---|---|
| Volume (litres) | 500 |
| Length (mm) | 2,750 |
| Width (mm) | 1,550 |
| Height (mm) | 1,016 |
| Weight (kg) | 225 |
| Lead time (working days) | 20 |
Delivery Terms
The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page. Standard tank deliveries are "kerbside", which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.
Tanks over 2,500L — articulated lorry, customer offload
These tanks are delivered on an articulated vehicle (approximately 16.5m long × 2.6m wide × 3m high) which has no offloading on board. It is the customer's responsibility to offload the tank, which may require a telehandler or forklift.
Curtain-sided vehicles are also used, so please note that if there are obstacles or overhanging branches on the road to the delivery site, the driver may refuse to drive to the location due to the risk of damaging the vehicle. Please let us know about any obstructions before delivery so we can arrange alternative transport.
18-tonne tail-lift HGV
This vehicle is roughly the size of the largest bin lorries — approximately 8.2m long × 2.6m wide × 4m high, and often curtain-sided. If there are overhanging branches, these vehicles will not attempt the route, so a smaller vehicle should be requested.
Tanks are lowered to the ground but not positioned, as this is a kerbside delivery. If a smaller vehicle is required, email sales@fueltankshop.co.uk quoting your order number and name.
HIAB delivery
HIAB delivery is available but must be requested, and carries an additional cost. Email sales@fueltankshop.co.uk quoting your order number and name, and we'll come back to you with a price.
Accessories
Most accessories are delivered within 1–3 working days. Certain products and postcodes may take longer — check the product page for current information. If you need them sooner we can sometimes offer a next-day service; please contact us to discuss. If an item is out of stock we'll advise the expected lead time, and you're free to cancel for a full refund.
Returns Information
Customers may return items within 14 calendar days, as set out in section 7 of our Terms & Conditions.
All items must be returned unused. Refunds cannot be issued for used or previously installed items.
Please be aware that returning a tank can be complicated and expensive, so do check you're ordering the correct item — we strongly suggest checking the dimensions carefully before you buy.
How to return an item
- Complete the form on our returns page with details of your order.
- Once your request is approved, we'll issue a Returns Authorisation Number (RAN) along with instructions on how and where to return your order, and any costs involved.
- Please do not return any goods without this authorisation. Goods cannot be accepted without a valid RAN.
- Returns are not accepted at our Minehead office. Please wait until we contact you before returning anything.
