PRODUCT REF · 2140SITE-Hand
2140 Litre UN Approved Site Tow Diesel Bowser
2140 Litre UN Approved Site Tow Diesel Bowser
- Diesel
- Gas Oil
- HVO
- Steel
- Bunded
- Customer Off Loading
Estimate delivery costs
Your postcode lets us show accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it isn't stored or shared.
Couldn't load pickup availability

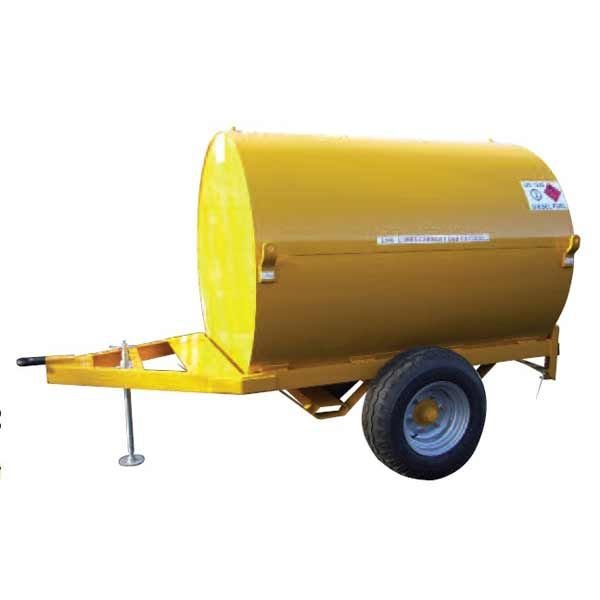

2140 Litre UN Approved Bunded Diesel Bowser - Site Bowser
2140 litre (470 gallons) bunded transportable diesel bowser designed for off-road use.
Like to view the bowser ? Please click on the video tab below for a walk around showing the design & features of this bowser
Chassis: Constructed from 100 x 50 RSC fully welded with front standing plate and A frame drawbar. Hot dip galvanized
Axle/Suspension: Single solid beam axle fitted with heavy duty 6 stud 205mm pcd hubs fitted with taper roller bearings
Wheels & Tyres: 2 no 10.75" x 15.3" flotation tyres on 6 stud rims
Coupling: 2" forged welded ring eye
Ancillary Equipment: Telescopic screw jack on drawbar
Outer bund tank:
- Cylindrical in section with removable top section for tank access
- Rear access door fitted with stainless steel hinge and fully lockable
- Bund contains 110% of inner tank content
- 4 lifting eyes
- Fork lift pockets (for use when tank off of chassis only)
Inner Fuel Tank:
- Constructed from translucent heavy duty polyethylene
- 2" filler cap & chain
- 2" vent valve
- Top mounted 1/2" BSP feed & return points
- Ball valve in base of tank to pump
- Pressure relief valve

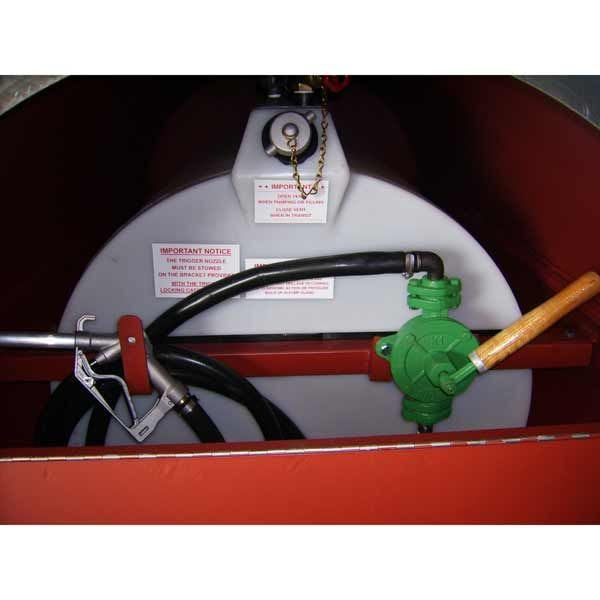

Pump:
- K2 Semi rotary hand pump fitted with 15' of 1" fuel hose c/w trigger nozzle and stowed on bracket
- Fitted with in-line 'Y' strainer
- All contained within lockable bund area
- 12V Pump upgrade available at extra cost
Finish:
- Primer & 2 top coats - single British Standard (BS) colour
Specifications
| Product Ref | TE |
|---|---|
| Volume (litres) | 2,140 |
| Length (mm) | 3,378 |
| Width (mm) | 1,803 |
| Height (mm) | 1,982 |
| Weight (kg) | 700 |
| Lead time (working days) | 7 |
