2140 Litre UN Approved EU Highway Diesel Bowser - Twin Axle
2140 Litre UN Approved EU Highway Diesel Bowser - Twin Axle
- Diesel
- Gas Oil
- HVO
- Plastic
- Steel
- Bunded
Estimate delivery costs
Your postcode lets us show accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it isn't stored or shared.
Couldn't load pickup availability

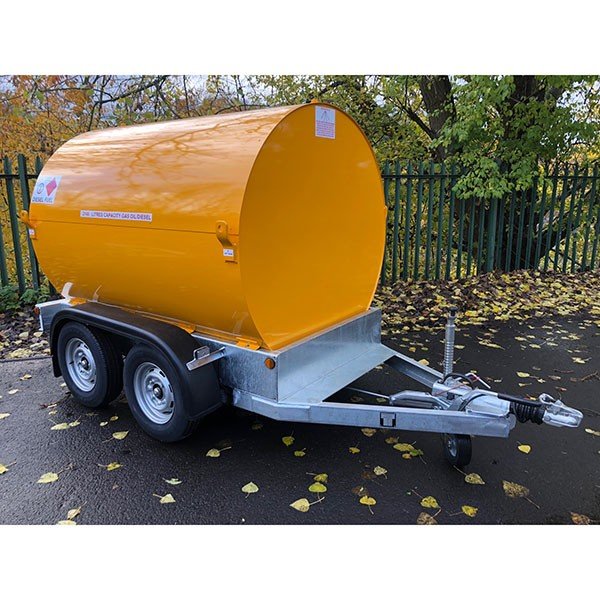

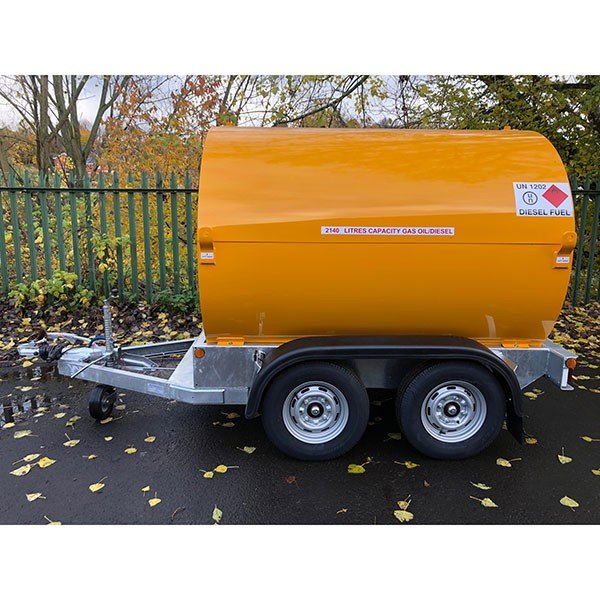

2140 LITRE U.N. APPROVED BUNDED DIESEL - TWIN AXLE EU HIGHWAY BOWSER
2140 litre (470 gallons) road towable bunded diesel bowser. Certified UN 1202 (For Road Haulage).
Like to view the bowser ? Please click on the video tab below for a walk around showing the design & features of this bowser
Chassis: Constructed from with 5mm pressed steel section, fully welded with 100 x 50 RSC, ‘A’ frame drawbar & front standing plate, pressed rear lighting channel. Hot dip galvanized.
Axle/Suspension: Knott-Avonride twin 1500Kg torsion beams fitted with 200 x 50 Auto reverse brakes.
Wheels & Tyres: 4 No 175 x 13 x 8 ply radial tyres on 4 stud 5 ½” pcd rims.
Coupling: Knott-Avonride 3000kg posibrake over run auto, reverse c/w spring assisted handbrake lever, breakaway cable. Coupling fitted with 40mm ring eye or 50mm ball
Ancillary Equipment: Tandem moulded mudguards, mud flaps, telescopic front jockey wheel, side reflectors, front markers, full road lighting c/w 13 pin plug and 7 pin adaptor.
Outer bund tank:
- Cylindrical in section with removable top section for tank access
- Rear access door fitted with stainless steel hinge and fully lockable
- Bund contains 110% of inner tank content
- 4 lifting eyes
- Fork lift pockets (for use when tank off of chassis only)
Inner Fuel Tank:
- Constructed from translucent heavy duty polyethylene
- 2" filler cap & chain
- 2" manual vent valve
- Top mounted 1/2" BSP feed & return points
- Ball valve in base of tank to pump
- Pressure relief valve
Pump:
- K2 Semi rotary hand pump fitted with 15' of 1" fuel hose c/w trigger nozzle and stowed on bracket
- Fitted with in-line 'Y' strainer
- All contained within lockable bund area
- Optional upgrades at extra cost available on request: Electric Pump, Petrol Pump, Non Resale Flowmeter
Finish:
-
Primer & 2 top coats - single British Standard (BS) colour
Specifications
| Volume (litres) | 2,140 |
|---|---|
| Length (mm) | 3,582 |
| Width (mm) | 1,790 |
| Height (mm) | 1,930 |
| Weight (kg) | 900 |
| Lead time (working days) | 7 |
Delivery Terms
Lead time approx. 2 weeks but please check for current lead time
The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page. Standard tank deliveries are "kerbside", which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.
Tanks over 2,500L — articulated lorry, customer offload
These tanks are delivered on an articulated vehicle (approximately 16.5m long × 2.6m wide × 3m high) which has no offloading on board. It is the customer's responsibility to offload the tank, which may require a telehandler or forklift.
Curtain-sided vehicles are also used, so please note that if there are obstacles or overhanging branches on the road to the delivery site, the driver may refuse to drive to the location due to the risk of damaging the vehicle. Please let us know about any obstructions before delivery so we can arrange alternative transport.
18-tonne tail-lift HGV
This vehicle is roughly the size of the largest bin lorries — approximately 8.2m long × 2.6m wide × 4m high, and often curtain-sided. If there are overhanging branches, these vehicles will not attempt the route, so a smaller vehicle should be requested.
Tanks are lowered to the ground but not positioned, as this is a kerbside delivery. If a smaller vehicle is required, email sales@fueltankshop.co.uk quoting your order number and name.
HIAB delivery
HIAB delivery is available but must be requested, and carries an additional cost. Email sales@fueltankshop.co.uk quoting your order number and name, and we'll come back to you with a price.
Accessories
Most accessories are delivered within 1–3 working days. Certain products and postcodes may take longer — check the product page for current information. If you need them sooner we can sometimes offer a next-day service; please contact us to discuss. If an item is out of stock we'll advise the expected lead time, and you're free to cancel for a full refund.
Returns Information
Customers may return items within 14 calendar days, as set out in section 7 of our Terms & Conditions.
All items must be returned unused. Refunds cannot be issued for used or previously installed items.
Please be aware that returning a tank can be complicated and expensive, so do check you're ordering the correct item — we strongly suggest checking the dimensions carefully before you buy.
How to return an item
- Complete the form on our returns page with details of your order.
- Once your request is approved, we'll issue a Returns Authorisation Number (RAN) along with instructions on how and where to return your order, and any costs involved.
- Please do not return any goods without this authorisation. Goods cannot be accepted without a valid RAN.
- Returns are not accepted at our Minehead office. Please wait until we contact you before returning anything.
