PRODUCT REF · 2140ROAD-Hand

2140 Litre UN Approved EU Highway Diesel Bowser

2140 Litre UN Approved EU Highway Diesel Bowser

  • Diesel
  • Gas Oil
  • HVO
  • Steel
  • Bunded
  • Customer Off Loading
Volume2140 L
Weight850 kg
L · W · H (mm)3684 × 1981 × 1981
from £7,378.98£8,854.78
ex. VAT inc. VAT £8,854.78 inc. VAT £7,378.98 ex. VAT
Lead time approx. 4 weeksPrice match guarantee
Choose Pump

Estimate delivery costs
UK delivery Your tank, delivered when you need it
Manufacturer warranty Up to 10 years on selected tanks
OFTEC certified With installation service, selected tanks only
0% finance available Trade accounts welcome, apply on-site today
Enquire
Ask for a price match
View full details

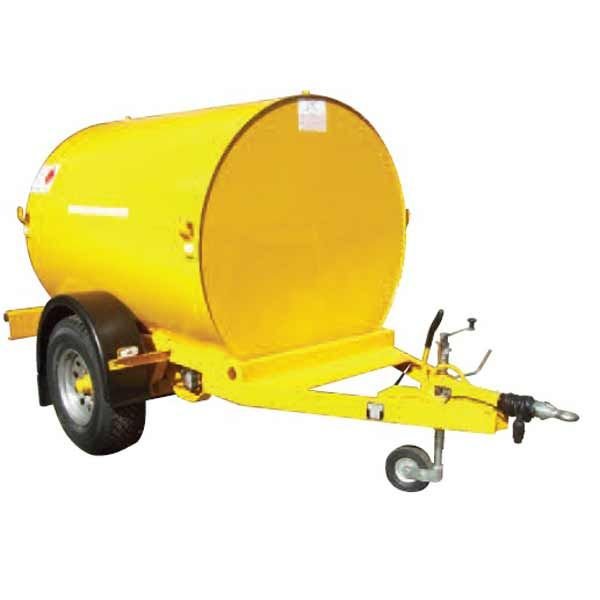

2140 Litre UN Approved Bunded EU Diesel Bowser - Highway Bowser

2140 litre (470 gallons) road towable bunded diesel bowser. Certified UN 1202 (For Road Haulage).

Like to view the bowser ? Please click on the video tab below for a walk around showing the design & features of this bowser

Chassis: Constructed from 100 x 50 RSC fully welded with front standing plate and A frame drawbar & hot dip galvanized

Axle/Suspension: Single Avonride 3000kg rubber torsion beam axle and fitted with Knott 300 x 60 Auto reverse brakes operated by cables and rod

Wheels & Tyres: 2 no 235/85 x 16 x 12 ply radial tyres fitted to 5 stud 6 1/2" pcd rims

Coupling: Knott 3000kg Avonride posibrake over run auto reverse c/w spring assisted handbrake lever, breakaway cable and 40mm ring eye or 50mm ball

Ancillary Equipment: Plastic mudguards, mud flaps, rear support stand, telescopic front jockey wheel, side reflectors, front markers, full road lighting c/w 13 pin plug & 7 pin adaptor

Outer bund tank:

  • Cylindrical in section with removable top section for tank access
  • Rear access door fitted with stainless steel hinge and fully lockable
  • Bund contains 110% of inner tank content
  • 4 lifting eyes
  • Fork lift pockets (for use when tank off of chassis only)

Inner Fuel Tank:

  • Constructed from translucent heavy duty polyethylene
  • 2" filler cap & chain
  • 2" manual vent valve
  • Top mounted 1/2" BSP feed & return points
  • Ball valve in base of tank to pump
  • Pressure relief valve

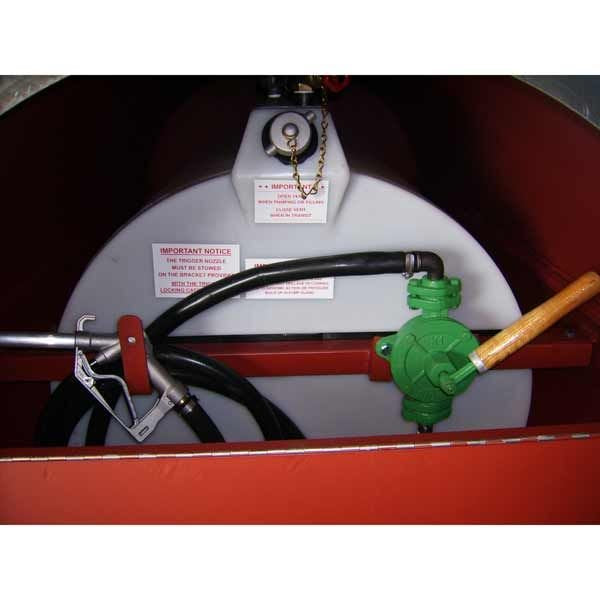

Pump:

  • K2 Semi rotary hand pump fitted with 15' of 1" fuel hose c/w trigger nozzle and stowed on bracket
  • Fitted with in-line 'Y' strainer
  • All contained within lockable bund area
  • 12V Pump upgrade available at extra cost

Finish:

  • Primer & 2 top coats - single British Standard (BS) colour

Specifications
Product RefTE
Volume (litres)2,140
Length (mm)3,684
Width (mm)1,981
Height (mm)1,981
Weight (kg)850
Lead time (working days)7
Delivery Terms

Lead time approx. 4 weeks

The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page. Standard tank deliveries are "kerbside", which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.

Tanks over 2,500L — articulated lorry, customer offload

These tanks are delivered on an articulated vehicle (approximately 16.5m long × 2.6m wide × 3m high) which has no offloading on board. It is the customer's responsibility to offload the tank, which may require a telehandler or forklift.

Curtain-sided vehicles are also used, so please note that if there are obstacles or overhanging branches on the road to the delivery site, the driver may refuse to drive to the location due to the risk of damaging the vehicle. Please let us know about any obstructions before delivery so we can arrange alternative transport.

18-tonne tail-lift HGV

This vehicle is roughly the size of the largest bin lorries — approximately 8.2m long × 2.6m wide × 4m high, and often curtain-sided. If there are overhanging branches, these vehicles will not attempt the route, so a smaller vehicle should be requested.

Tanks are lowered to the ground but not positioned, as this is a kerbside delivery. If a smaller vehicle is required, email sales@fueltankshop.co.uk quoting your order number and name.

HIAB delivery

HIAB delivery is available but must be requested, and carries an additional cost. Email sales@fueltankshop.co.uk quoting your order number and name, and we'll come back to you with a price.

Accessories

Most accessories are delivered within 1–3 working days. Certain products and postcodes may take longer — check the product page for current information. If you need them sooner we can sometimes offer a next-day service; please contact us to discuss. If an item is out of stock we'll advise the expected lead time, and you're free to cancel for a full refund.

Returns Information

Customers may return items within 14 calendar days, as set out in section 7 of our Terms & Conditions.

All items must be returned unused. Refunds cannot be issued for used or previously installed items.

Please be aware that returning a tank can be complicated and expensive, so do check you're ordering the correct item — we strongly suggest checking the dimensions carefully before you buy.

How to return an item

  • Complete the form on our returns page with details of your order.
  • Once your request is approved, we'll issue a Returns Authorisation Number (RAN) along with instructions on how and where to return your order, and any costs involved.
  • Please do not return any goods without this authorisation. Goods cannot be accepted without a valid RAN.
  • Returns are not accepted at our Minehead office. Please wait until we contact you before returning anything.

Start a return request

Video
Downloadable Documents
Tank Compliance

The 2140 litre bunded diesel highway bowser is the flagship of the fuel bowser range. Favoured by plant hire companies, the bunded diesel EU highway bowser as it's a robust and highly capable fuel bowser, with extreme offroad and on road capabilities.

The single axle ensures a high ground clearance for off-roading without compromising the comfortable on-road towing, this bunded diesel EU highway bowser is fully certified for the public highway.

Manufactured from a fully welded steel galvanised chassis and heavy duty running gear.

The tank is constructed from a polyethylene inner tank to ensure a clean fuel storage solution and secured in a steel outer bund which has four lifting points, two fork truck points (for use when the tank is out of the chassis) and a lockable rear door to protect the pumping equipment and contents.

Our bunded diesel EU highway bowser is fully U.N certified for 10 YEARS for the storage and transportation of fuel. Please see link https://www.hse.gov.uk/cdg/commonproblems/bowsers.htm

Delivery Information

Our supplier can deliver to mainland UK and Northern Ireland locations but excludes offshore islands and locations and delivery is not included in the tank price

Delivery is a kerbside delivery service only and not a "drop at your door service".

Arrangements must be made by the customer to manoeuvre tanks into position.

Deliveries can be made by articulated lorry and it is the customers' responsibility to ensure safe and adequate access for large lorries plus off loading facilities at the delivery address.

Off loading of heavy items should be made by fork lift with extended forks or similar heavy lifting equipment

Tanks cannot be left without a customer signature
