PRODUCT REF · TE2000SLAT-10016

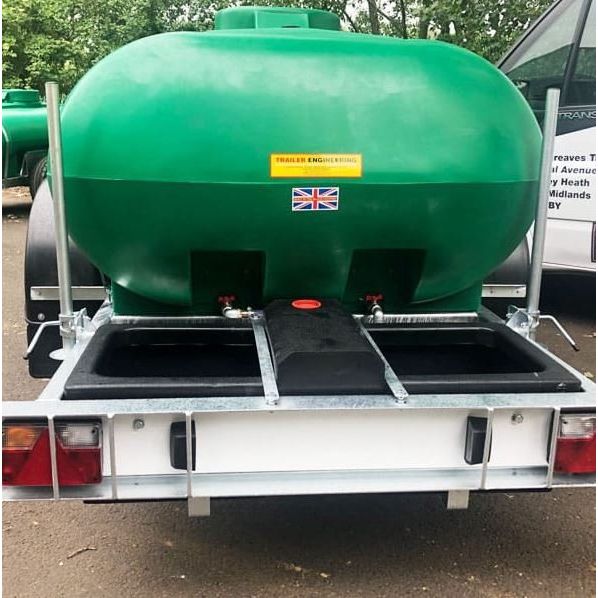

2000 Litre Animal Feeder Site Tow Bowser With Trough
2000 Litre Animal Feeder Site Tow Bowser With Trough
- Non Potable Water
Estimate delivery costs
Your postcode lets us show accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it isn't stored or shared.
Couldn't load pickup availability
2000 Litre Animal Feeder Site Tow Bowser With Trough

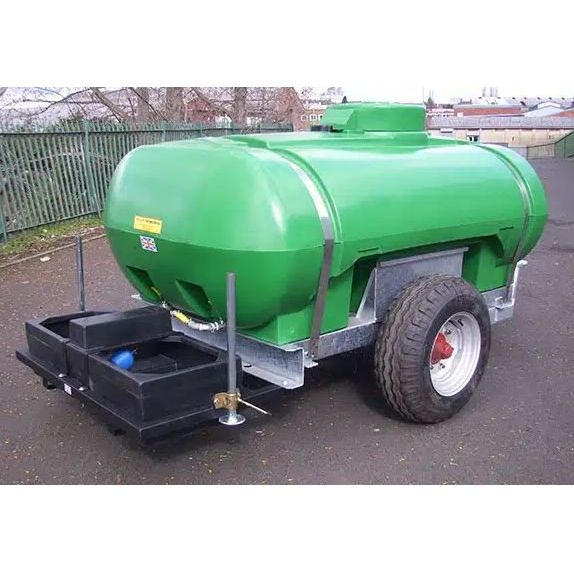

This great Site Tow Animal Feeder with its large trough is ideal for off-roading across farmer's fields to deliver water to the livestock as it is manufactured with flotation wheels to enable good ground clearance and a fully welded chassis to ensure it is strong for those rough terrains.
Fitted with two rear stabilising drop stands to make sure the trailer does not tip back when an animal is drinking from the trough. The trough has a self fill feature where it will refill the trough when the water has dropped below the required amount.
- Great for use off-road with high clearance and flotation wheels
- No need to refill the trough manually thanks to its built-in float switch
- Safe and stable – deployable drop stands prevent the trailer tipping
- Perfect for a wide range of livestock such as sheep, cattle, deer, and horses
- Resistant to weather and wear with galvanised steel construction
- Suitable For Drinking Water - Potable - Blue Only
- Not WRAS Approved
Technical Specifications
CHASSIS:
Our 2000 Litre Animal Feeder Site Bowser With Large Trough is constructed from a 5mm pressed steel section fully welded with a 100 x 50 R.S.C ‘A’ frame drawbar and a front standplate.
AXLE/SUSPENSION:
The Trailer Engineering 2000 Litre Animal Feeder Site Bowser With Large Trough Single comes with a solid beam axle fitted with 6 stud 205 PCD Hubs.
WHEELS AND TYRES:
2 No. 10.5 X 15 flotation tyres on 6 stud 205 PCD rims.
COUPLING:
2” Forged solid ring eye.
TANK:
Our 2000 Litre Animal Feeder Site Bowser With Large Trough comes with a polyethylene moulded tank, elliptical in section, with internal anti-surge baffle, 2” front draw off, 2 rear outlet connections, fitted with an 18” lockable outer hinged manlid cover, inner sealed vented manlid. Tank secured to chassis with 2 stainless steel straps.
ANCILLARY EQUIPMENT:
Front Screwjack. Atlas Plastics 30 Gallon Double Water Trough. Tough Strong and a leading industry product fitted with B.S Ball valve. Float protect by plastic cover. 2 rear prop stands.
Dimensions of Animal Trough :- 47" x 19 x 11 (1193 x 482 x 280 mm)
Capacity - 136 litres/ 30 Gal.
FINISH:
The 2000 Litre Animal Feeder Site Bowser With Large Trough's Poly tank is available in yellow, green, blue or red (blue drinking water) Galvanised chassis.
PUMP:
K1 semi rotary hand pump c/w in line ‘Y’ strainer, 15’ of 1" fuel hose & trigger nozzle. Options available on request: Electric Pump, Petrol Pump, Non Resale Flowmeter.
FINISH
Tank- Primer and two top coats, single British Standard colour. Galvanised Chassis.
Only legal to be towed around a site, cannot be towed on public roads/highways
Specifications
| Product Ref | TE |
|---|---|
| Volume (litres) | 2,000 |
| Length (mm) | 3,861 |
| Width (mm) | 1,854 |
| Height (mm) | 1,600 |
| Weight (kg) | 460 |
| Lead time (working days) | 12 |
