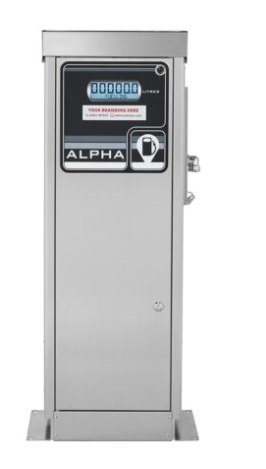

Pumptronics ALPHA Heavy Duty Diesel Pump - Right Holster (ATEX Certified)

Product Ref: ALPHA/50A / ALPHA/70A / ALPHA/90A

Home Delivery

United Kingdom mainland delivery from FREE ex VAT

Free Parcel Delivery (Highlands & Islands are charged a higher fee than standard)

check delivery cost

updown

Pumptronics ALPHA Heavy Duty Diesel Pump - Right Holster (ATEX Certified) Downloadable Documents

pdf

pdf

pdf

Pumptronics ALPHA Heavy Duty Diesel Pump - Right Holster (ATEX Certified) Description

Pumptronics ALPHA Heavy Duty Diesel Pump - Right Holster (ATEX Certified)

Product Features:

  • Designed for use with diesel or biodiesel up to B30.
  • Meter: 4 Piston +/-0.25%.
  • Pump Unit: Belt Driven with air separator & Integral Filter.
  • Cabinet: Stainless Steel, Lockable front door with stay for ease of maintenance. Removable back panel. Suitable back panel. Suitable for above or below ground pipework. External base mounting holes.
  • Display: LCD display with back light. Shows up to 99,999.9 Litres, totaliser shows up to 99,999,999 litres. Option second sided display available.
  • Pulser: Integral 10:1 or 100:1 pulser transmitter for simple connection to fuel management systems.
  • Dimensions: H- 1245mm, W- 550mm, L- 530mm
  • Simple to maintain (Good access for service engineers).
  • Standard Equipment: 3.66m (12ft) steel braided hose, 10:1 or 100:1 pulser & suction inlet has flexible connector.
  • NOZZLE NOT INCLUDED
  • New and improved ALPHA display - simple & faster configuration and calibration sequence (electronic calibration)
  • Clear display with bright white LED back lighting.
  • Improved viewing angle.
  • Larger Display with 30mm high main characters.
  • Fifteen 12mm high characters on the lower line of the display allowing clearer instructions & error messaging to be shown.
  • ATEX certification Number: CML 15ATEX9183.
  • 2 Year Warranty.

Pumptronics ALPHA Heavy Duty Diesel Pump - Right Holster (ATEX Certified) Specification

  • Product Code: HY
  • Guarantee: 2 Year Guarantee
  • Suitable For Fuel: Diesel, Bio Fuel

Pumptronics ALPHA Heavy Duty Diesel Pump - Right Holster (ATEX Certified) Delivery Information

Tanks:

The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page.  Standard tank deliveries are "kerbside" which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.



Tanks Over 2500L – Articulated Lorry – Customer Offload:

These tanks will be delivered on an articulated vehicle (approximately 16.5m long x 2.6m wide x 3m high) which has no offloading on board, it is the customer's responsibility to offload the tank, which may require a telehandler / forklift.  Curtain sided vehicles are also used, so please note that if there are obstacles or hanging branches on the road to the delivery site etc, the driver may refuse to drive the vehicle to the customer's location due to the possibility of damaging the vehicle. Please let us know if there are any obstructions before delivery, so we can arrange alternative transport.



18 Tonne Tail Lift HGV

This vehicle is the size of the largest bin lorries (for comparison) and is approximately 8.2m long x 2.6m wide x 4m high, often curtain sided so please note that if there are hanging branches etc, these vehicles will not attempt to drive down due to the possibility of damaging the vehicle and so it is recommended that a smaller vehicle is requested. Tanks will be lowered to the ground but not positioned as this is a kerbside delivery.  If a smaller vehicle is required, please email us at sales@fueltankshop.co.uk quoting your order number and name.



HIAB Delivery

HIAB delivery is available but must be requested and there will be an additional cost for this service. If a HIAB delivery is required, please email us at sales@fueltankshop.co.uk quoting your order number and name, and we will come back to you with a price for this service.



Accessories:

Most accessories will be delivered within 1-3 working days (certain products and postcodes may take longer, please check the product page for update to date information). If you require them quicker, we can on occasions offer a next day service (please contact us to discuss). If the item(s) are out of stock, we will advise you of the expected lead time, and you will of course have the opportunity to cancel with a full refund.





Pumptronics ALPHA Heavy Duty Diesel Pump - Right Holster (ATEX Certified) Returns Information

Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **

All Items must be returned unused, refunds cannot be issued for used or previously installed items.

Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

If you wish to return goods, please complete the form on this page to provide further information.

Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.

Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.

Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.

View Fuel Tank Shop return policy now.
