Western ABBI 985 Litre Single Axle Steel Highway Tow Diesel Bowser
Product Ref: H10ART
Lead time approx. 3 - 4 working days
Home Delivery
United Kingdom mainland delivery from FREE ex VAT
FREE Delivery to Mainland UK, Customer Offload - Postcode Exclusions Apply
You may also need:
login to saveWestern ABBI 985 Litre Single Axle Steel Highway Tow Diesel Bowser What is a bunded tank?
A bunded tank consists of a 'tank within a tank'.
The inner tank is the primary storage vessel, whilst the outer tank acts as a failsafe.
In the event of a spill, surplus fuel will safely and securely be stored within the outer tank and an environmental pollution incident will be averted.
Western ABBI 985 Litre Single Axle Steel Highway Tow Diesel Bowser Downloadable Documents
Western ABBI Highway Tow Data SheetWestern ABBI 985 Litre Single Axle Steel Highway Tow Diesel Bowser Description

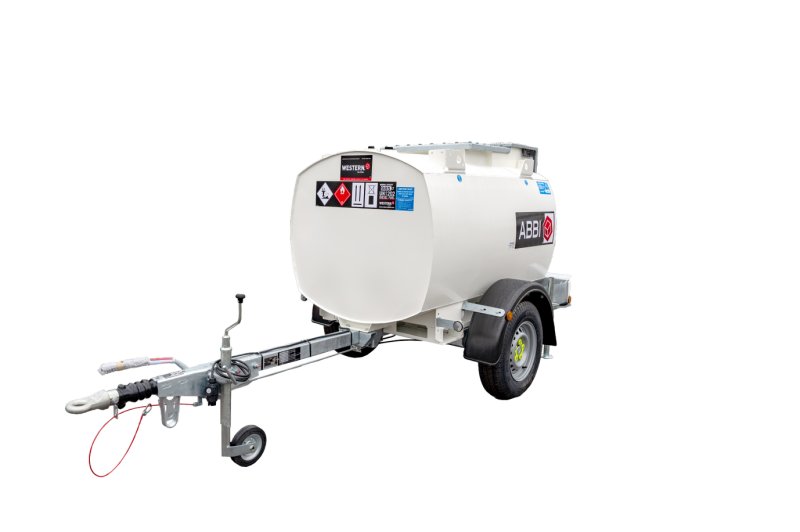

Western ABBI H10ART 985 Litre Single Axle Steel Bunded Highway Tow Diesel Bowser
The Abbi highway is a safe and reliable fuel storage solution for any location that requires quick refuelling of any type of construction or auxiliary equipment. Abbi tanks can easily transport fuel to any given location,offering ultimate convenience to on-road transportation.
The Abbi highway tow is mounted on a type approved highway trailer fitted with European specified lighting and under- gear. This towable unit offers fuel transport convenience, allowing you to travel at ease between work sites and depots
Due to its highway approved design, this range is ideal for road work and work sites that require fuel transportation across highways. Abbi highway tanks can be towed and quickly moved to machinery, vehicles, generators and any other equipment
We have a range of pump options for the Western ABBI's including:
- 12v pump kit including 4 m delivery hose and manual nozzle
- K2 hand pump kit with 4 m delivery hose and manual nozzle
- There are other options available, including 24v pumps, 240v pumps, 110v pumps, digital flow meters and filters. Please enquire for details.
Key Benefits of Western ABBI
- 985 litre model can be transported full of diesel without the need for ADR Driver Training.
- Full load lifting eyes and internal baffles designed to allow handling of the ABBI full of fuel
- Four way forklift pockets, so the ABBI can be lifted with ease from any side
- Secure lockable access hatch to house pumps (electric or hand), and feed and return connections for up to 1 generator
- Internally baffled to maximise stability and safety when bowser moved when full
- Braked axle and road legal with lighting
ABBI H10ART Specification
- 1 x 3” Fill Cap
- 1 x 2” Fill Cap
- Contents Gauge
- 1” Pump Feed
- Pressure / Vacuum Vent
- Optional Generator Feed & Return Ports
- Pump Bracket
- Tank Inspection Plate
Applications and Uses
Fast Mobile Refuelling
A safe and reliable fuel storage solution for any location that requires quick refuelling of construction or auxiliary equipment.
Limited-Access Work Sites
Due to its mobile design, the ABBI tank can transport fuel to any site - reaching even the most difficult locations. The ABBI can be safely lifted but crane or forklift precisely and quickly.
Small and Short-Term Fuel Requirement
An ideal solution for short term, on site fuel storage. The ABBI can be used as a standby tank or a mobile refueller - offering both applications as one unit.
| Model | H10ART |
| Capacity (Nominal) | 985 Litres |
| Capacity (safe fill 95%) | 936 Litres |
| Dimensions (L x W x H) | 3390 x 1600 x 1700mm |
| Weight - Empty | 655 kg |
| Weight - Full | 1541 kg |
| Design Approvals | UN-IBC |
Pumps Explained
12V Pump
Electric fuel pump for dispensing diesel.
- 12v Pump, 4m cable c/w battery clips
- Heavy duty 3/4'' 4 m delivery hose
- 1.2 m suction hose
- Bypass
- Mechanical flow meter
- 3/4'' Automatic shut off trigger nozzle
- 45 LPM flow rate
- 30 m duty run-time
Hand Pump
- Manual operation
- Semi Rotary fuel pump
- Suction Hose
- Heavy Duty 3/4'' 4 m Delivery hose
- Manual Operating trigger nozzle
- Continuous duty cycle
Western ABBI 985 Litre Single Axle Steel Highway Tow Diesel Bowser Specification
- Product Code: WT
- Delivery Options: Fast Delivery, Customer Offloading
- Guarantee: 8 Year Warranty
- Made From: Steel
- Suitable For Fuel: Diesel, Gas Oil, HVO
- Tank Type: Bunded, Transportable
- UN Certified / Approved for Transport under ADR: Yes
- Footprint (L+W): 3390mm + 1600mm
Western ABBI 985 Litre Single Axle Steel Highway Tow Diesel Bowser Delivery Information
Our supplier can deliver to mainland UK and Northern Ireland locations but excludes offshore islands and locations and delivery is not included in the tank price
Delivery is a kerbside delivery service only and not a "drop at your door service".
Arrangements must be made by the customer to manoeuvre tanks into position.
Deliveries can be made by articulated lorry and it is the customers' responsibility to ensure safe and adequate access for large lorries plus off loading facilities at the delivery address.
Off loading of heavy items should be made by fork lift or similar heavy lifting equipment
Tanks cannot be left without a customer signature
Western ABBI 985 Litre Single Axle Steel Highway Tow Diesel Bowser Tank Compliance
A steel in steel U.N (United Nations) Approved IBC (Intermediate Bulk Container) suitable for transporting diesel fuel on the highway.
The new ABBI-ART Mk2 is fully bunded to ensure environmental compliance with Pollution Prevention Guidelines (PPG2)
Western ABBI 985 Litre Single Axle Steel Highway Tow Diesel Bowser Returns Information
Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **
All Items must be returned unused, refunds cannot be issued for used or previously installed items.
Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).
If you wish to return goods, please complete the form on this page to provide further information.
Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.
Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.
Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.
