Piusi K33 ATEX Fuel Flow Meter

Product Ref: F00570030

Home Delivery

United Kingdom mainland delivery from FREE ex VAT

Free Parcel Delivery (Highlands & Islands are charged a higher fee than standard)

check delivery cost

Piusi K33 ATEX Fuel Flow Meter Downloadable Documents

Piusi K33 ATEX Fuel Flow Meter Description

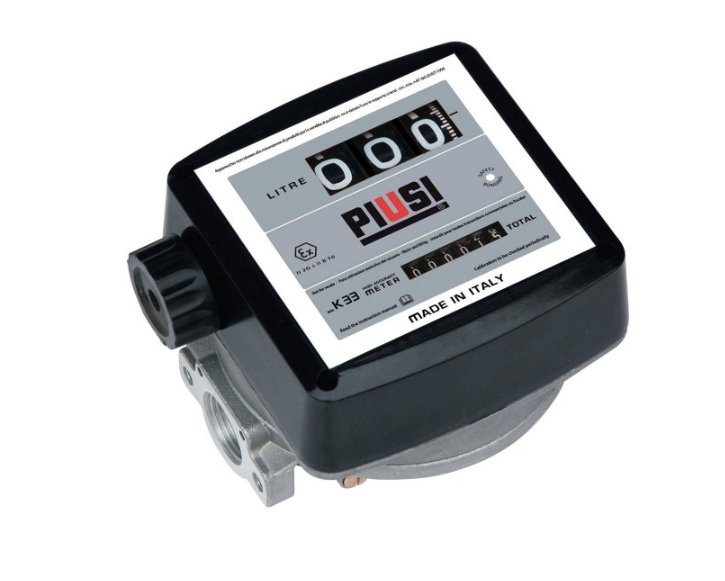

Piusi K33 ATEX Fuel Flow Meter

The Piusi ATEX approved K33 fuel flow meter is designed for the measuring of dispensed petrol, kerosene and diesel in flammable environments. Able to measure up up 999.9 litres at a time and easy to install and calibrate, the ATEX approved K33 is a flexible petrol and diesel flow meter. These Piusi fuel flow meters can be implemented in either rigid or flexible pipe lines, or installed directly onto the pump.

  • Diesel, kerosene and petrol flow meter
  • Flow rate: 20-120lpm
  • Can be rotated to allow flow from 4 directions
  • 1' F x F BSP Inlet/Outlet
  • Nutating disk system
  • Accuracy +/-1% after calibration
  • 3 digit resettable and 6 digit non-resettable totaliser
  • ATEX certified to 2 G IIB T=85°C (T6)
  • For diesel, petrol, kerosene, AVGAS & JET A1

Piusi K33 ATEX Fuel Flow Meter Specification

  • Product Code: HY
  • Suitable For Fuel: Petrol, Diesel, Gas Oil
