1240 Litre Single Skin Steel Oil Tank

Product Ref: FTS1240

Supplied complete with Clock Type Contents Gauge & Bottom Outlet Fitting Kit

1 Year Guarantee Steel Diesel, Gas Oil, Heating Oil Diesel, Gas Oil, Heating Oil Diesel, Gas Oil, Heating Oil Slimline
  • Volume: 1240ltr
  • Weight: 125.000kg
  • Dimensions: L:1525mm W:640mm H:1250mm
  • Lead time: 7-10 Working Days

    Home Delivery

    United Kingdom mainland delivery from FREE ex VAT

    FREE STANDARD Delivery for selected STEEL TANKS - TAIL LIFT Delivery (available for most tanks under 2500 litres) - Lowers tank to ground level to assist in off-loading (Additional charges may be applicable to Scotland, Highlands and Islands & N Ireland)

    check delivery cost

    1240 Litre Single Skin Steel Oil Tank Can I fit a single skin oil tank?

    For some DOMESTIC oil tank installations (in England and Scotland, NOT Wales) fitting a single skin oil tank can be suitable solution.

    In ALL cases, an 'oil storage risk assessment' should be carried out to determine the correct tank and installation (this can be carried out by an OFTEC approved engineer).

    In brief a Bund or Bunded Tank is required in domestic situations if:

    • Your tank is in Wales.
    • You are storing over 2500 litres.
    • Your tank is near an open drain or loose-fitting manhole.
    • Your tank is within 10m of controlled water such as a river, stream etc.
    • Your tank is located where any spillage could travel over hard ground to reach controlled water.
    • Your tank is located within 50m of a borehole, spring or well.
    • Your tank vent is not visible from the fill point (such as an extended fill point)
    • Your oil use is for a building other than a single-family dwelling.
    • Any other unique hazards to your site.

    ALL DOMESTIC oil tanks over 2500 litres need to be bunded.

    All NON-DOMESTIC oil tanks over 200 litres need to be bunded.

    Please refer to our “resources” page for more information.

    1240 Litre Single Skin Steel Oil Tank Description

    1240 Litre Steel Single Skin Oil Tank

    Quality made budget tank.

    1240 Litre (Approx 272 Gallon) single skin kerosene storage tank.

    This steel tank is ideal for the storage of home heating oil.

    These steel single skin home heating oil storage tanks are made from mild steel and offer an inexpensive storage option where a bunded tank is not required.


    Supplied complete with:

    • 2" vent including cap
    • 2" fill point with cap and chain
    • 1" BSP Bottom Outlet (complete with Bottom Outlet Fitting Kit/Isolation Valve & Filter)
    • 1/2" drain
    • Clock Contents Gauge
    • 2 mm thick steel plate (internally braced)
    • Undercoated in red oxide and top coated in a gloss green paint finish

    Optional Extra:

    • Channel Runners - raising tank off the ground to keep tank base dry (not included in quoted height dimension)
    • Single lifting eye can be added to the top of tank for easy positioning

    Bottom Outlet is positioned 20mm from the bottom of the tank. The 1/2" outlet for drain valve is at the back of the tank, which comes with a plug.

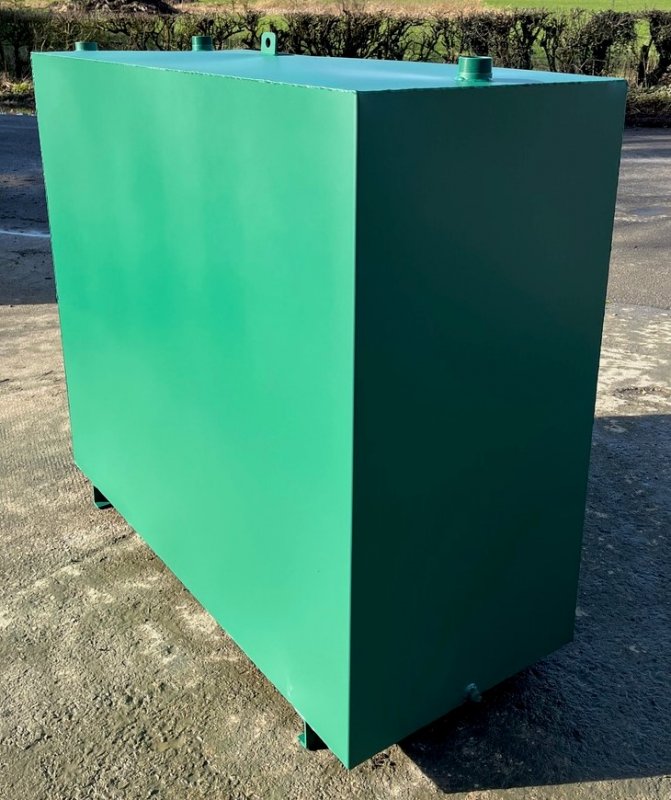

    (Image shown is for illustration purposes only).



    1240 Litre Single Skin Steel Oil Tank Specification

    • Product Code: HH
    • Delivery Options: Tail Lift Delivery
    • Guarantee: 1 Year Guarantee
    • Made From: Steel
    • Suitable For Fuel: Diesel, Gas Oil, Heating Oil
    • Tank Shape: Slimline
    • Tank Type: Single Skin

    1240 Litre Single Skin Steel Oil Tank Installation requirements

    This Oil Tank must be installed and maintained in accordance to the current OFTEC guidelines, by an OFTEC Registered Technician or similarly competent person.

    Fuel Tank Shop and the manufacturer will not be responsible for oil tank installations which do not comply with these requirements.

    OFTEC Base Construction Guidelines (in brief):

    • Adequate for the weight of the tank when full
    • Non-combustible, imperforate and level
    • Constructed of concrete, paving stones or stonework
    • Large enough to extend 300mm beyond ALL sides of the tanks

    1240 Litre Single Skin Steel Oil Tank Delivery Information

    Tanks:

    The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page.  Standard tank deliveries are "kerbside" which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.



    Tanks Over 2500L – Articulated Lorry – Customer Offload:

    These tanks will be delivered on an articulated vehicle (approximately 16.5m long x 2.6m wide x 3m high) which has no offloading on board, it is the customer's responsibility to offload the tank, which may require a telehandler / forklift.  Curtain sided vehicles are also used, so please note that if there are obstacles or hanging branches on the road to the delivery site etc, the driver may refuse to drive the vehicle to the customer's location due to the possibility of damaging the vehicle. Please let us know if there are any obstructions before delivery, so we can arrange alternative transport.



    18 Tonne Tail Lift HGV

    This vehicle is the size of the largest bin lorries (for comparison) and is approximately 8.2m long x 2.6m wide x 4m high, often curtain sided so please note that if there are hanging branches etc, these vehicles will not attempt to drive down due to the possibility of damaging the vehicle and so it is recommended that a smaller vehicle is requested. Tanks will be lowered to the ground but not positioned as this is a kerbside delivery.  If a smaller vehicle is required, please email us at sales@fueltankshop.co.uk quoting your order number and name.



    HIAB Delivery

    HIAB delivery is available but must be requested and there will be an additional cost for this service. If a HIAB delivery is required, please email us at sales@fueltankshop.co.uk quoting your order number and name, and we will come back to you with a price for this service.



    Accessories:

    Most accessories will be delivered within 1-3 working days (certain products and postcodes may take longer, please check the product page for update to date information). If you require them quicker, we can on occasions offer a next day service (please contact us to discuss). If the item(s) are out of stock, we will advise you of the expected lead time, and you will of course have the opportunity to cancel with a full refund.





    1240 Litre Single Skin Steel Oil Tank Returns Information

    Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **

    All Items must be returned unused, refunds cannot be issued for used or previously installed items.

    Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

    If you wish to return goods, please complete the form on this page to provide further information.

    Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.

    Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.

    Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.

    View Fuel Tank Shop return policy now.
