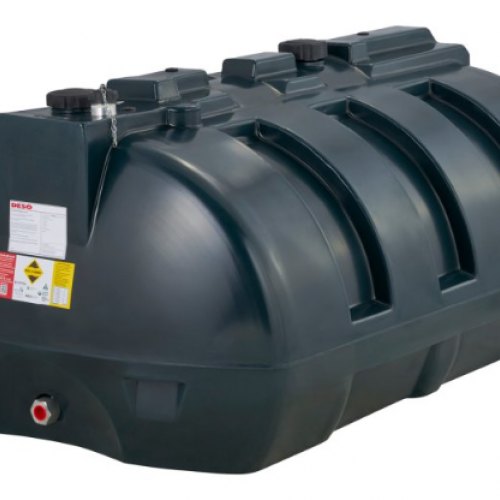

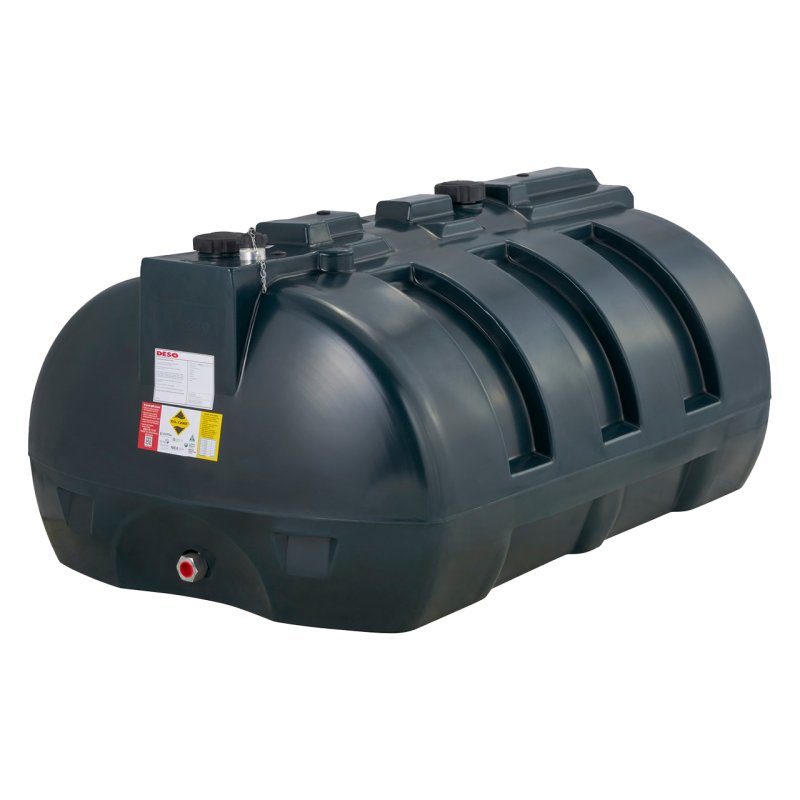

1200 Litre Low Profile Oil Tank - Deso LP1230T

For some DOMESTIC oil tank installations (in England and Scotland, NOT Wales) fitting a single skin oil tank can be suitable solution.

In ALL cases, an 'oil storage risk assessment' should be carried out to determine the correct tank and installation (this can be carried out by an OFTEC approved engineer).

In brief a Bund or Bunded Tank is required in domestic situations if:

• Your tank is in Wales.
• You are storing over 2500 litres.
• Your tank is near an open drain or loose-fitting manhole.
• Your tank is within 10m of controlled water such as a river, stream etc.
• Your tank is located where any spillage could travel over hard ground to reach controlled water.
• Your tank is located within 50m of a borehole, spring or well.
• Your tank vent is not visible from the fill point (such as an extended fill point)
• Your oil use is for a building other than a single-family dwelling.
• Any other unique hazards to your site.

ALL DOMESTIC oil tanks over 2500 litres need to be bunded.

All NON-DOMESTIC oil tanks over 200 litres need to be bunded.

Please refer to our “resources” page for more information.

Tank Drawing

Tank Drawing

Performance Declaration

Fill Table

Single Skin Tank Guarantee

Watchman DIP Settings

• Product Code: DS
• Delivery Options: Tail Lift Delivery
• Guarantee: 2 Year Guarantee
• Made From: Plastic, Planet Passionate
• Suitable For Fuel: Diesel, Gas Oil, Heating Oil
• Tank Shape: Low Profile
• Tank Type: Single Skin
• Footprint (L+W): 1750mm x 1050mm

This Oil Tank must be installed and maintained in accordance to the current OFTEC guidelines, by an OFTEC Registered Technician or similarly competent person.

Fuel Tank Shop and the manufacturer will not be responsible for oil tank installations which do not comply with these requirements.

OFTEC Base Construction Guidelines (in brief):

• Adequate for the weight of the tank when full
• Non-combustible, imperforate and level
• Constructed of concrete, paving stones or stonework
• Large enough to extend 300mm beyond ALL sides of the tanks
