Western Envirocube Cab 40000 Litre
Product Ref: ENV40
Lead time approx. 4 - 5 weeks
Custom Delivery Required
Delivery price on application.
You may also need:
login to saveWestern Envirocube Cab 40000 Litre What is a bunded tank?
A bunded tank consists of a 'tank within a tank'.
The inner tank is the primary storage vessel, whilst the outer tank acts as a failsafe.
In the event of a spill, surplus fuel will safely and securely be stored within the outer tank and an environmental pollution incident will be averted.
Western Envirocube Cab 40000 Litre Downloadable Documents
ENV Range Data SheetWestern Envirocube Cab 40000 Litre Description

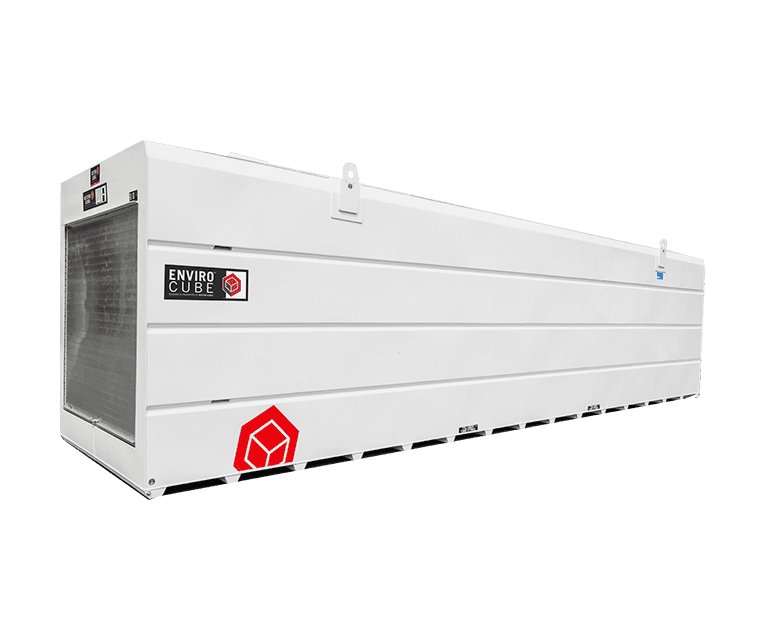

Envirocube Cab 40000 Litre Static Diesel Dispenser
110% bunded fuel storage tank to comply with PPG2 ({Pollution Prevention Guidelines) Regulations. Manufactured to BS799 Part 5- Specification for Oil Storage Tanks. Steel tank enclosed in steel, weatherproof outer bund- robust, durable product providing secure storage. Fitted with lifting eyes and fork-liftable base for ease of handling and relocation of tank (empty only). Secure, lockable bund compartment houses pump, nozzle, hoses and feed & return connections.Feed & return hoses can be fed through openings enabling generator to be run whilst compartment locked - helps to prevent theft and vandalism. All outlets are mounted above fuel level helping prevent seepage of fuel. Suction pipe to help remove any fluid from the bund. Inspection cover provides access to inner tank for maintenance and inspection.
We have a range of pump options for the Western Envirocube Cab including:
- 240V pump kit with hose and auto shut off nozzle with options for filters and flow meters
- 110V pump kit with hose and auto shut off nozzle with options for filters and flow meters
- 12v pump kit including 4m delivery hose and manual nozzle with options for filters and flow meters
- K2 hand pump kit with 4m delivery hose and manual nozzle
- There are also other options available, including 24v pumps, 240v pumps, 110v pumps, digital flow meters and filters. Please enquire for details.
Features
- Access hatch for easy access to the inner tank for routine maintenance and cleaning.
- Fully Bunded
- High Security locking system to protect your liquid assets.
- Built-in lockable equipment cabinet, providing safety and security from equipment or fuel theft.
- Roller Shutter Door
- 600mm depth cabinet
- 3” Fill Point
- 2” Fill Point
- 2" Vent
- 1 x ½” Generator Feed
- 2 x ½” Return Ports
- Contents Gauge
- 1/2" Pump Feed
- Inspection Cover
- Lifting Eyes and Forklift Pockets for Easy Tank Handling and Relocation when Empty.
Uses and Applications
Standby Power Application
The Envirocube Cab tanks are an ideal solution for large projects that require generator power installations, or other standby applications. They can be connected to 2 diesel powered pieces of equipment and refuel equipment via the pump at the same time.
Complete Fuelling Solution
Used for transport depots, plant yards and farms -offering a complete static fuelling point on site, reducing the risk of spills and unnecessary tank movements.
Bulk Fuel Storage
Envirocube Cab static tanks can be used to refuel vehicles, construction machinery and agricultural equipment efficiently. Ideal for large equipment fleets that require constant fuel storage on site - allowing significant cost savings with purchasing of fuel.
| Model | ENV40 |
| Capacity - Nominal | 40000 Litres |
| Capacity - Safe Fill (95%) | 38000 Litres |
| Dimensions (L x W x H) | 9364 x 2340 x 2573 mm |
| Weight - Empty | 6542 kg |
| Design Approvals | BS799 Part 5 & to Comply with PPG2 Regulations, Optional MSBFS2018:3 |
Pumps Explained
12V Pump
Electric fuel pump for dispensing diesel.
- 12v Pump, 4 m cable c/w battery clips
- Heavy duty 3/4'' 4 m delivery hose
- 1.2 m suction hose
- Bypass
- Mechanical flow meter

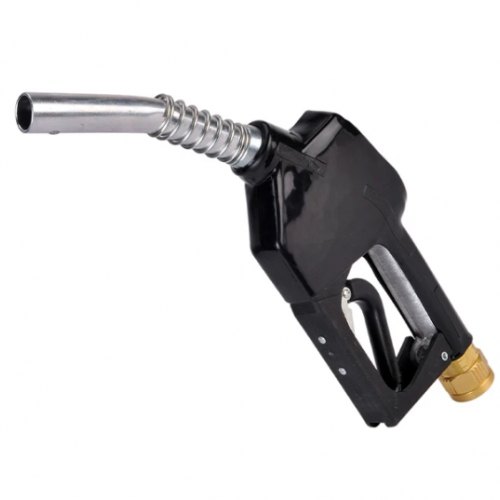

- 3/4'' Automatic shut off trigger nozzle
- 45 lpm flow rate
- 30m duty run-time
Hand Pump
- Manual operation
- Semi Rotary fuel pump
- Suction Hose
- Heavy Duty 3/4'' 4 m Delivery hose
- Manual Operating trigger nozzle
- Continuous duty cycle
240v Pump
Electric fuel pump for dispensing diesel
- 240v pump, 4 m cable c/w battery clips
- Heavy duty 1'' 4 m delivery hose
- 1.2 m suction hose
- Bypass
- 1'' Automatic shut off trigger nozzle
- 80 lpm flow rate
- 30m duty run-time
110 v Pump
Electric fuel pump for dispensing diesel
- 240v pump, 4 m cable c/w battery clips
- Heavy duty 1'' 4 m delivery hose
- Mechanical Flow Meter
- 1.2 m suction hose
- Bypass
- 1'' Automatic shut off trigger nozzle
- 80 lpm flow rate
- 30m duty run-time
Images for representative purposes only
Western Envirocube Cab 40000 Litre Specification
- Product Code: WT
- Delivery Options: Customer Offloading
- Guarantee: 8 Year Warranty
- Made From: Steel
- Suitable For Fuel: Diesel, Gas Oil, HVO
- Tank Type: Bunded
Western Envirocube Cab 40000 Litre Delivery Information
Our supplier can deliver to mainland UK and Northern Ireland locations but excludes offshore islands and locations and delivery is not included in the tank price
Delivery is a kerbside delivery service only and not a "drop at your door service".
Arrangements must be made by the customer to manoeuvre tanks into position.
Deliveries can be made by articulated lorry and it is the customers' responsibility to ensure safe and adequate access for large lorries plus off loading facilities at the delivery address.
Off loading of heavy items should be made by fork lift or similar heavy lifting equipment
Tanks cannot be left without a customer signature
Western Envirocube Cab 40000 Litre Tank Compliance
Envirocube Cab static 110% bunded fuel tank
Built to BS799 Part 5 & to comply with PPG2 Regulations 110% bunded fuel storage tank to comply with PPG2 (Pollution Prevention Guidelines) Regulations.
Manufactured to BS799 Part 5- Specification for Oil Storage Tanks
Optional MSBFS2018:3
