Western ABBI 1940 Litre Twin Axle Steel highway Tow Diesel Bowser
Product Ref: H20ART
Lead time approx. 3 - 4 working days
Home Delivery
United Kingdom mainland delivery from FREE ex VAT
FREE Delivery to Mainland UK, Customer Offload - Postcode Exclusions Apply
You may also need:
login to saveWestern ABBI 1940 Litre Twin Axle Steel highway Tow Diesel Bowser What is a bunded tank?
A bunded tank consists of a 'tank within a tank'.
The inner tank is the primary storage vessel, whilst the outer tank acts as a failsafe.
In the event of a spill, surplus fuel will safely and securely be stored within the outer tank and an environmental pollution incident will be averted.
Western ABBI 1940 Litre Twin Axle Steel highway Tow Diesel Bowser Downloadable Documents
Western ABBI Highway Tow Data SheetWestern ABBI 1940 Litre Twin Axle Steel highway Tow Diesel Bowser Description

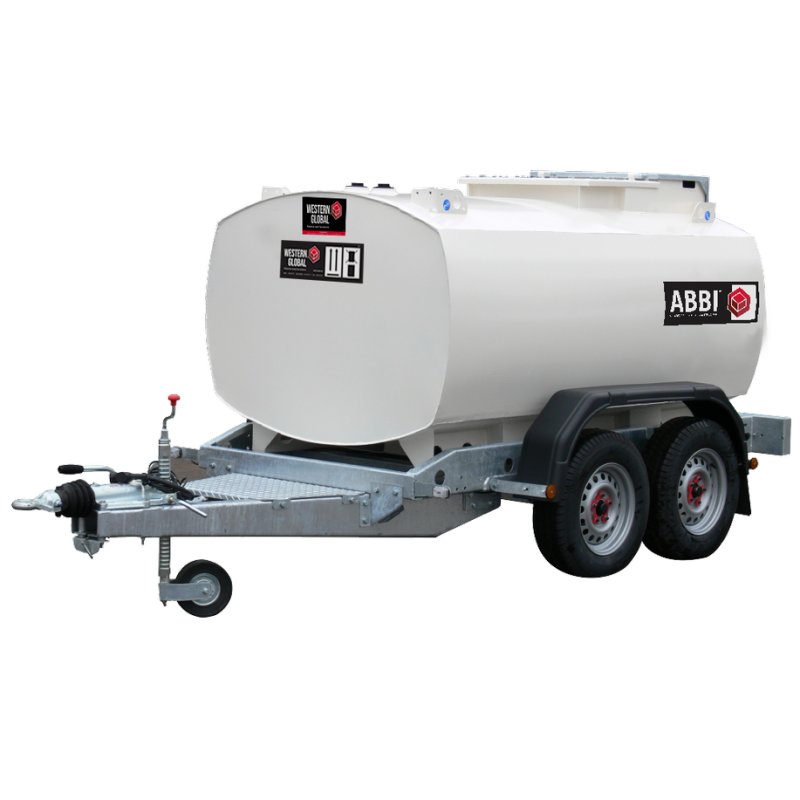

Western ABBI H20ART 1940 Litre Twin Axle Steel Bunded Highway Tow Diesel Bowser
The Abbi highway is a safe and reliable fuel storage solution for any location that requires quick refuelling of any type of construction or auxiliary equipment. Abbi tanks can easily transport fuel to any given location,offering ultimate convenience to on-road transportation.
The Abbi highway tow is mounted on a type approved highway trailer fitted with European specified lighting and under- gear. This towable unit offers fuel transport convenience, allowing you to travel at ease between work sites and depots
Due to its highway approved design, this range is ideal for road work and work sites that require fuel transportation across highways. Abbi highway tanks can be towed and quickly moved to machinery, vehicles, generators and any other equipment
We have a range of pump options for the Western ABBI's including:
- 12v pump kit including 4 m delivery hose and manual nozzle
- K2 hand pump kit with 4 m delivery hose and manual nozzle
- There are other options available, including 24v pumps, 240v pumps, 110v pumps, digital flow meters and filters. Please enquire for details.
Key Benefits of Western ABBI
- 1940 litre model can be transported full of diesel with ADR driver training and certification
- Full load lifting eyes and internal baffles designed to allow handling of the ABBI full of fuel
- Four way forklift pockets, so the ABBI can be lifted with ease from any side
- Secure lockable access hatch to house pumps (electric or hand), and feed and return connections for up to 1 generator
- Internally baffled to maximise stability and safety when bowser moved when full
- Braked axle and road legal with lighting
ABBI H20ART Specification
- 1 x 3” Fill Cap
- 1 x 2” Fill Cap
- Contents Gauge
- 1” Pump Feed
- Pressure / Vacuum Vent
- Optional Generator Feed & Return Ports
- Pump Bracket
- Tank Inspection Plate
Applications and Uses
Fast Mobile Refuelling
A safe and reliable fuel storage solution for any location that requires quick refuelling of construction or auxiliary equipment.
Limited-Access Work Sites
Due to its mobile design, the ABBI tank can transport fuel to any site - reaching even the most difficult locations. The ABBI can be safely lifted but crane or forklift precisely and quickly.
Small and Short-Term Fuel Requirement
An ideal solution for short term, on site fuel storage. The ABBI can be used as a standby tank or a mobile refueller - offering both applications as one unit.
| Model | H20ART |
| Capacity (Nominal) | 1940 Litres |
| Capacity (safe fill 95%) | 1843 Litres |
| Dimensions (L x W x H) | 4000 x 1870 x 1700mm |
| Weight - Empty | 1100 kg |
| Weight - Full | 2846 kg |
| Design Approvals | UN-IBC |
Pumps Explained
12V Pump
Electric fuel pump for dispensing diesel.
- 12v Pump, 4m cable c/w battery clips
- Heavy duty 3/4'' 4 m delivery hose
- 1.2 m suction hose
- Bypass
- Mechanical flow meter
- 3/4'' Automatic shut off trigger nozzle
- 45 LPM flow rate
- 30 m duty run-time
Hand Pump
- Manual operation
- Semi Rotary fuel pump
- Suction Hose
- Heavy Duty 3/4'' 4 m Delivery hose
- Manual Operating trigger nozzle
- Continuous duty cycle
Western ABBI 1940 Litre Twin Axle Steel highway Tow Diesel Bowser Specification
- Product Code: WG
- Guarantee: 8 Year Warranty
- Made From: Steel
- Suitable For Fuel: Diesel, Gas Oil, Heating Oil
- Tank Shape: Horizontal
- UN Certified / Approved for Transport under ADR: Yes
- Footprint (L+W): 4000mm + 1870mm
Western ABBI 1940 Litre Twin Axle Steel highway Tow Diesel Bowser Installation requirements
This Oil Tank must be installed and maintained in accordance to the current OFTEC guidelines, by an OFTEC Registered Technician or similarly competent person.
Fuel Tank Shop and the manufacturer will not be responsible for oil tank installations which do not comply with these requirements.
OFTEC Base Construction Guidelines (in brief):
- Adequate for the weight of the tank when full
- Non-combustible, imperforate and level
- Constructed of concrete, paving stones or stonework
- Large enough to extend 300mm beyond ALL sides of the tanks
Western ABBI 1940 Litre Twin Axle Steel highway Tow Diesel Bowser Compliancy
Compliant with:
- BS799 part 5
- Oil Pollution Prevention Guidelines (England & Wales) 2001 PPG2 - Above Ground Oil Storage Tanks
- Oil Pollution Prevention Guidelines (England & Wales) 2001 PPG26 – Drum and Intermediate Bulk Container Storage
Western ABBI 1940 Litre Twin Axle Steel highway Tow Diesel Bowser Delivery Information
Tanks:
The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page. Standard tank deliveries are "kerbside" which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.
Tanks Over 2500L – Articulated Lorry – Customer Offload:
These tanks will be delivered on an articulated vehicle (approximately 16.5m long x 2.6m wide x 3m high) which has no offloading on board, it is the customer's responsibility to offload the tank, which may require a telehandler / forklift. Curtain sided vehicles are also used, so please note that if there are obstacles or hanging branches on the road to the delivery site etc, the driver may refuse to drive the vehicle to the customer's location due to the possibility of damaging the vehicle. Please let us know if there are any obstructions before delivery, so we can arrange alternative transport.
18 Tonne Tail Lift HGV
This vehicle is the size of the largest bin lorries (for comparison) and is approximately 8.2m long x 2.6m wide x 4m high, often curtain sided so please note that if there are hanging branches etc, these vehicles will not attempt to drive down due to the possibility of damaging the vehicle and so it is recommended that a smaller vehicle is requested. Tanks will be lowered to the ground but not positioned as this is a kerbside delivery. If a smaller vehicle is required, please email us at sales@fueltankshop.co.uk quoting your order number and name.
HIAB Delivery
HIAB delivery is available but must be requested and there will be an additional cost for this service. If a HIAB delivery is required, please email us at sales@fueltankshop.co.uk quoting your order number and name, and we will come back to you with a price for this service.
Accessories:
Most accessories will be delivered within 1-3 working days (certain products and postcodes may take longer, please check the product page for update to date information). If you require them quicker, we can on occasions offer a next day service (please contact us to discuss). If the item(s) are out of stock, we will advise you of the expected lead time, and you will of course have the opportunity to cancel with a full refund.
Western ABBI 1940 Litre Twin Axle Steel highway Tow Diesel Bowser Returns Information
Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **
All Items must be returned unused, refunds cannot be issued for used or previously installed items.
Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).
If you wish to return goods, please complete the form on this page to provide further information.
Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.
Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.
Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.
